DESCRIPTION

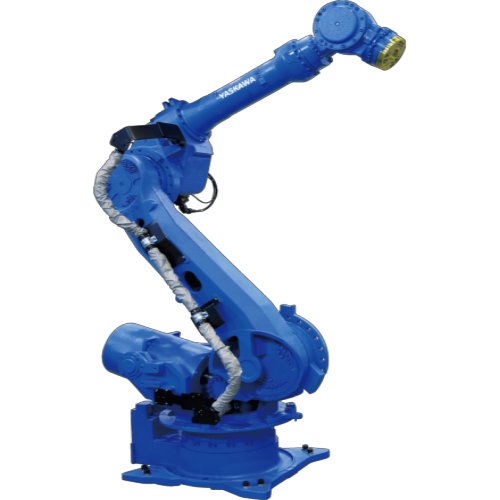

SP235 is an Industrial-Robot from YASKAWA Electric. It is built for Welding. Key figures: 1345 kg, 235 kg payload, 2710 mm reach, 6 degrees of freedom.
Yaskawa Motoman SP235 is a SP Series industrial robot with 235 kg payload and 2710 mm horizontal reach (1345 kg mass, ±0.05 mm repeatability).
FEATURES
- Payload 235 kg
- Horizontal reach 2710 mm
- Vertical reach 3490 mm
- Mass 1345 kg
- Repeatability ±0.05 mm
- 6 controlled axes
- Applications: Spot Welding
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 1345 kg |
|---|---|
| Payload | 235 kg |
| Reach | 2.71 m |
| Repeatability | ±0.05 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Manipulation | High |
| Environment | IP67 |
Videos
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 1345 kg |
|---|---|
| Payload | 235 kg |
| Reach | 2.71 m |
| Repeatability | ±0.05 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Manipulation | High |
| Environment | IP67 |
Images
martti
Image Contributions
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the SP235?
Yaskawa Motoman SP235 is a SP Series industrial robot with 235 kg payload and 2710 mm horizontal reach (1345 kg mass, ±0.05 mm repeatability).
Who makes the SP235?
The SP235 is made by YASKAWA Electric, a robotics company based in Japan.
How much does the SP235 cost?
YASKAWA Electric has not publicly announced pricing for the SP235. You can enquire through RobotAIGeek for current pricing.
What is the SP235 used for?
The SP235 is designed for welding. It is used in automotive and manufacturing settings.
What is the payload capacity of the SP235?
The SP235 has a payload capacity of 235 kg and a reach of 2.71 m.
How much does the SP235 weigh?
The SP235 weighs 1,345 kg.
How many degrees of freedom does the SP235 have?
The SP235 has 6 degrees of freedom.
