DESCRIPTION

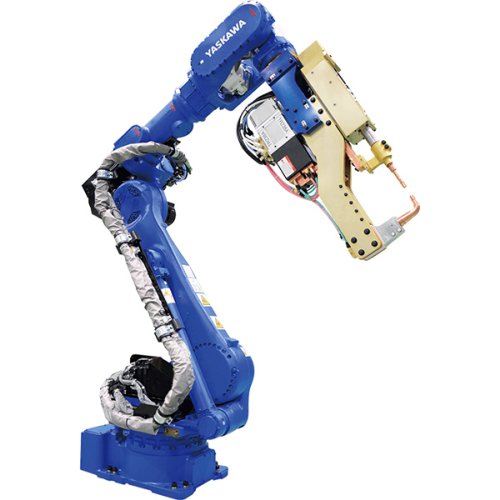

SP225H is an Industrial-Robot from YASKAWA Electric. It is built for Welding. Key figures: 1110 kg, 225 kg payload, 2702 mm reach, 6 degrees of freedom.
Yaskawa Motoman SP225H is a SP Series industrial robot with 225 kg payload and 2702 mm horizontal reach (1110 kg mass, ±0.05 mm repeatability).
FEATURES
- Payload 225 kg
- Horizontal reach 2702 mm
- Vertical reach 3393 mm
- Mass 1110 kg
- Repeatability ±0.05 mm
- 6 controlled axes
- Applications: Dispensing
- Material Removal
- Material Cutting
- Trimming
- Material Handling
- Spot Welding
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 1110 kg |
|---|---|
| Payload | 225 kg |
| Reach | 2.7 m |
| Repeatability | ±0.05 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Manipulation | High |
| Environment | IP67 |
Videos
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 1110 kg |
|---|---|
| Payload | 225 kg |
| Reach | 2.7 m |
| Repeatability | ±0.05 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Manipulation | High |
| Environment | IP67 |
Images
martti
Image Contributions
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the SP225H?
Yaskawa Motoman SP225H is a SP Series industrial robot with 225 kg payload and 2702 mm horizontal reach (1110 kg mass, ±0.05 mm repeatability).
Who makes the SP225H?
The SP225H is made by YASKAWA Electric, a robotics company based in Japan.
How much does the SP225H cost?
YASKAWA Electric has not publicly announced pricing for the SP225H. You can enquire through RobotAIGeek for current pricing.
What is the SP225H used for?
The SP225H is designed for welding. It is used in automotive and manufacturing settings.
What is the payload capacity of the SP225H?
The SP225H has a payload capacity of 225 kg and a reach of 2.7 m.
How much does the SP225H weigh?
The SP225H weighs 1,110 kg.
How many degrees of freedom does the SP225H have?
The SP225H has 6 degrees of freedom.
