DESCRIPTION

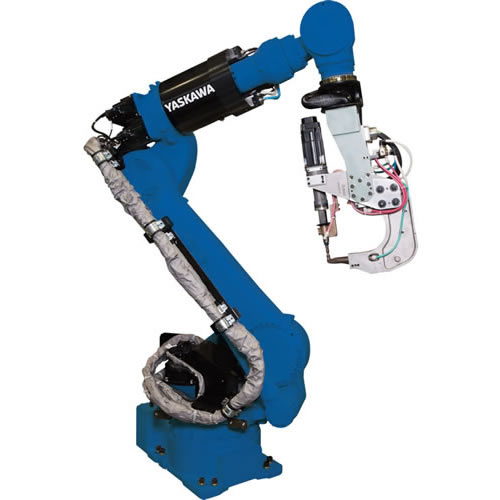

SP210 is an Industrial-Robot from YASKAWA Electric. It is built for Welding. Key figures: 1145 kg, 210 kg payload, 2702 mm reach, 6 degrees of freedom.
Yaskawa Motoman SP210 is a SP Series industrial robot with 210 kg payload and 2702 mm horizontal reach (1145 kg mass, ±0.05 mm repeatability).
FEATURES
- Payload 210 kg
- Horizontal reach 2702 mm
- Vertical reach 3393 mm
- Mass 1145 kg
- Repeatability ±0.05 mm
- 6 controlled axes
- Applications: Spot Welding
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 1145 kg |
|---|---|
| Payload | 210 kg |
| Reach | 2.7 m |
| Repeatability | ±0.05 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Manipulation | High |
| Environment | IP67 |
Videos
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 1145 kg |
|---|---|
| Payload | 210 kg |
| Reach | 2.7 m |
| Repeatability | ±0.05 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Manipulation | High |
| Environment | IP67 |
Images
martti
Image Contributions
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the SP210?
Yaskawa Motoman SP210 is a SP Series industrial robot with 210 kg payload and 2702 mm horizontal reach (1145 kg mass, ±0.05 mm repeatability).
Who makes the SP210?
The SP210 is made by YASKAWA Electric, a robotics company based in Japan.
How much does the SP210 cost?
YASKAWA Electric has not publicly announced pricing for the SP210. You can enquire through RobotAIGeek for current pricing.
What is the SP210 used for?
The SP210 is designed for welding. It is used in automotive and manufacturing settings.
What is the payload capacity of the SP210?
The SP210 has a payload capacity of 210 kg and a reach of 2.7 m.
How much does the SP210 weigh?
The SP210 weighs 1,145 kg.
How many degrees of freedom does the SP210 have?
The SP210 has 6 degrees of freedom.
