DESCRIPTION
SP165 is an Industrial-Robot from YASKAWA Electric. It is built for Welding. Key figures: 1020 kg, 165 kg payload, 2702 mm reach, 6 degrees of freedom.

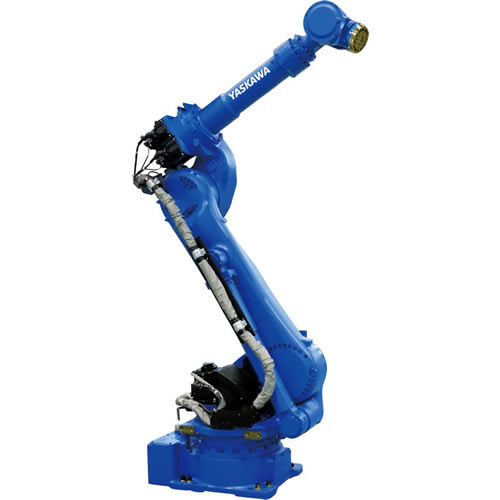

Yaskawa Motoman SP165 is a SP Series industrial robot with 165 kg payload and 2702 mm horizontal reach (1020 kg mass, ±0.05 mm repeatability).
FEATURES
- Payload 165 kg
- Horizontal reach 2702 mm
- Vertical reach 3393 mm
- Mass 1020 kg
- Repeatability ±0.05 mm
- 6 controlled axes
- Applications: Spot Welding
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 1020 kg |
|---|---|
| Payload | 165 kg |
| Reach | 2.7 m |
| Repeatability | ±0.05 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Manipulation | High |
| Environment | IP67 |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 1020 kg |
|---|---|
| Payload | 165 kg |
| Reach | 2.7 m |
| Repeatability | ±0.05 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Manipulation | High |
| Environment | IP67 |
Images
martti
Image Contributions
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the SP165?
Yaskawa Motoman SP165 is a SP Series industrial robot with 165 kg payload and 2702 mm horizontal reach (1020 kg mass, ±0.05 mm repeatability).
Who makes the SP165?
The SP165 is made by YASKAWA Electric, a robotics company based in Japan.
How much does the SP165 cost?
YASKAWA Electric has not publicly announced pricing for the SP165. You can enquire through RobotAIGeek for current pricing.
What is the SP165 used for?
The SP165 is designed for welding. It is used in automotive and manufacturing settings.
What is the payload capacity of the SP165?
The SP165 has a payload capacity of 165 kg and a reach of 2.7 m.
How much does the SP165 weigh?
The SP165 weighs 1,020 kg.
How many degrees of freedom does the SP165 have?
The SP165 has 6 degrees of freedom.
