DESCRIPTION
Silkworm is an Industrial-Robot from E80 Group. It is built for Packaging, palletizing, Pallet stretch wrapping.

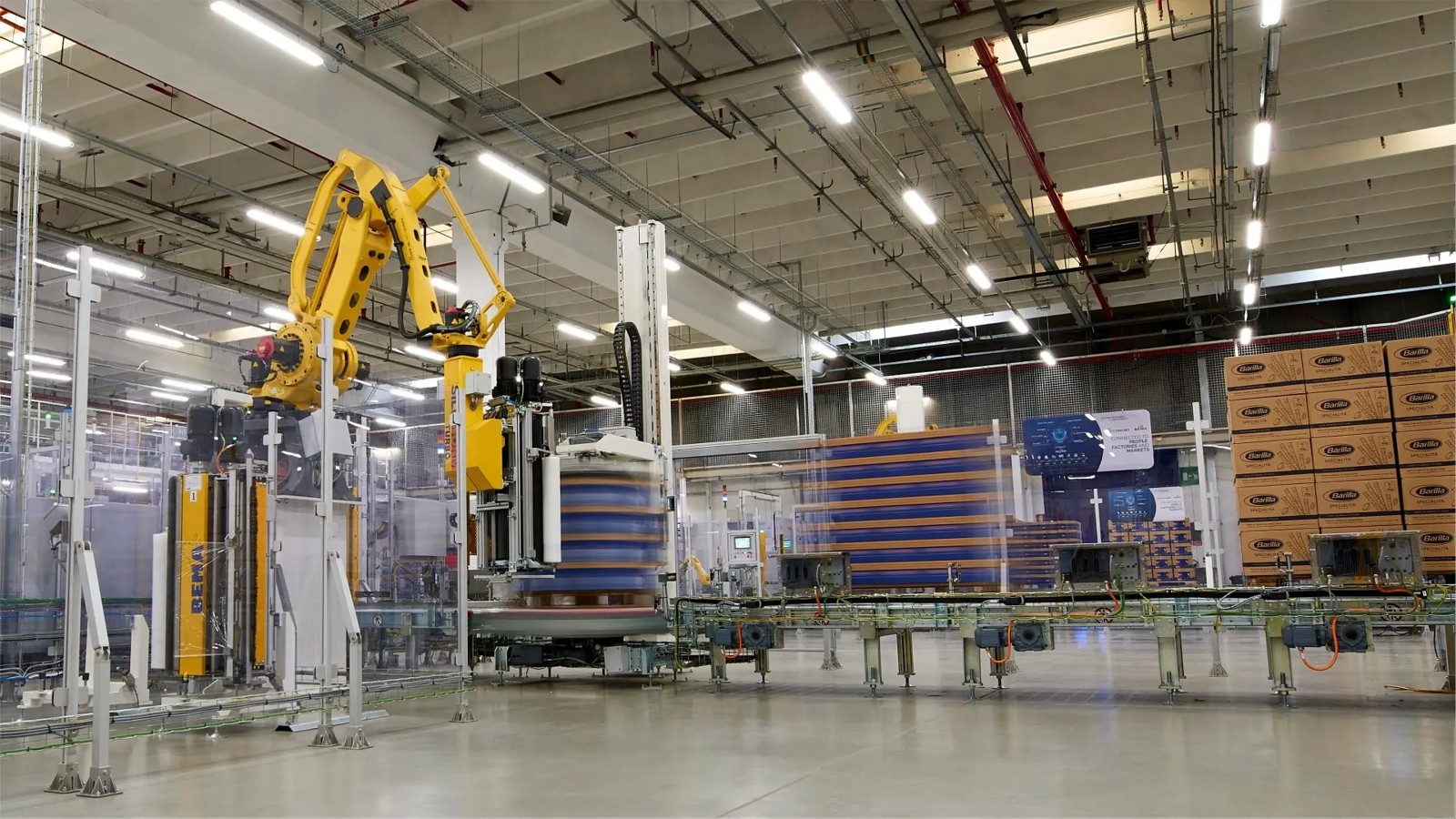

Silkworm is E80 Group's robotic stretch-wrapping system for pallets at the end of production lines. It combines robotics with a 1,000 mm-high, 60 kg film reel while the load rotates, which E80 says makes it fast, compact and redundant, and wraps full diagonals for better load stability. Two wrapping heads change over automatically - a patented design - so wrapping continues while the operator replaces a reel safely outside the guards, giving eight hours of autonomy from a single system. The tall reel cuts the number of wrapping turns and reel changes compared with 500 mm reels, and E80 cites up to 30% less film than manual or traditional wrappers.
FEATURES
- Robotic stretch wrapping with a 1,000 mm-high, 60 kg film reel and rotating load
- Two wrapping heads with automatic, patented head changeover
- 8 hours of autonomy per system
- Reel replaced safely outside the guards without stopping
- Full diagonal wrapping for load stability
- less layer sliding
- Up to 30% less film than manual or traditional wrappers
- fewer reel changes than 500 mm reels
- Integrated with E80 palletizers, labelers and LGVs via SM.I.LE80
TECHNICAL SPECIFICATIONS
Verified| Mobility | |
| Movement Type | Stationary |
|---|---|
| Environment | End of production lines |
| Actuators | Robotic wrapping head with twin automatic head changeover; rotating load |
| Sensing & Compute | |
| Software / AI | SM.I.LE80 |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Mobility | |
| Movement Type | Stationary |
|---|---|
| Environment | End of production lines |
| Actuators | Robotic wrapping head with twin automatic head changeover; rotating load |
| Sensing & Compute | |
| Software / AI | SM.I.LE80 |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Silkworm?
Silkworm is E80 Group's robotic stretch-wrapping system for pallets at the end of production lines. It combines robotics with a 1,000 mm-high, 60 kg film reel while the load rotates, which E80 says makes it fast, compact and redundant, and wraps full diagonals for better load stability.
Who makes the Silkworm?
The Silkworm is made by E80 Group, a robotics company based in Italy.
How much does the Silkworm cost?
E80 Group has not publicly announced pricing for the Silkworm. You can enquire through RobotAIGeek for current pricing.
What is the Silkworm used for?
The Silkworm is designed for packaging, palletizing, and pallet stretch wrapping. It is used in warehouse & logistics and manufacturing settings.
