DESCRIPTION

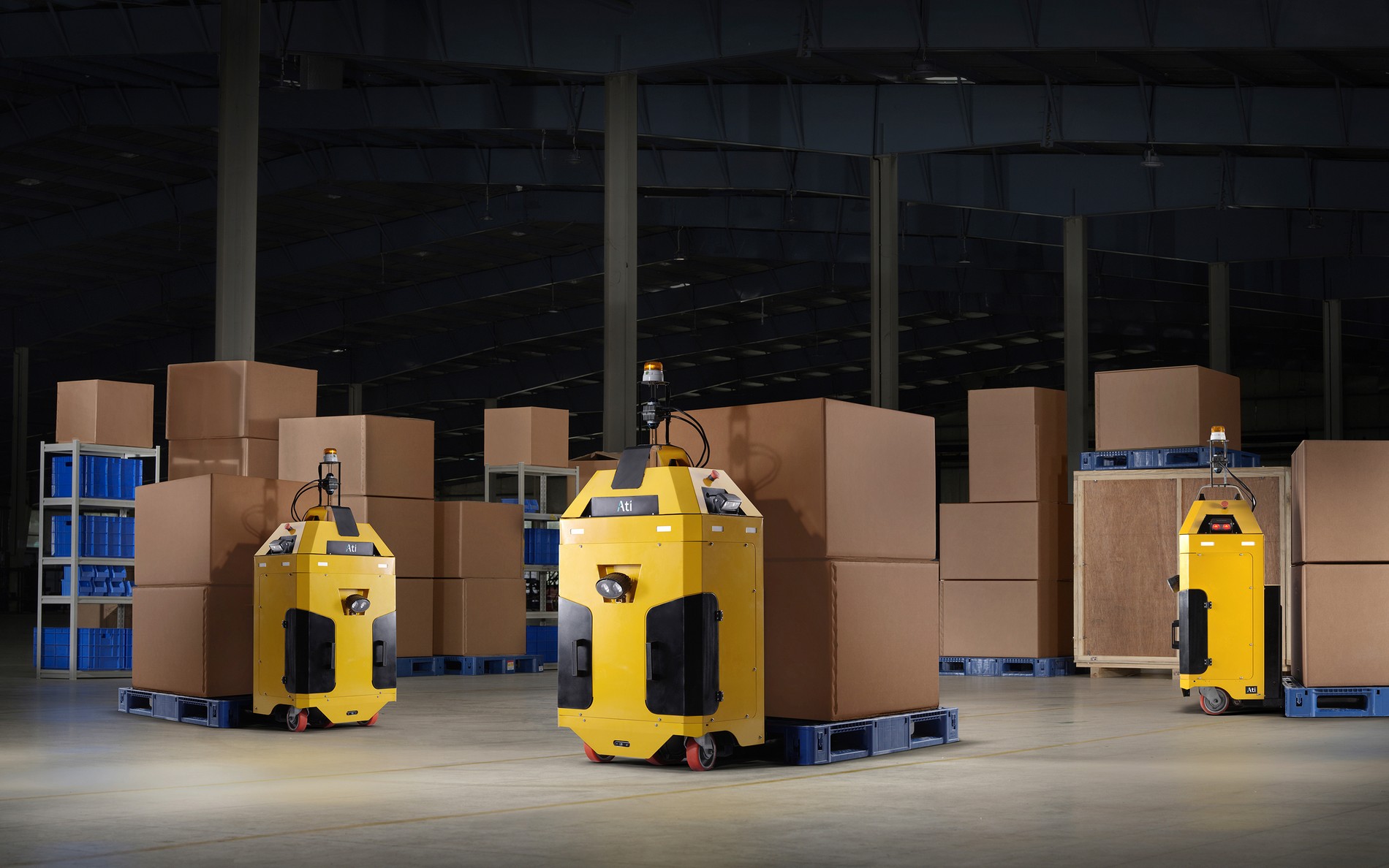

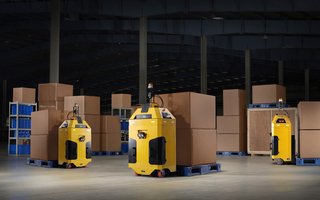

The Sherpa Pivot is a maneuverable, modular AMR with mono fork and trailing unit attachments, built for adaptable material transport in dynamic industrial environments, handling up to 1,100 lbs (500 kg).
FEATURES
- Tugs up to 1,100 lbs (500 kg)
- Modular, interchangeable attachments - mono fork and trailing unit
- Up to 1.5 m/s
- Natural navigation - no facility infrastructure changes required

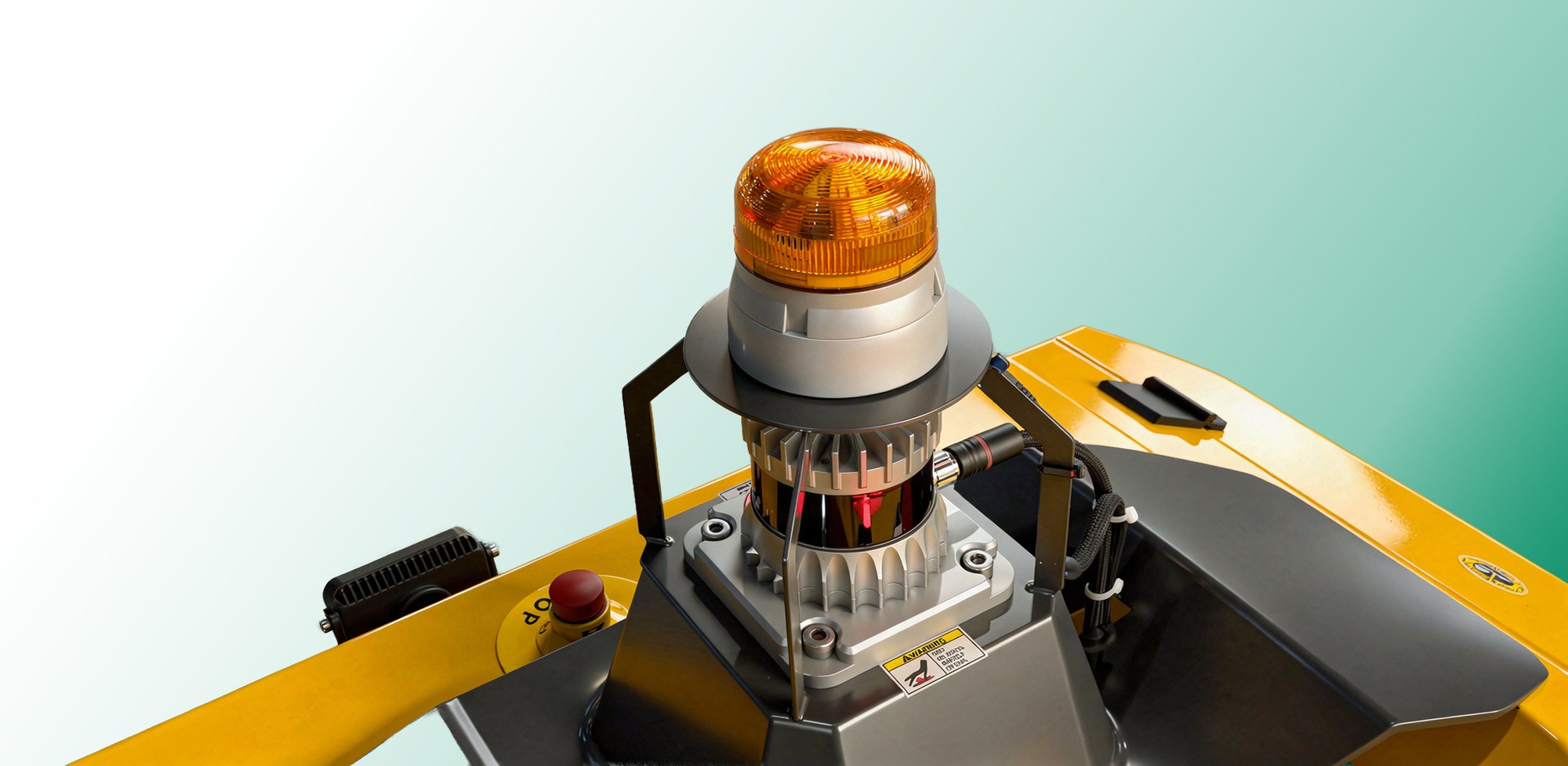

- 3D LiDAR and camera sensing
- 2 m turning radius
- works aisles from 1.5 m
- 75 mm ground clearance, climbs gradients up to 2%
- Swappable 51V NMC Li-Ion pack, 55 Ah - 8 hour run, 2 hour charge
- IPX4, rated +5 to +45 degrees C
- ISO 3691-4 safety certified
- 1,486 x 578 x 1,087 mm, 120 kg
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 120 kg |
|---|---|
| Payload | 500 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Manipulation | Mid |
| Environment | IPX4, 5.0°C to 45.0°C |
| Power | |
| Battery Life | 8 hours |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 120 kg |
|---|---|
| Payload | 500 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Manipulation | Mid |
| Environment | IPX4, 5.0°C to 45.0°C |
| Power | |
| Battery Life | 8 hours |
Images
martti
martti
martti
martti
martti
martti
martti
martti
martti
martti
martti
marttiImage Contributions
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Sherpa Pivot?
The Sherpa Pivot is a maneuverable, modular AMR with mono fork and trailing unit attachments, built for adaptable material transport in dynamic industrial environments, handling up to 1,100 lbs (500 kg).
Who makes the Sherpa Pivot?
The Sherpa Pivot is made by Ati Motors Pvt. Ltd., a robotics company based in India.
How much does the Sherpa Pivot cost?
Ati Motors Pvt. Ltd. has not publicly announced pricing for the Sherpa Pivot. You can enquire through RobotAIGeek for current pricing.
What is the Sherpa Pivot used for?
The Sherpa Pivot is designed for delivery. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the Sherpa Pivot?
The Sherpa Pivot has a payload capacity of 500 kg.
How much does the Sherpa Pivot weigh?
The Sherpa Pivot weighs 120 kg.
How fast is the Sherpa Pivot?
The Sherpa Pivot can move at speeds of up to 5.4 km/h.
What is the battery life of the Sherpa Pivot?
The Sherpa Pivot runs for 8 hours on a charge.
