DESCRIPTION

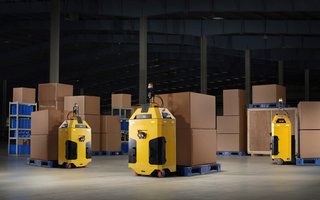

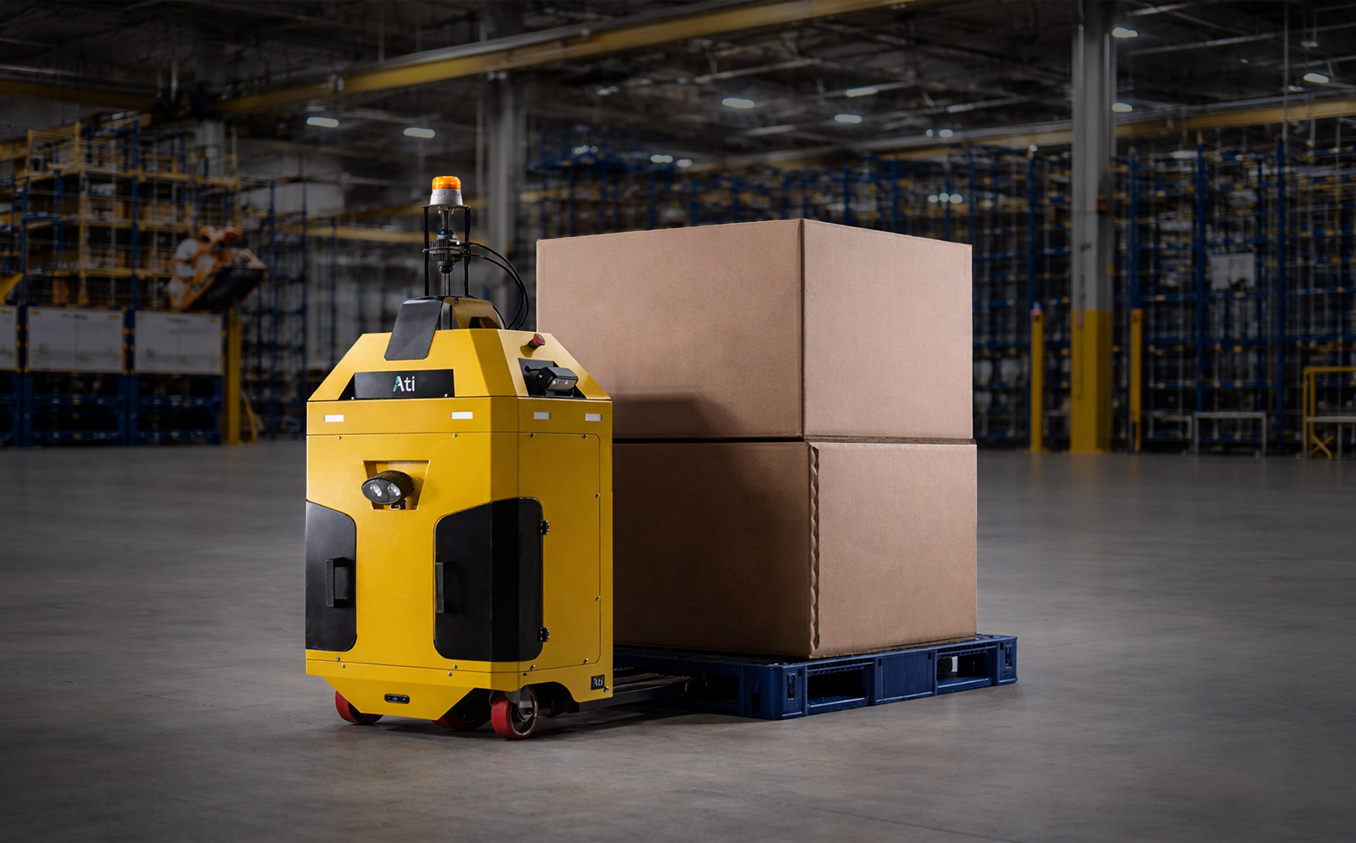

The Sherpa Pallet Mover streamlines warehouse and manufacturing operations by autonomously lifting and transporting pallets up to 3,300 lbs (1,500 kg) using LiDAR, cameras, and dynamic obstacle avoidance.
FEATURES
- Lifts and transports pallets up to 3,300 lbs (1,500 kg)
- 100 mm lifting stroke
- Positions to +/-20 mm and +/-2 degrees
- Handles pallets up to 1,360 x 1,200 mm
- Zero-radius in-place turning for tight aisles
- Up to 1.2 m/s

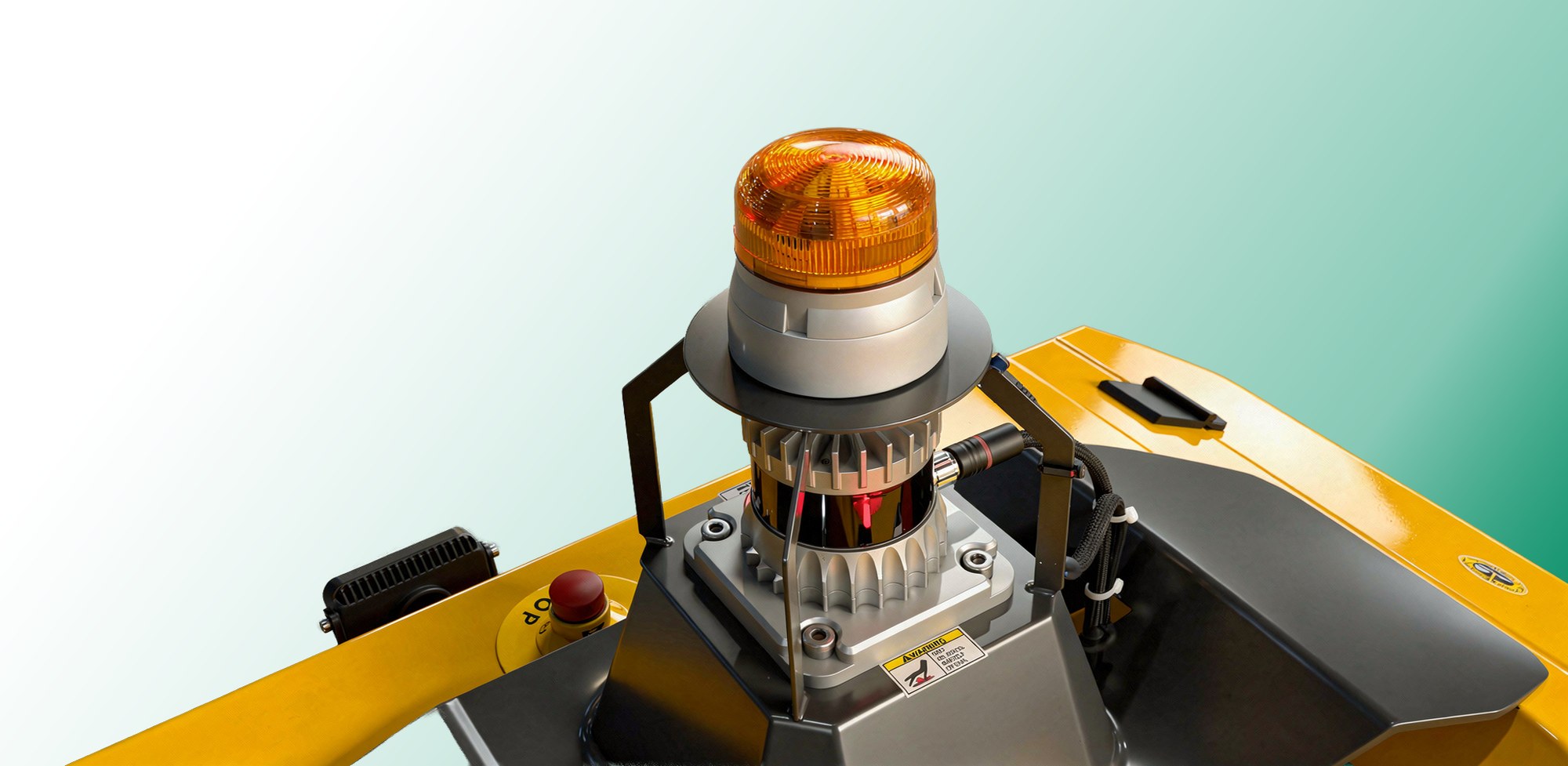

- 3D LiDAR, 2D LiDAR and camera fusion for dynamic obstacle avoidance
- Natural navigation - no facility infrastructure changes required
- Swappable 51V NMC Li-Ion pack, 55 Ah - 8 hour run, 2 hour charge
- Needs 1.8 m aisles running straight, 2.5 m to dock
- ISO 3691-4 safety certified
- Integrates with ERP, WMS and MES
- OTA updates via Ati Fleet Manager
- 1,700 x 800 x 1,600 mm, 450 kg
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 450 kg |
|---|---|
| Payload | 1500 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 4.32 km/h |
| Manipulation | Mid |
| Environment | 5.0°C to 45.0°C |
| Power | |
| Battery Life | 8 hours |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 450 kg |
|---|---|
| Payload | 1500 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 4.32 km/h |
| Manipulation | Mid |
| Environment | 5.0°C to 45.0°C |
| Power | |
| Battery Life | 8 hours |
Images
martti
martti
martti
martti
martti
martti
martti
martti
martti
martti
martti
marttiImage Contributions
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Sherpa Pallet Mover?
The Sherpa Pallet Mover streamlines warehouse and manufacturing operations by autonomously lifting and transporting pallets up to 3,300 lbs (1,500 kg) using LiDAR, cameras, and dynamic obstacle avoidance.
Who makes the Sherpa Pallet Mover?
The Sherpa Pallet Mover is made by Ati Motors Pvt. Ltd., a robotics company based in India.
How much does the Sherpa Pallet Mover cost?
Ati Motors Pvt. Ltd. has not publicly announced pricing for the Sherpa Pallet Mover. You can enquire through RobotAIGeek for current pricing.
What is the Sherpa Pallet Mover used for?
The Sherpa Pallet Mover is designed for delivery. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the Sherpa Pallet Mover?
The Sherpa Pallet Mover has a payload capacity of 1,500 kg.
How much does the Sherpa Pallet Mover weigh?
The Sherpa Pallet Mover weighs 450 kg.
How fast is the Sherpa Pallet Mover?
The Sherpa Pallet Mover can move at speeds of up to 4.32 km/h.
What is the battery life of the Sherpa Pallet Mover?
The Sherpa Pallet Mover runs for 8 hours on a charge.
