DESCRIPTION
Shenhao L7-T2 Tracked Inspection Robot is a Mobile-Robots from Shenhao Technology. It is built for Inspection, Monitoring, Substation inspection in extremely cold regions. Key figures: 360 min runtime.
The L7-T2 exists because inspection robots stop working in real cold. Shenhao presents it as the first domestic robot suitable for inspection in the ice and snow of extremely cold regions at -40°C, and the engineering is aimed squarely at the three things that fail there: batteries lose endurance, sensors lose accuracy, and wheels lose grip. It answers each in turn — a tracked chassis instead of wheels to stop slippage and to hold navigation when snow changes the shape of the ground, cold-resistant sensors and components with dedicated software algorithms to keep infrared temperature measurement and visible-light recognition accurate at -40°C, and a battery that still gives more than five hours there, rising to eight or more in ordinary conditions. It climbs 150 mm steps at 20 degrees or more, positions to ±10 mm and reads dial meters to better than 5% error.
FEATURES
- Tracked chassis rated for inspection in ice and snow at -40 degrees Celsius
- Battery life of 6 hours or more at -40 to -25 degrees Celsius, and 8 hours or more from -25 to +50 degrees Celsius
- Cold-resistant sensors and components with dedicated software algorithms
- Reliable infrared temperature measurement and visible light recognition maintained at -40 degrees Celsius
- Stable navigation on icy and snowy ground, addressing tyre slippage, positioning loss and snow-covered observation deviation
- Climbing angle 20 degrees or more, able to climb 150 mm steps
- Maximum operating speed 1 m/s
- positioning accuracy ±10 mm
- Infrared temperature measurement accuracy ±2°C or 2%
- Reading error of dial type meters under 5%
- Autonomous navigation, sound detection and self-charging
- Security protection functions
TECHNICAL SPECIFICATIONS
Verified| Mobility | |
| Movement Type | Other |
|---|---|
| Speed | 3.6 km/h |
| Environment | Extremely cold ice and snow environments down to -40 degrees Celsius, and up to +50 degrees Celsius |
| Actuators | Tracked chassis with cold-resistant components |
| Power | |
| Battery Life | ≥6 h at -40°C; ≥8 h otherwise |
| Sensing & Compute | |
| Sensors | visible light camera, infrared thermal imager, microphone |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Mobility | |
| Movement Type | Other |
|---|---|
| Speed | 3.6 km/h |
| Environment | Extremely cold ice and snow environments down to -40 degrees Celsius, and up to +50 degrees Celsius |
| Actuators | Tracked chassis with cold-resistant components |
| Power | |
| Battery Life | ≥6 h at -40°C; ≥8 h otherwise |
| Sensing & Compute | |
| Sensors | visible light camera, infrared thermal imager, microphone |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Shenhao L7-T2 Tracked Inspection Robot?
The L7-T2 exists because inspection robots stop working in real cold. Shenhao presents it as the first domestic robot suitable for inspection in the ice and snow of extremely cold regions at -40°C, and the engineering is aimed squarely at the three things that fail there: batteries lose endurance, sensors lose accuracy…
Who makes the Shenhao L7-T2 Tracked Inspection Robot?
The Shenhao L7-T2 Tracked Inspection Robot is made by Shenhao Technology, a robotics company based in China.
How much does the Shenhao L7-T2 Tracked Inspection Robot cost?
Shenhao Technology has not publicly announced pricing for the Shenhao L7-T2 Tracked Inspection Robot. You can enquire through RobotAIGeek for current pricing.
What is the Shenhao L7-T2 Tracked Inspection Robot used for?
The Shenhao L7-T2 Tracked Inspection Robot is designed for inspection, monitoring, substation inspection in extremely cold regions, and ice and snow environment monitoring. It is used in energy, manufacturing, and security & patrol settings.
How fast is the Shenhao L7-T2 Tracked Inspection Robot?
The Shenhao L7-T2 Tracked Inspection Robot can move at speeds of up to 3.6 km/h.
What is the battery life of the Shenhao L7-T2 Tracked Inspection Robot?
The Shenhao L7-T2 Tracked Inspection Robot runs for ≥6 h at -40°C; ≥8 h otherwise on a charge.
COMPARE WITH SIMILAR ROBOTS
See how this robot stacks up against its closest alternatives

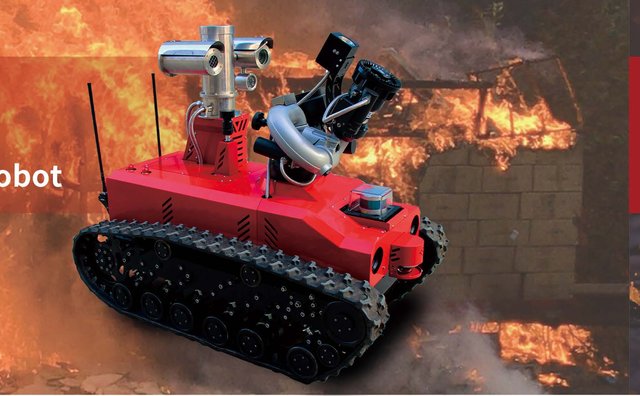

- Shenhao L7-T2 Tracked Inspection Robot vs Guoxing RXR-MC80BD
- Shenhao L7-T2 Tracked Inspection Robot vs Guoxing RXR-C6BD
- Shenhao L7-T2 Tracked Inspection Robot vs Guoxing RXR-M80D-13KT
- Shenhao L7-T2 Tracked Inspection Robot vs Guoxing RXR-M40D-11KT

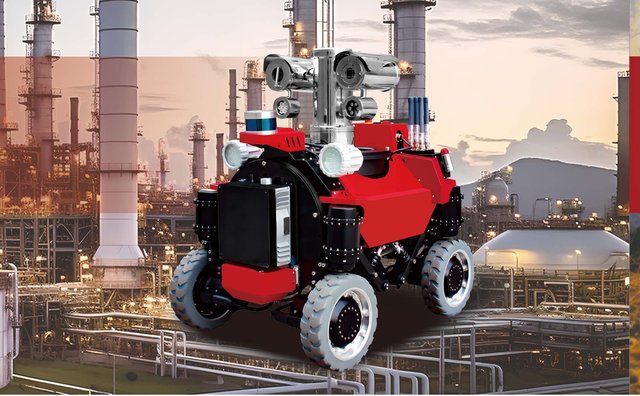

- Shenhao L7-T2 Tracked Inspection Robot vs Guoxing XH1000
