DESCRIPTION
SAFELOG XS1 core is a Mobile-Robots from SAFELOG. It is built for Intralogistics, Material-Handling, Transport. Key figures: 41 kg, 270 min runtime, 85 kg payload.

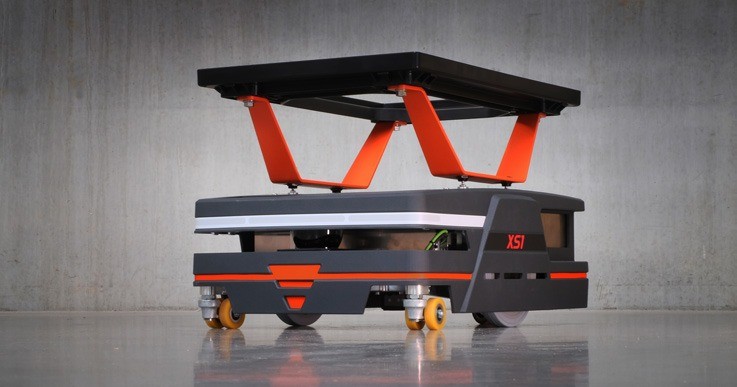

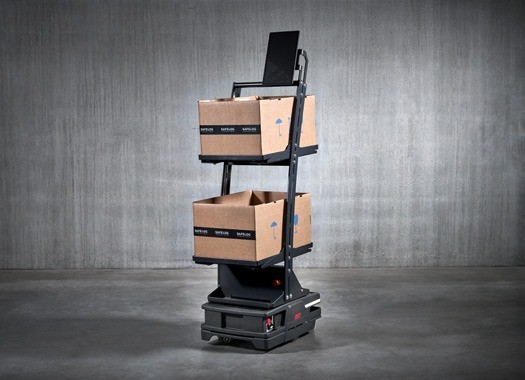

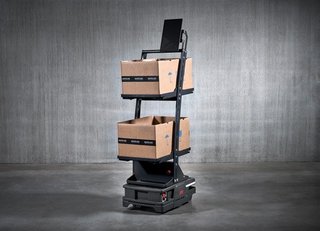

The XS1 core is SAFELOG's small, fast transport robot for fulfilment, built to shuttle bins and goods between pick ports and packing stations at up to 4 m/s. Its chassis sits on an oscillating bearing so it can take ramps of 5% as standard and up to 18% with project approval, and its differential drive lets it turn on the spot. It carries up to 85 kg (50 kg on gradients) on customer-specific superstructures - for example bins up to 600 x 400 mm or SAFELOG's IntelliCart - and localizes by odometry and grid codes, with LiDAR optional. Per its datasheet it measures 660 x 450 x 230 mm and weighs 41 kg, positions to +/-5 mm, and runs about 4.5 hours with load (6 hours empty) on a 24 V 21 Ah LiFePO4 battery charged inductively in about 20 minutes.
FEATURES
- Top load 85 kg (50 kg on gradients)
- Speed 0.1-4.0 m/s
- Oscillating chassis: 5% ramps standard, up to 18% by project approval
- Differential drive, turns on the spot
- turning radius 0.8 m
- Localization: odometry and grid codes (LiDAR optional)
- LiFePO4 24 V 21 Ah
- 20 min charge (20-80%)
- 4.5 h driving with load, 6 h without
- Positioning +/-5 mm
- Size 660 x 450 x 230 mm
- 41 kg
- Carries bins up to 600 x 400 mm
- used with the IntelliCart
- CE, FCC and IP54 planned
- Agent-based swarm control (SAFELOG IntelliAgent) over Wi-Fi - no central control station needed
- VDA 5050-ready for third-party fleet managers
- Inductive in-process charging
- LiFePO4 batteries
- Operating range +5 to +35 C
- VDI 2510 floors
- 24/7 operation
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 41 kg |
|---|---|
| Dimensions | L 660 mm × W 450 mm × H 230 mm |
| Payload | 85 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 14.4 km/h |
| Environment | Indoor production and warehouse floors (+5 to 35 C, VDI 2510) |
| Power | |
| Battery Life | 270 min |
| Sensing & Compute | |
| Sensors | safety laser scanner, RFID / grid-code / magnetic-track sensors |
| Connectivity | Wi-Fi; VDA 5050 |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 41 kg |
|---|---|
| Dimensions | L 660 mm × W 450 mm × H 230 mm |
| Payload | 85 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 14.4 km/h |
| Environment | Indoor production and warehouse floors (+5 to 35 C, VDI 2510) |
| Power | |
| Battery Life | 270 min |
| Sensing & Compute | |
| Sensors | safety laser scanner, RFID / grid-code / magnetic-track sensors |
| Connectivity | Wi-Fi; VDA 5050 |
Images
martti
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the SAFELOG XS1 core?
The XS1 core is SAFELOG's small, fast transport robot for fulfilment, built to shuttle bins and goods between pick ports and packing stations at up to 4 m/s.
Who makes the SAFELOG XS1 core?
The SAFELOG XS1 core is made by SAFELOG, a robotics company based in Germany.
How much does the SAFELOG XS1 core cost?
SAFELOG has not publicly announced pricing for the SAFELOG XS1 core. You can enquire through RobotAIGeek for current pricing.
What is the SAFELOG XS1 core used for?
The SAFELOG XS1 core is designed for intralogistics, material-handling, transport, and intralogistics. It is used in automotive, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the SAFELOG XS1 core?
The SAFELOG XS1 core has a payload capacity of 85 kg.
How much does the SAFELOG XS1 core weigh?
The SAFELOG XS1 core weighs 41 kg.
How fast is the SAFELOG XS1 core?
The SAFELOG XS1 core can move at speeds of up to 14.4 km/h.
What is the battery life of the SAFELOG XS1 core?
The SAFELOG XS1 core runs for about 270 minutes on a charge.
