DESCRIPTION
SAFELOG X1 lift 1200 is a Mobile-Robots from SAFELOG. It is built for Intralogistics, Lifting, Material-Handling. Key figures: 210 kg, 102 min runtime, 1200 kg payload.

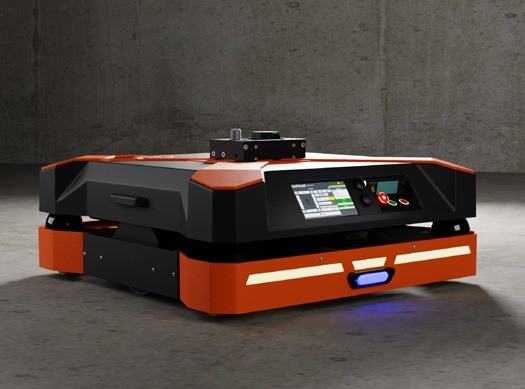

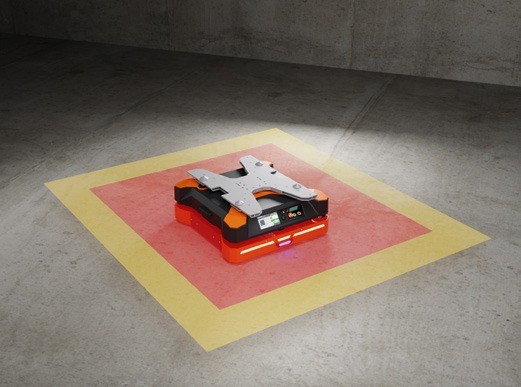

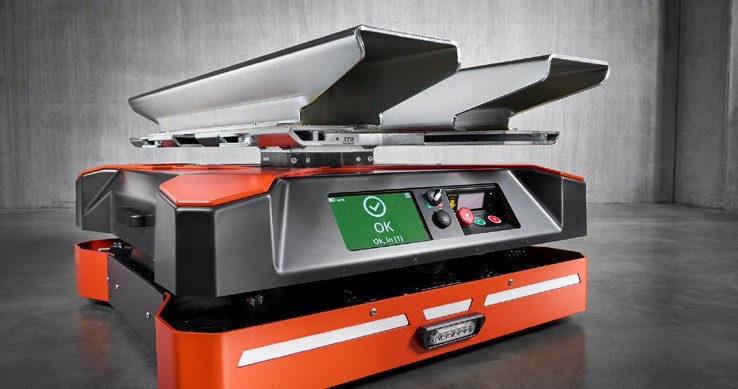

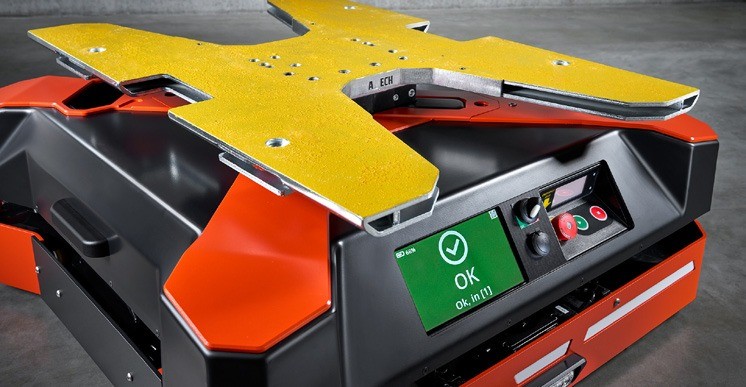

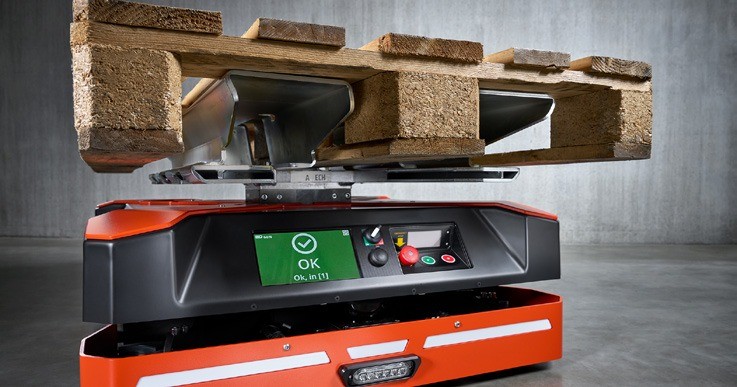

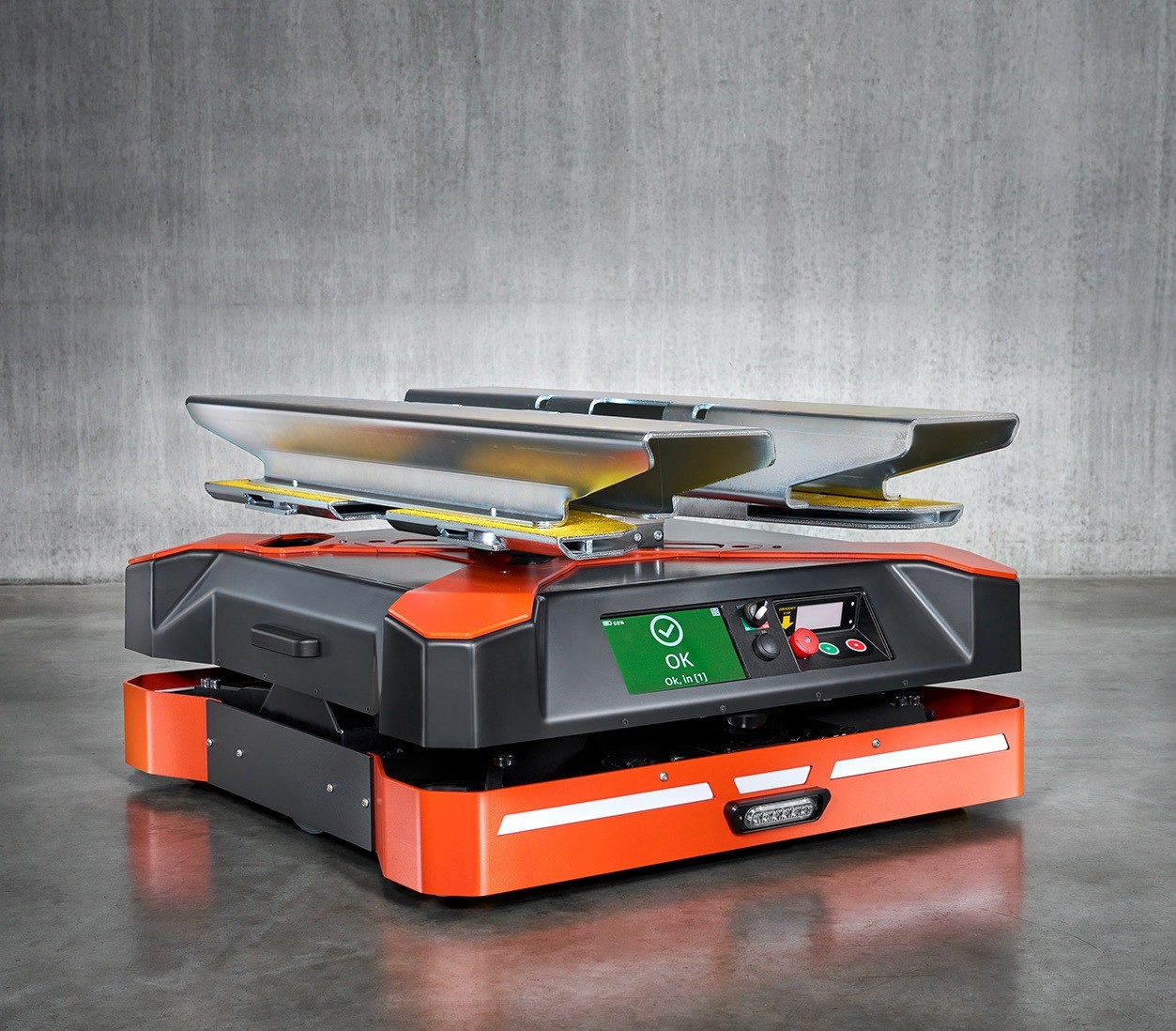

The X1 lift 1200 is the lifting variant of SAFELOG's agile X1 series, a near-square robot with a differential drive that turns on the spot. A central lifting unit with 80 mm stroke, which takes various attachments, picks up pallets, shelves and other load carriers of up to 1,200 kg, and the robot is used mainly as a goods-to-person platform in fulfilment centres and on production lines. Per its datasheet it measures 840 x 820 x 340 mm, weighs 210 kg, drives at up to 1.0 m/s loaded (1.6 m/s empty), positions to +/-5 mm and runs about 1.7 hours under load on a 24 V 21 Ah LiFePO4 battery, or about 3.3 hours with the optional 42 Ah pack.
FEATURES
- Central lifting unit (80 mm) lifts pallets, shelves or other load carriers up to 1,200 kg
- optional adapter plate
- Differential drive, turns on the spot
- turning radius 1 m
- Speed 0.02-1.0 m/s (1.6 m/s empty)
- Localization: magnetic track, RFID, odometry, inductive sensor
- LiDAR, 2D camera or grid codes optional
- LiFePO4 24 V 21 Ah (42 Ah optional)
- 20 min charge
- 1.7 h with load (3.3 h with 42 Ah)
- Size 840 x 820 x 340 mm
- 210 kg
- CE, FCC
- Agent-based swarm control (SAFELOG IntelliAgent) over Wi-Fi - no central control station needed
- VDA 5050-ready for third-party fleet managers
- Inductive in-process charging
- LiFePO4 batteries
- Operating range +5 to +35 C
- VDI 2510 floors
- 24/7 operation
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 210 kg |
|---|---|
| Dimensions | L 840 mm × W 820 mm × H 340 mm |
| Payload | 1200 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.76 km/h |
| Environment | Indoor production and warehouse floors (+5 to 35 C, VDI 2510) |
| Power | |
| Battery Life | 102 min |
| Sensing & Compute | |
| Sensors | safety laser scanner, RFID / grid-code / magnetic-track sensors |
| Connectivity | Wi-Fi; VDA 5050 |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 210 kg |
|---|---|
| Dimensions | L 840 mm × W 820 mm × H 340 mm |
| Payload | 1200 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.76 km/h |
| Environment | Indoor production and warehouse floors (+5 to 35 C, VDI 2510) |
| Power | |
| Battery Life | 102 min |
| Sensing & Compute | |
| Sensors | safety laser scanner, RFID / grid-code / magnetic-track sensors |
| Connectivity | Wi-Fi; VDA 5050 |
Images
martti
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the SAFELOG X1 lift 1200?
The X1 lift 1200 is the lifting variant of SAFELOG's agile X1 series, a near-square robot with a differential drive that turns on the spot.
Who makes the SAFELOG X1 lift 1200?
The SAFELOG X1 lift 1200 is made by SAFELOG, a robotics company based in Germany.
How much does the SAFELOG X1 lift 1200 cost?
SAFELOG has not publicly announced pricing for the SAFELOG X1 lift 1200. You can enquire through RobotAIGeek for current pricing.
What is the SAFELOG X1 lift 1200 used for?
The SAFELOG X1 lift 1200 is designed for intralogistics, lifting, material-handling, and transport. It is used in automotive, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the SAFELOG X1 lift 1200?
The SAFELOG X1 lift 1200 has a payload capacity of 1,200 kg.
How much does the SAFELOG X1 lift 1200 weigh?
The SAFELOG X1 lift 1200 weighs 210 kg.
How fast is the SAFELOG X1 lift 1200?
The SAFELOG X1 lift 1200 can move at speeds of up to 5.76 km/h.
What is the battery life of the SAFELOG X1 lift 1200?
The SAFELOG X1 lift 1200 runs for about 102 minutes on a charge.
