DESCRIPTION
SAFELOG S3 core is a Mobile-Robots from SAFELOG. It is built for Intralogistics, Material-Handling, Transport. Key figures: 150 kg, 90 min runtime, 150 kg payload.
The S3 core is the compact all-rounder of SAFELOG's AGV range: its differential drive and small footprint let it turn on the spot within less than 90 cm, so it suits processes where space is tight. It carries up to 150 kg on variable superstructures, including conveyor tops, and a safety laser scanner with configurable warning and safety fields slows or stops it around people. It follows magnetic tracks, RFID and odometry as standard, with LiDAR or a 2D camera optional, and talks to other robots and systems over Wi-Fi. Per its datasheet it measures 770 x 450 x 220 mm, weighs 150 kg, drives at up to 1.0 m/s loaded (1.6 m/s empty), positions to +/-5 mm and runs about 1.5 hours with load on a 24 V 21 Ah LiFePO4 battery that charges inductively in about 20 minutes.
FEATURES

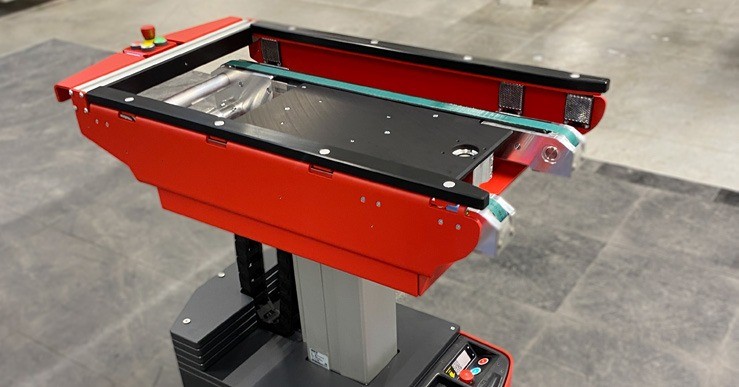

- Top load 150 kg on variable superstructures (conveyor tops possible)
- Turns on the spot in under 90 cm
- turning radius 0.8 m
- Speed 0.02-1.0 m/s (1.6 m/s empty)
- Localization: magnetic track, RFID, odometry, inductive sensor
- LiDAR or 2D camera optional

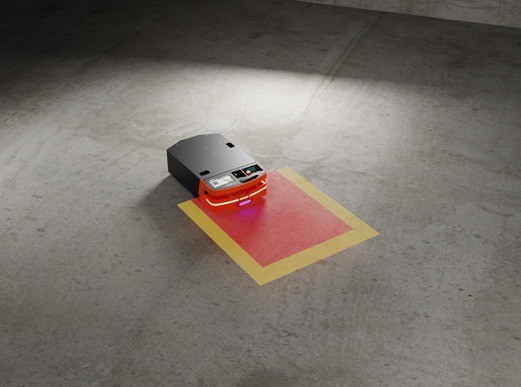

- Safety laser scanner with warning and safety fields
- e-stop
- LED strip
- LiFePO4 24 V 21 Ah
- 20 min charge
- 1.5 h with load, 3 h empty
- Positioning +/-5 mm
- Size 770 x 450 x 220 mm
- 150 kg
- CE, FCC, IP54
- Agent-based swarm control (SAFELOG IntelliAgent) over Wi-Fi - no central control station needed
- VDA 5050-ready for third-party fleet managers
- Inductive in-process charging
- LiFePO4 batteries
- Operating range +5 to +35 C
- VDI 2510 floors
- 24/7 operation
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 150 kg |
|---|---|
| Dimensions | L 770 mm × W 450 mm × H 220 mm |
| Payload | 150 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.76 km/h |
| Environment | Indoor production and warehouse floors (+5 to 35 C, VDI 2510) |
| Power | |
| Battery Life | 90 min |
| Sensing & Compute | |
| Sensors | safety laser scanner, RFID / grid-code / magnetic-track sensors |
| Connectivity | Wi-Fi; VDA 5050 |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 150 kg |
|---|---|
| Dimensions | L 770 mm × W 450 mm × H 220 mm |
| Payload | 150 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.76 km/h |
| Environment | Indoor production and warehouse floors (+5 to 35 C, VDI 2510) |
| Power | |
| Battery Life | 90 min |
| Sensing & Compute | |
| Sensors | safety laser scanner, RFID / grid-code / magnetic-track sensors |
| Connectivity | Wi-Fi; VDA 5050 |
Images
martti
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the SAFELOG S3 core?
The S3 core is the compact all-rounder of SAFELOG's AGV range: its differential drive and small footprint let it turn on the spot within less than 90 cm, so it suits processes where space is tight.
Who makes the SAFELOG S3 core?
The SAFELOG S3 core is made by SAFELOG, a robotics company based in Germany.
How much does the SAFELOG S3 core cost?
SAFELOG has not publicly announced pricing for the SAFELOG S3 core. You can enquire through RobotAIGeek for current pricing.
What is the SAFELOG S3 core used for?
The SAFELOG S3 core is designed for intralogistics, material-handling, transport, and intralogistics. It is used in automotive, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the SAFELOG S3 core?
The SAFELOG S3 core has a payload capacity of 150 kg.
How much does the SAFELOG S3 core weigh?
The SAFELOG S3 core weighs 150 kg.
How fast is the SAFELOG S3 core?
The SAFELOG S3 core can move at speeds of up to 5.76 km/h.
What is the battery life of the SAFELOG S3 core?
The SAFELOG S3 core runs for about 90 minutes on a charge.
