DESCRIPTION
SAFELOG M4 lift is a Mobile-Robots from SAFELOG. It is built for Intralogistics, Lifting, Material-Handling. Key figures: 305 kg, 72 min runtime, 1000 kg payload.

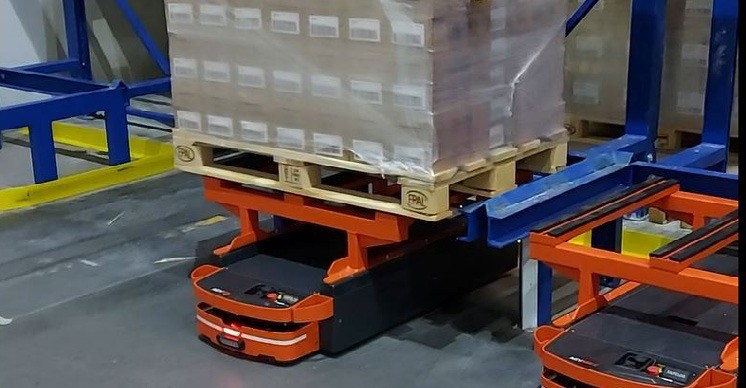

The M4 lift is the lifting version of SAFELOG's M4 transport robot. Two lifting rails along its long sides raise standard racks, elevated pallets and load carriers weighing up to 1,000 kg by 40 mm, spreading the weight over a large lifting surface, after which it carries them through production and logistics areas. Like the M4 core it has a brushless servo motor for high starting torque, a 1 m turning radius and safety laser scanners front and rear. Per its datasheet it measures 1,460 x 600 x 220 mm, weighs 305 kg, drives at up to 1.0 m/s loaded (1.6 m/s empty) and runs about 1.2 hours under load on the standard 24 V 21 Ah LiFePO4 battery, extendable with up to four packs.
FEATURES
- Two lifting rails on the long sides lift racks, elevated pallets and load carriers up to 1,000 kg
- Lifting height 40 mm
- Brushless servo motor
- turning radius 1 m
- Speed 0.02-1.0 m/s (1.6 m/s empty)
- Localization: magnetic track, RFID, odometry

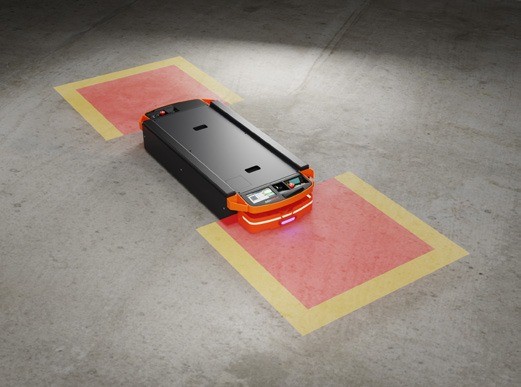

- LiDAR or 2D camera optional
- LiFePO4 24 V 21 Ah standard (up to 84 Ah)
- 20 min charge
- Size 1,460 x 600 x 220 mm
- 305 kg
- CE, FCC
- Agent-based swarm control (SAFELOG IntelliAgent) over Wi-Fi - no central control station needed
- VDA 5050-ready for third-party fleet managers
- Inductive in-process charging
- LiFePO4 batteries
- Operating range +5 to +35 C
- VDI 2510 floors
- 24/7 operation
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 305 kg |
|---|---|
| Dimensions | L 1.46 m × W 600 mm × H 220 mm |
| Payload | 1000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.76 km/h |
| Environment | Indoor production and warehouse floors (+5 to 35 C, VDI 2510) |
| Power | |
| Battery Life | 72 min |
| Sensing & Compute | |
| Sensors | safety laser scanner, RFID / grid-code / magnetic-track sensors |
| Connectivity | Wi-Fi; VDA 5050 |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 305 kg |
|---|---|
| Dimensions | L 1.46 m × W 600 mm × H 220 mm |
| Payload | 1000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.76 km/h |
| Environment | Indoor production and warehouse floors (+5 to 35 C, VDI 2510) |
| Power | |
| Battery Life | 72 min |
| Sensing & Compute | |
| Sensors | safety laser scanner, RFID / grid-code / magnetic-track sensors |
| Connectivity | Wi-Fi; VDA 5050 |
Images
martti
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the SAFELOG M4 lift?
The M4 lift is the lifting version of SAFELOG's M4 transport robot. Two lifting rails along its long sides raise standard racks, elevated pallets and load carriers weighing up to 1,000 kg by 40 mm, spreading the weight over a large lifting surface, after which it carries them through production and logistics areas.
Who makes the SAFELOG M4 lift?
The SAFELOG M4 lift is made by SAFELOG, a robotics company based in Germany.
How much does the SAFELOG M4 lift cost?
SAFELOG has not publicly announced pricing for the SAFELOG M4 lift. You can enquire through RobotAIGeek for current pricing.
What is the SAFELOG M4 lift used for?
The SAFELOG M4 lift is designed for intralogistics, lifting, material-handling, and transport. It is used in automotive, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the SAFELOG M4 lift?
The SAFELOG M4 lift has a payload capacity of 1,000 kg.
How much does the SAFELOG M4 lift weigh?
The SAFELOG M4 lift weighs 305 kg.
How fast is the SAFELOG M4 lift?
The SAFELOG M4 lift can move at speeds of up to 5.76 km/h.
What is the battery life of the SAFELOG M4 lift?
The SAFELOG M4 lift runs for about 72 minutes on a charge.
