DESCRIPTION
SAFELOG M4 core is a Mobile-Robots from SAFELOG. It is built for Intralogistics, Material-Handling, Transport. Key figures: 194 kg, 72 min runtime, 300 kg payload.

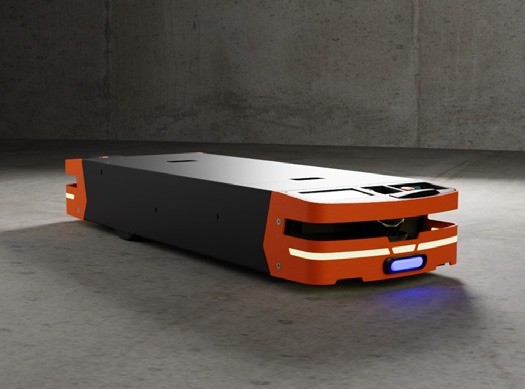

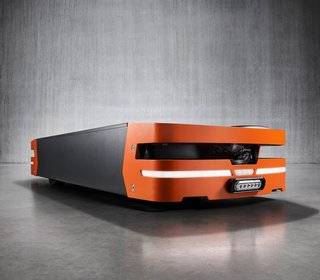

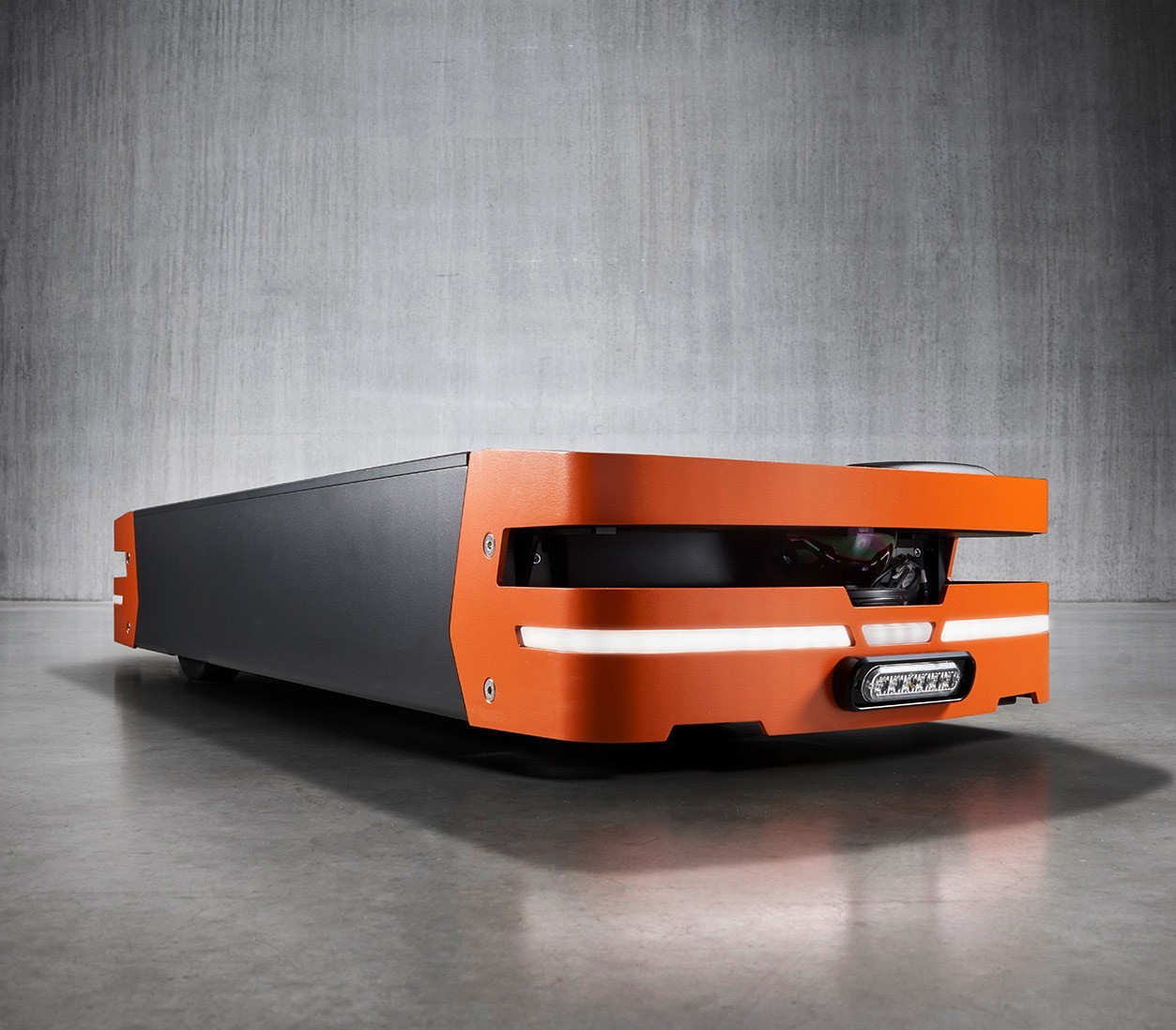

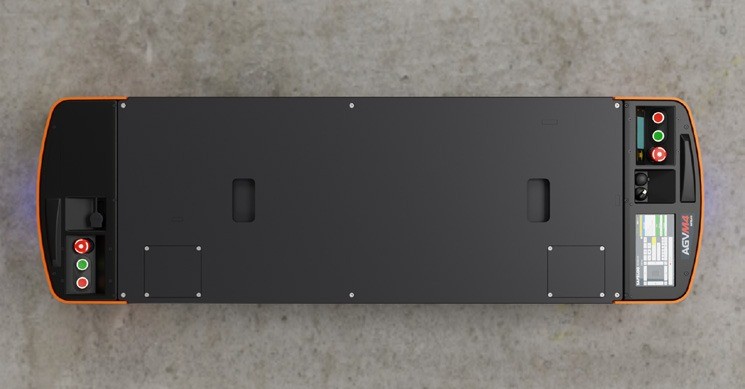

The M4 core is the base model of SAFELOG's mid-size M4 series, a 1.46 m-long transport robot with a brushless servo motor for high starting torque and a 1 m turning radius. On variable superstructures, which can include conveyor technology, it carries top loads of up to 300 kg, and it can also serve as a mobile assembly platform. Safety laser scanners front and rear protect people around it, and it navigates by magnetic track, RFID and odometry, with LiDAR or a 2D camera as options. Per its datasheet it measures 1,460 x 450 x 220 mm, weighs 194 kg, drives at up to 1.0 m/s loaded (1.6 m/s empty) and runs about 1.2 hours under load on its standard 24 V 21 Ah LiFePO4 battery, or up to about 4.7 hours with four packs.
FEATURES
- Top load 300 kg on variable superstructures

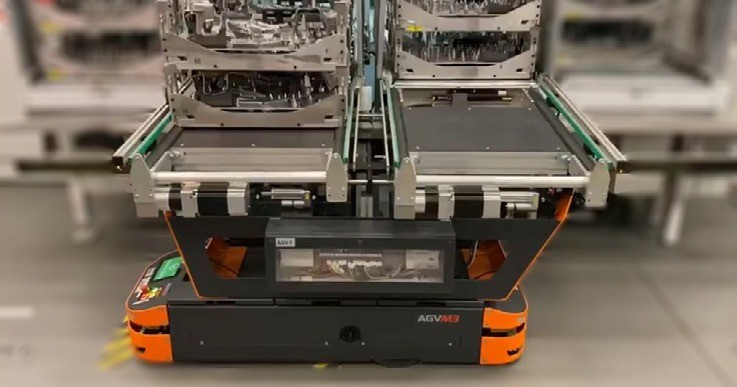

- conveyor tops or assembly-platform use
- Brushless servo motor with high starting torque
- Turning radius 1 m
- Speed 0.02-1.0 m/s (1.6 m/s empty)
- Localization: magnetic track, RFID, odometry, inductive sensor
- LiDAR or 2D camera optional

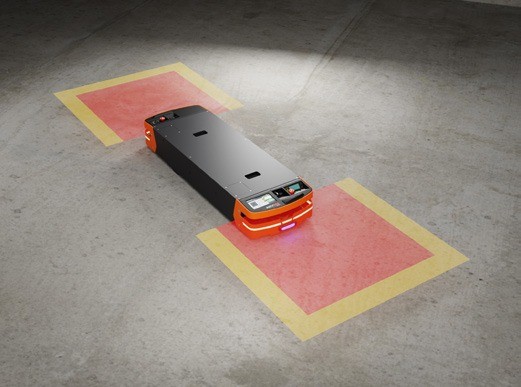

- Front and rear safety laser scanners
- LiFePO4 24 V 21 Ah standard (up to 4 packs / 84 Ah)
- 20 min charge
- 1.2 h with load (up to 4.7 h with 4 packs)
- Size 1,460 x 450 x 220 mm
- 194 kg
- CE, FCC, IP54
- Agent-based swarm control (SAFELOG IntelliAgent) over Wi-Fi - no central control station needed
- VDA 5050-ready for third-party fleet managers
- Inductive in-process charging
- LiFePO4 batteries
- Operating range +5 to +35 C
- VDI 2510 floors
- 24/7 operation
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 194 kg |
|---|---|
| Dimensions | L 1.46 m × W 450 mm × H 220 mm |
| Payload | 300 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.76 km/h |
| Environment | Indoor production and warehouse floors (+5 to 35 C, VDI 2510) |
| Power | |
| Battery Life | 72 min |
| Sensing & Compute | |
| Sensors | safety laser scanner, RFID / grid-code / magnetic-track sensors |
| Connectivity | Wi-Fi; VDA 5050 |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 194 kg |
|---|---|
| Dimensions | L 1.46 m × W 450 mm × H 220 mm |
| Payload | 300 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.76 km/h |
| Environment | Indoor production and warehouse floors (+5 to 35 C, VDI 2510) |
| Power | |
| Battery Life | 72 min |
| Sensing & Compute | |
| Sensors | safety laser scanner, RFID / grid-code / magnetic-track sensors |
| Connectivity | Wi-Fi; VDA 5050 |
Images
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the SAFELOG M4 core?
The M4 core is the base model of SAFELOG's mid-size M4 series, a 1.46 m-long transport robot with a brushless servo motor for high starting torque and a 1 m turning radius.
Who makes the SAFELOG M4 core?
The SAFELOG M4 core is made by SAFELOG, a robotics company based in Germany.
How much does the SAFELOG M4 core cost?
SAFELOG has not publicly announced pricing for the SAFELOG M4 core. You can enquire through RobotAIGeek for current pricing.
What is the SAFELOG M4 core used for?
The SAFELOG M4 core is designed for intralogistics, material-handling, transport, and intralogistics. It is used in automotive, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the SAFELOG M4 core?
The SAFELOG M4 core has a payload capacity of 300 kg.
How much does the SAFELOG M4 core weigh?
The SAFELOG M4 core weighs 194 kg.
How fast is the SAFELOG M4 core?
The SAFELOG M4 core can move at speeds of up to 5.76 km/h.
What is the battery life of the SAFELOG M4 core?
The SAFELOG M4 core runs for about 72 minutes on a charge.
