DESCRIPTION
SAFELOG L2 lift is a Mobile-Robots from SAFELOG. It is built for Intralogistics, Lifting, Material-Handling. Key figures: 329 kg, 102 min runtime, 1500 kg payload.

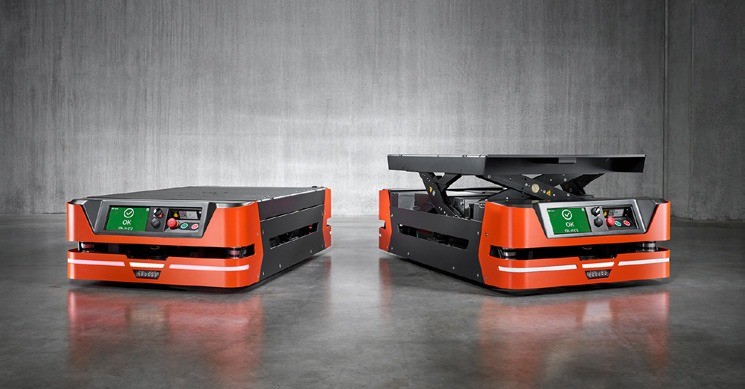

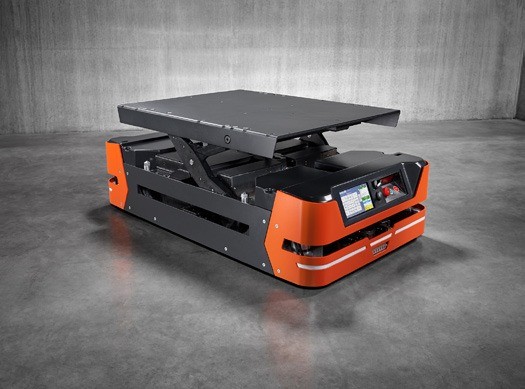

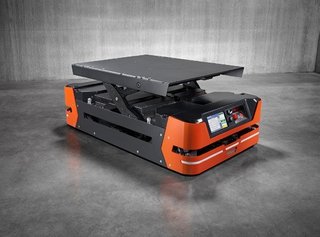

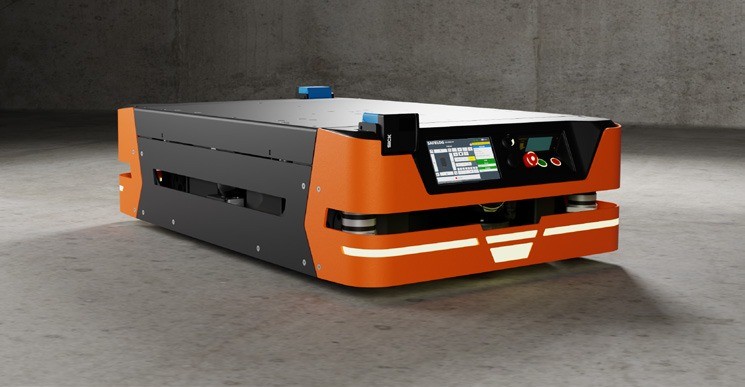

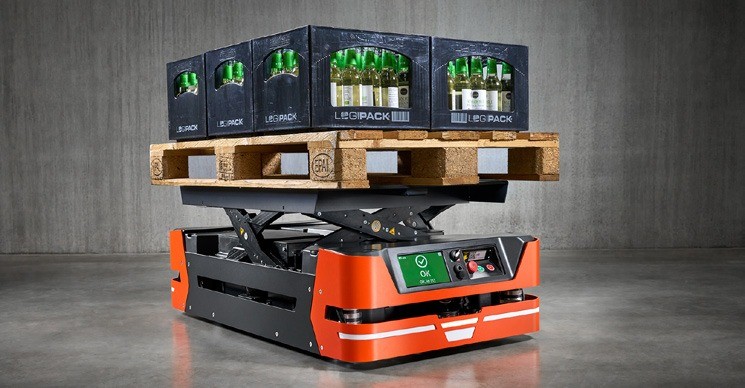

The L2 lift is the lifting version of SAFELOG's heavy L2 series. A scissor lift table with 160 mm of travel actively picks up and carries pallets and pallet cages of up to 1,500 kg, and omnidirectional travel lets it turn on the spot in tight spaces. Per its datasheet it measures 1,200 x 700 x 310 mm, weighs 329 kg, drives at up to 1.0 m/s loaded (1.6 m/s empty), positions to +/-5 mm and runs about 1.7 hours under load on two 24 V 42 Ah LiFePO4 packs, extendable to four.
FEATURES
- Scissor lift table with 160 mm travel lifts and carries up to 1,500 kg
- Omnidirectional travel
- turns on the spot
- Speed 0.02-1.0 m/s (1.6 m/s empty)
- Localization: magnetic track, RFID, inductive sensor
- LiDAR and grid codes optional
- optional 3D camera
- LiFePO4 24 V, 2 x 42 Ah (3-4 packs optional)
- 30 min charge
- 1.7 h with load
- Size 1,200 x 700 x 310 mm
- 329 kg
- CE, FCC
- Agent-based swarm control (SAFELOG IntelliAgent) over Wi-Fi - no central control station needed
- VDA 5050-ready for third-party fleet managers
- Inductive in-process charging
- LiFePO4 batteries
- Operating range +5 to +35 C
- VDI 2510 floors
- 24/7 operation
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 329 kg |
|---|---|
| Dimensions | L 1.2 m × W 700 mm × H 310 mm |
| Payload | 1500 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.76 km/h |
| Environment | Indoor production and warehouse floors (+5 to 35 C, VDI 2510) |
| Power | |
| Battery Life | 102 min |
| Sensing & Compute | |
| Sensors | safety laser scanner, RFID / grid-code / magnetic-track sensors |
| Connectivity | Wi-Fi; VDA 5050 |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 329 kg |
|---|---|
| Dimensions | L 1.2 m × W 700 mm × H 310 mm |
| Payload | 1500 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.76 km/h |
| Environment | Indoor production and warehouse floors (+5 to 35 C, VDI 2510) |
| Power | |
| Battery Life | 102 min |
| Sensing & Compute | |
| Sensors | safety laser scanner, RFID / grid-code / magnetic-track sensors |
| Connectivity | Wi-Fi; VDA 5050 |
Images
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the SAFELOG L2 lift?
The L2 lift is the lifting version of SAFELOG's heavy L2 series. A scissor lift table with 160 mm of travel actively picks up and carries pallets and pallet cages of up to 1,500 kg, and omnidirectional travel lets it turn on the spot in tight spaces.
Who makes the SAFELOG L2 lift?
The SAFELOG L2 lift is made by SAFELOG, a robotics company based in Germany.
How much does the SAFELOG L2 lift cost?
SAFELOG has not publicly announced pricing for the SAFELOG L2 lift. You can enquire through RobotAIGeek for current pricing.
What is the SAFELOG L2 lift used for?
The SAFELOG L2 lift is designed for intralogistics, lifting, material-handling, and pallet-transportation. It is used in automotive, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the SAFELOG L2 lift?
The SAFELOG L2 lift has a payload capacity of 1,500 kg.
How much does the SAFELOG L2 lift weigh?
The SAFELOG L2 lift weighs 329 kg.
How fast is the SAFELOG L2 lift?
The SAFELOG L2 lift can move at speeds of up to 5.76 km/h.
What is the battery life of the SAFELOG L2 lift?
The SAFELOG L2 lift runs for about 102 minutes on a charge.
