DESCRIPTION
SAFELOG GT1 spin is a Mobile-Robots from SAFELOG. It is built for Intralogistics, Lifting, Material-Handling. Key figures: 269 kg, 222 min runtime, 1300 kg payload.

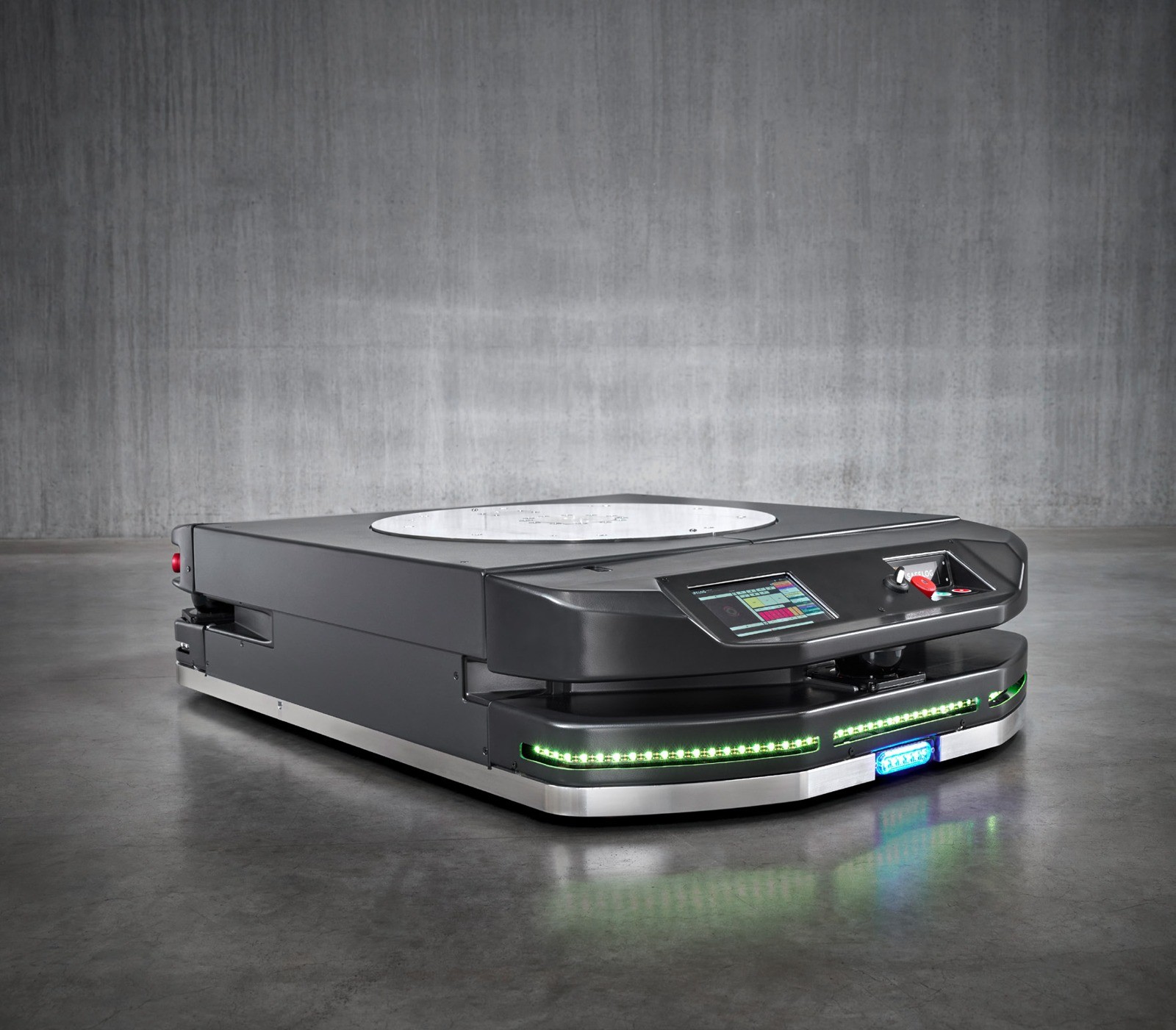

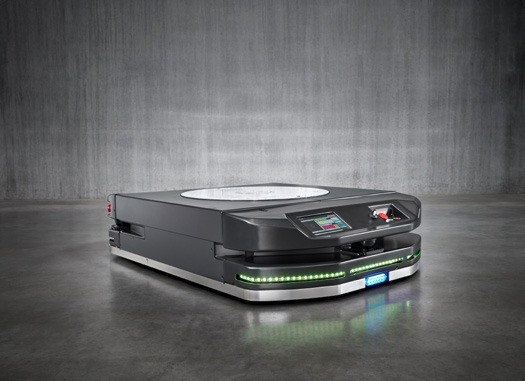

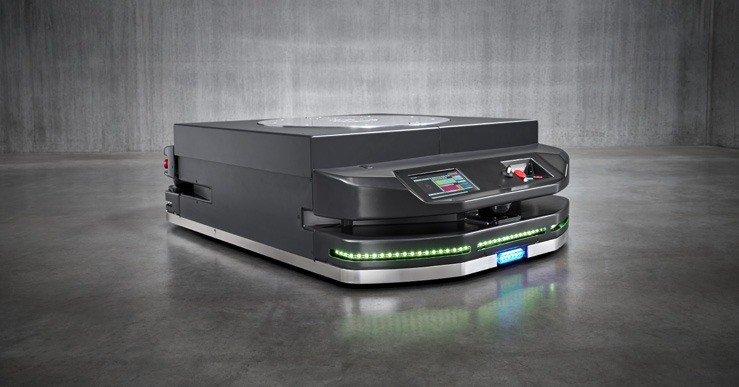

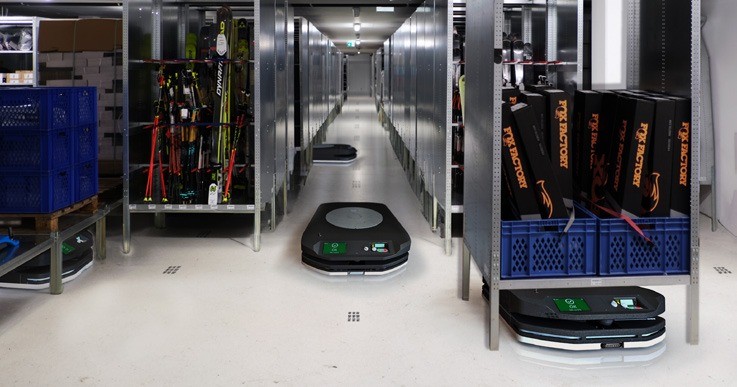

The GT1 spin is SAFELOG's goods-to-person robot for pallet and shelf transport (shelf-to-person). At 1,200 x 830 mm and just 275 mm high it drives under most standard shelves, lifts them 70 mm and carries up to 1,300 kg, and its turntable lets it realign pallets and shelves without turning the robot. It is SAFELOG's fastest heavy unit, reaching 2.0 m/s fully loaded and 3 m/s empty, on a 48 V LiFePO4 system of four 42 Ah packs that charge inductively from 20 to 80% in about 30 minutes and give about 3.7 hours under load (6.3 hours empty). Per its datasheet it weighs 269 kg, positions to +/-5 mm, localizes by odometry and grid codes with LiDAR optional, and is not designed for inclines or ramps.
FEATURES
- Goods-to-person / shelf-to-person robot for pallets and shelves
- Only 275 mm high - drives under standard shelves
- lifts 70 mm
- Turntable realigns goods without moving the robot
- Top load 1,300 kg
- Speed up to 2.0 m/s loaded, 3.0 m/s empty
- Localization: odometry and grid codes
- LiDAR optional
- optional QR sensor, light barrier, 3D ToF camera
- LiFePO4 48 V, 4 packs, 42 Ah
- 30 min charge
- 3.7 h with load, 6.3 h without
- Size 1,200 x 830 x 275 mm
- 269 kg
- CE, FCC, IP54 planned
- Not for inclines or ramps
- Agent-based swarm control (SAFELOG IntelliAgent) over Wi-Fi - no central control station needed
- VDA 5050-ready for third-party fleet managers
- Inductive in-process charging
- LiFePO4 batteries
- Operating range +5 to +35 C
- VDI 2510 floors
- 24/7 operation
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 269 kg |
|---|---|
| Dimensions | L 1.2 m × W 830 mm × H 275 mm |
| Payload | 1300 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 10.8 km/h |
| Environment | Indoor production and warehouse floors (+5 to 35 C, VDI 2510) |
| Power | |
| Battery Life | 222 min |
| Sensing & Compute | |
| Sensors | safety laser scanner, RFID / grid-code / magnetic-track sensors |
| Connectivity | Wi-Fi; VDA 5050 |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 269 kg |
|---|---|
| Dimensions | L 1.2 m × W 830 mm × H 275 mm |
| Payload | 1300 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 10.8 km/h |
| Environment | Indoor production and warehouse floors (+5 to 35 C, VDI 2510) |
| Power | |
| Battery Life | 222 min |
| Sensing & Compute | |
| Sensors | safety laser scanner, RFID / grid-code / magnetic-track sensors |
| Connectivity | Wi-Fi; VDA 5050 |
Images
martti
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the SAFELOG GT1 spin?
The GT1 spin is SAFELOG's goods-to-person robot for pallet and shelf transport (shelf-to-person). At 1,200 x 830 mm and just 275 mm high it drives under most standard shelves, lifts them 70 mm and carries up to 1,300 kg, and its turntable lets it realign pallets and shelves without turning the robot.
Who makes the SAFELOG GT1 spin?
The SAFELOG GT1 spin is made by SAFELOG, a robotics company based in Germany.
How much does the SAFELOG GT1 spin cost?
SAFELOG has not publicly announced pricing for the SAFELOG GT1 spin. You can enquire through RobotAIGeek for current pricing.
What is the SAFELOG GT1 spin used for?
The SAFELOG GT1 spin is designed for intralogistics, lifting, material-handling, and transport. It is used in automotive, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the SAFELOG GT1 spin?
The SAFELOG GT1 spin has a payload capacity of 1,300 kg.
How much does the SAFELOG GT1 spin weigh?
The SAFELOG GT1 spin weighs 269 kg.
How fast is the SAFELOG GT1 spin?
The SAFELOG GT1 spin can move at speeds of up to 10.8 km/h.
What is the battery life of the SAFELOG GT1 spin?
The SAFELOG GT1 spin runs for about 222 minutes on a charge.
