DESCRIPTION
Robot 557 MPA XL is an Industrial-Robot from Conjet. It is built for Others, Extended-reach hydrodemolition of high walls and ceilings. Key figures: 2840 kg.

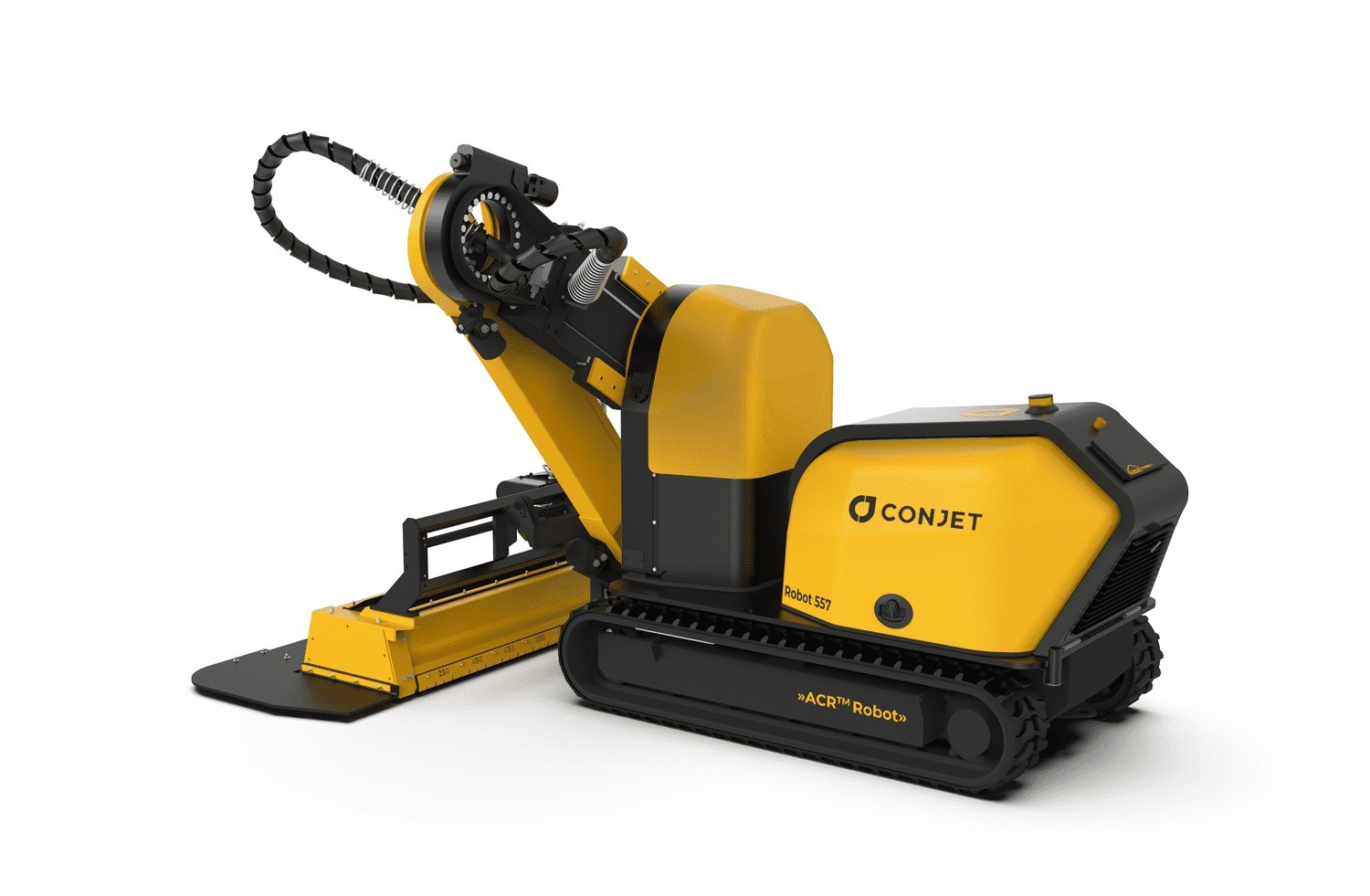

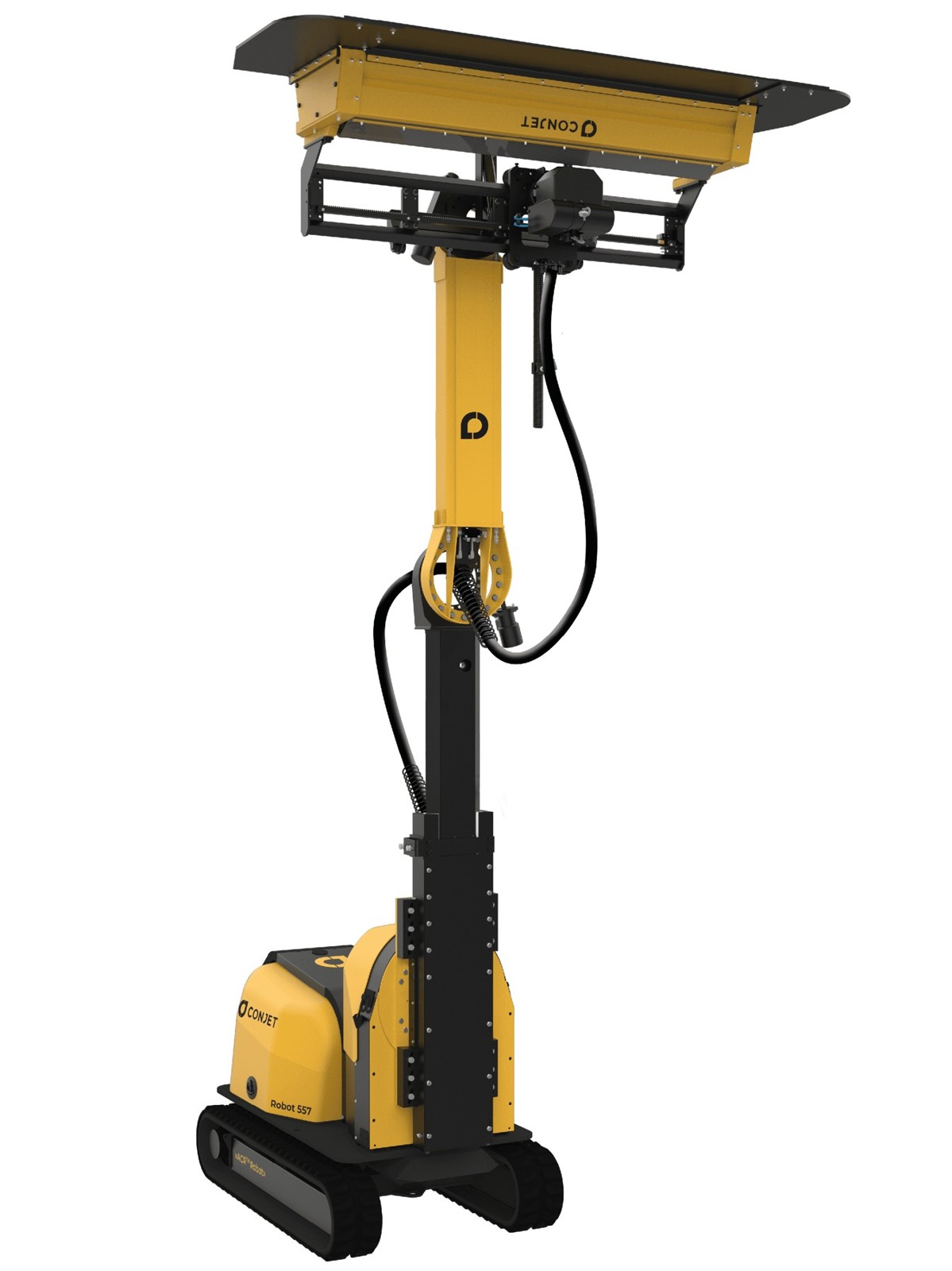

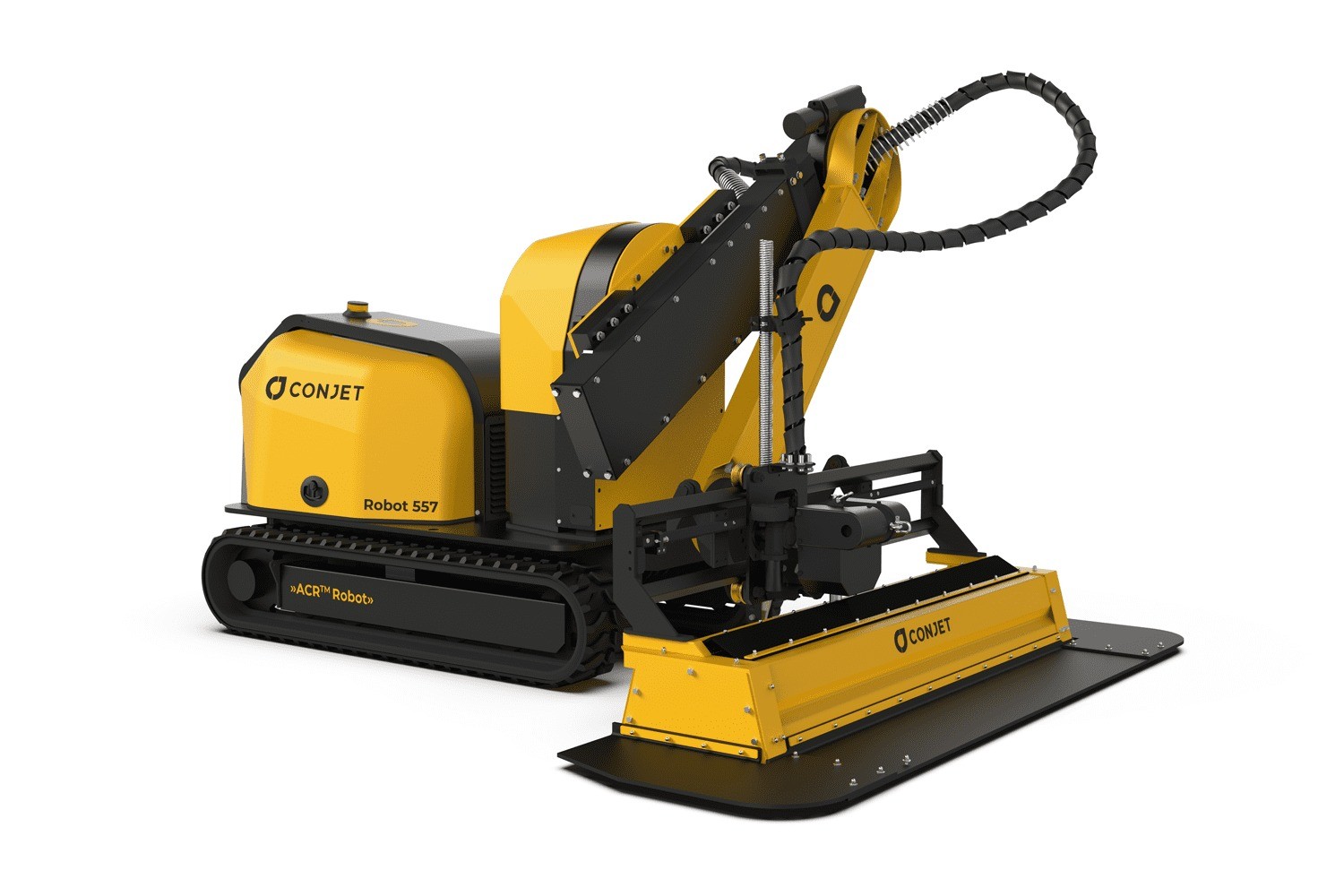

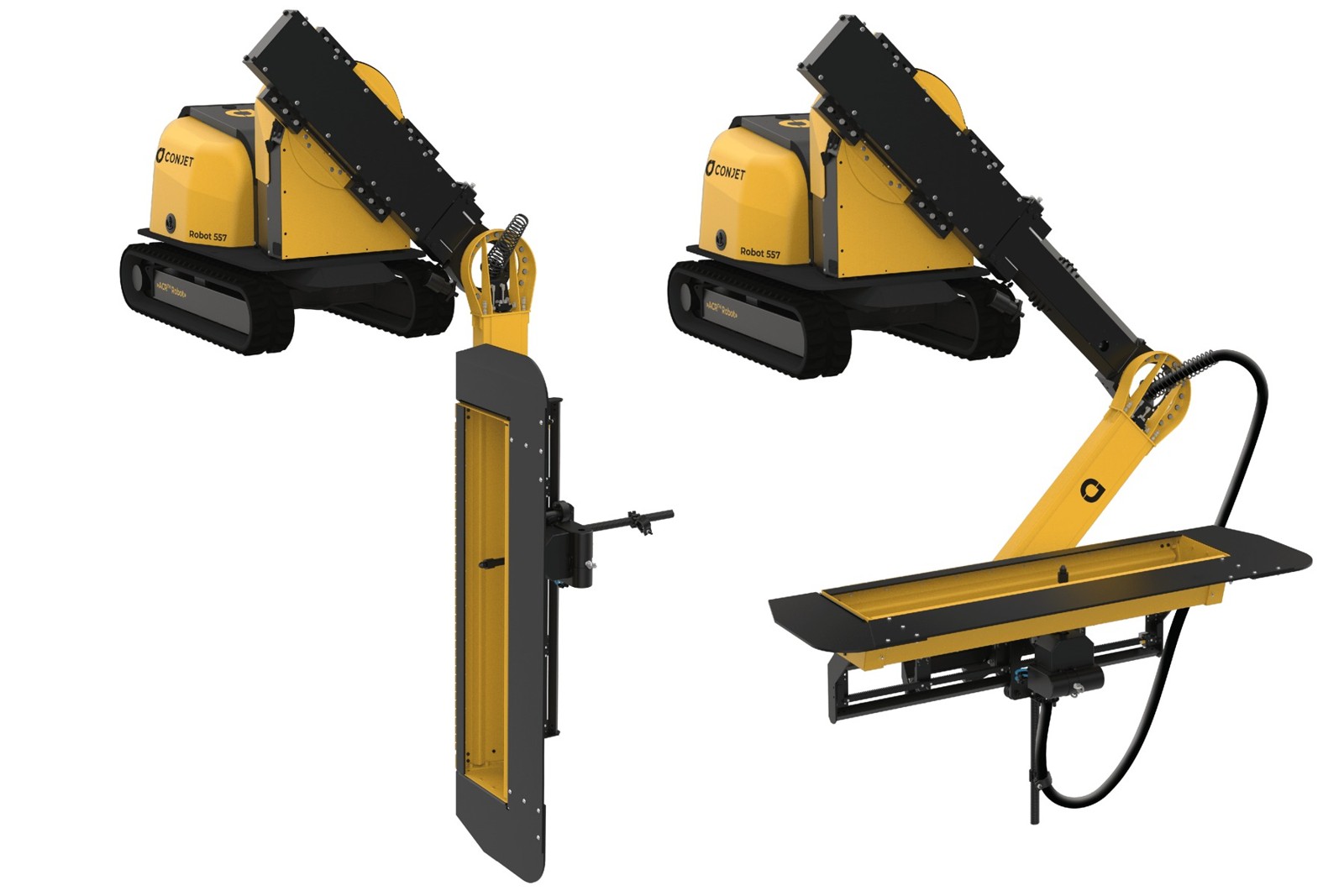

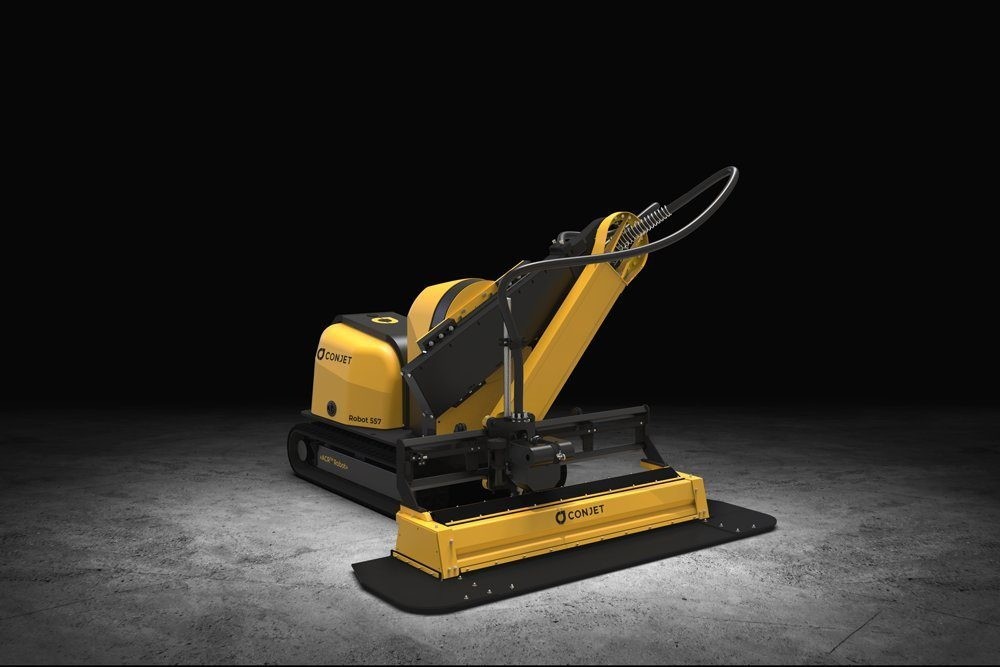

The Conjet Robot 557 MPA XL is the extended-reach version of Conjet's track-driven 557 MPA hydrodemolition robot, with a multi-purpose arm for removing concrete with ultra-high-pressure water from high walls, ceilings and large structures. Its tracks extend and its main body slides back up to 400 mm for stability, and every unit has an automatic Stability Control System that monitors the feed-beam position and warns the operator; it is fully automated through the ConjetONE control system. It weighs 2,840 kg, is 3,560 mm long with a 1,200-1,900 mm track width, and reaches 6,350 mm vertically, 5,900 mm overhead, 4,900 mm horizontally and 3,050 mm below track level with a 2,100 mm cutting width and a 3,000 N maximum reaction force. It runs on an 18.7 kW diesel engine or electric power and is CE and EMC certified.
FEATURES
- Extended-reach track-driven robot with multi-purpose arm
- Up to 6,350 mm vertical reach
- 5,900 mm overhead
- Automatic Stability Control System
- 2,840 kg
- 3,560 mm long
- 1,200-1,900 mm track width
- 2,100 mm cutting width
- 3,000 N max reaction force
- Diesel (18.7 kW) or electric power
- ConjetONE control system
- CE/EMC certified
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 2840 kg |
|---|---|
| Dimensions | L 3.56 m |
| Mobility | |
| Movement Type | Other |
| Environment | Large structures: dams, tunnels, bridges, high walls |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 2840 kg |
|---|---|
| Dimensions | L 3.56 m |
| Mobility | |
| Movement Type | Other |
| Environment | Large structures: dams, tunnels, bridges, high walls |
Images
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Robot 557 MPA XL?
The Conjet Robot 557 MPA XL is the extended-reach version of Conjet's track-driven 557 MPA hydrodemolition robot, with a multi-purpose arm for removing concrete with ultra-high-pressure water from high walls, ceilings and large structures.
Who makes the Robot 557 MPA XL?
The Robot 557 MPA XL is made by Conjet, a robotics company based in Sweden.
How much does the Robot 557 MPA XL cost?
Conjet has not publicly announced pricing for the Robot 557 MPA XL. You can enquire through RobotAIGeek for current pricing.
What is the Robot 557 MPA XL used for?
The Robot 557 MPA XL is designed for others and extended-reach hydrodemolition of high walls and ceilings. It is used in construction settings.
How much does the Robot 557 MPA XL weigh?
The Robot 557 MPA XL weighs 2,840 kg.
