DESCRIPTION
Robot 557 MPA is an Industrial-Robot from Conjet. It is built for Others, Hydrodemolition of walls, ceilings and floors with a multi-purpose arm. Key figures: 2740 kg.

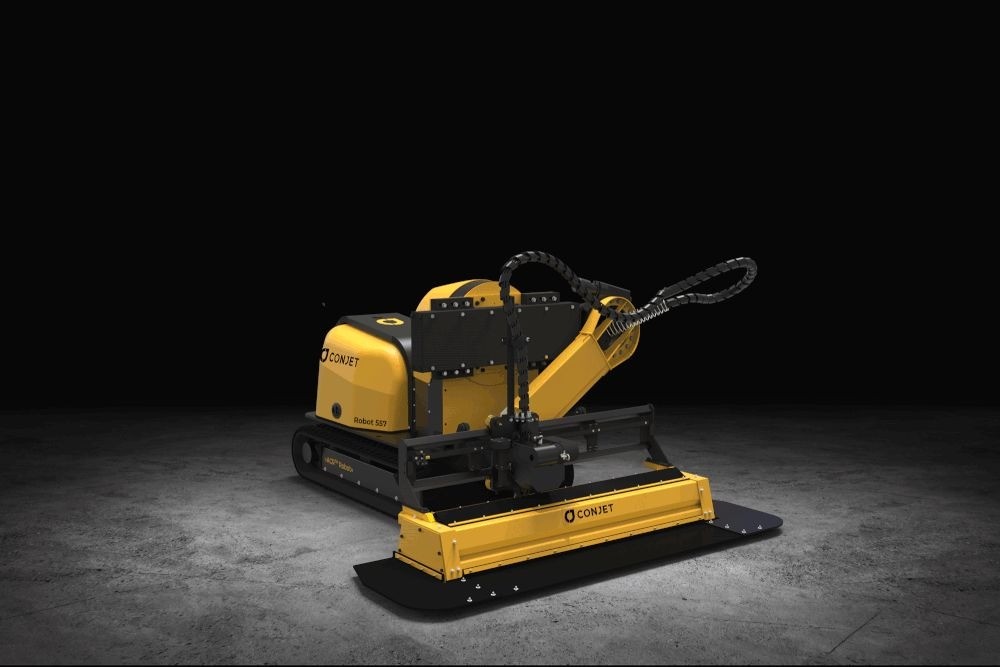

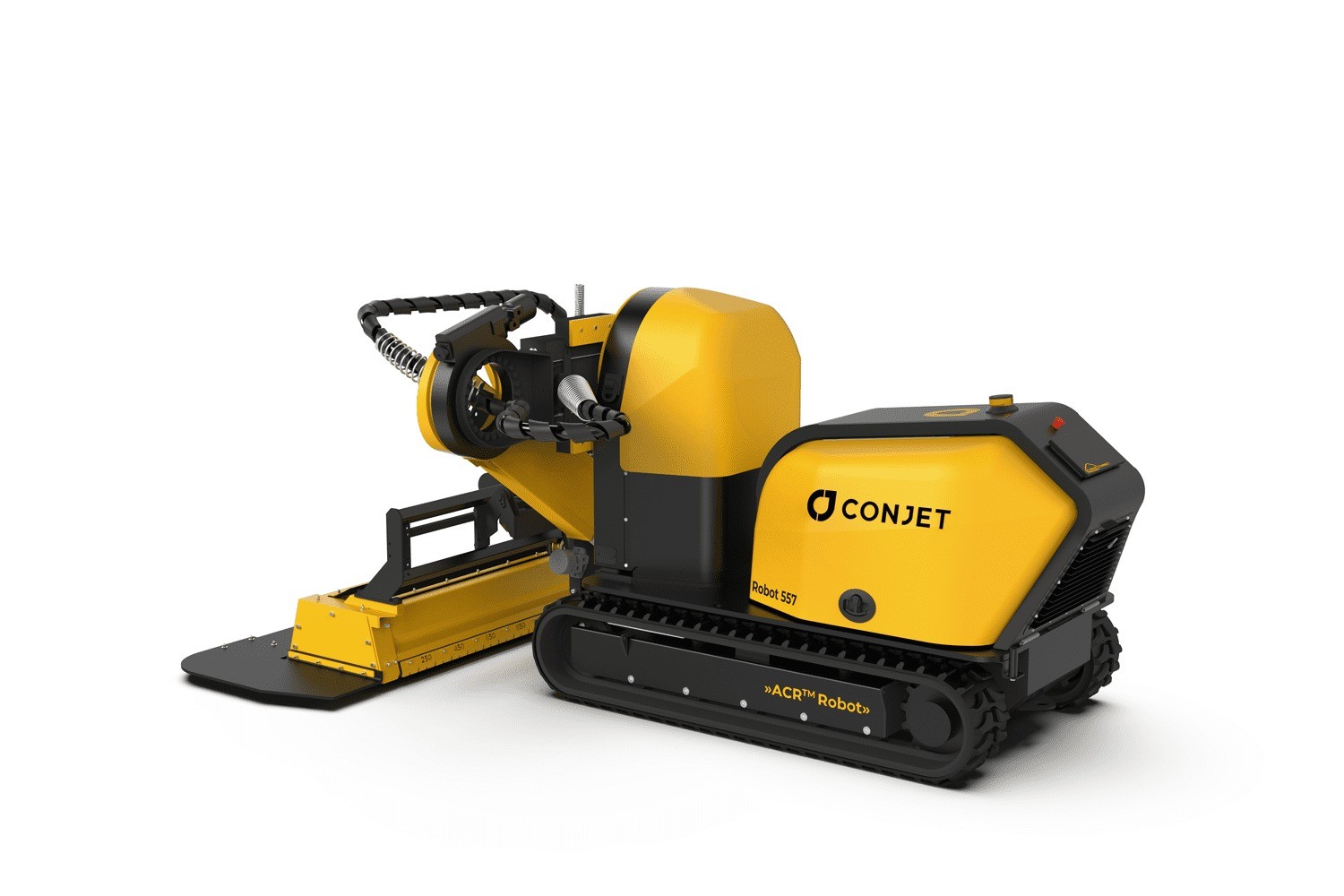

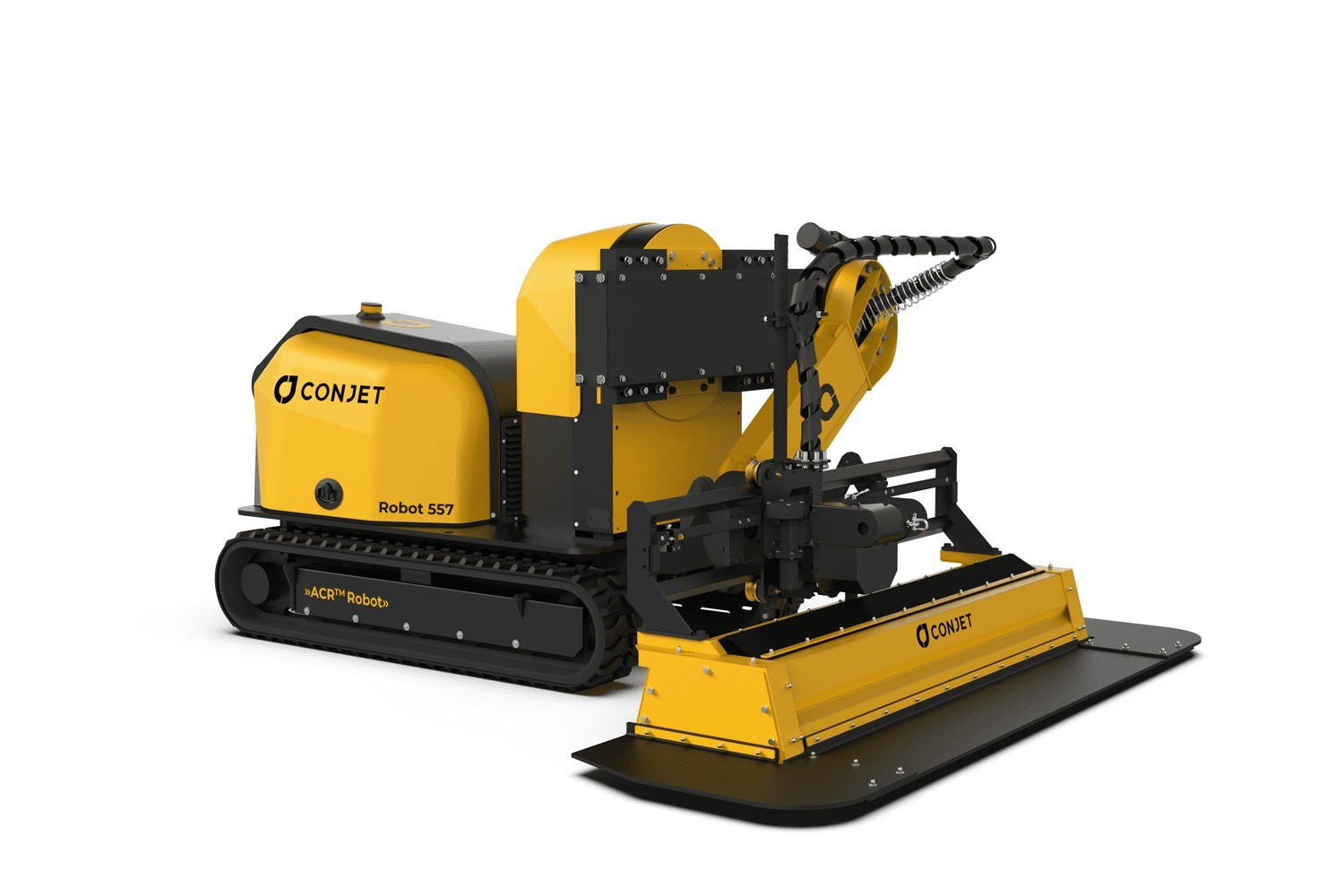

The Conjet Robot 557 MPA is a track-driven hydrodemolition robot with a multi-purpose arm that removes concrete with ultra-high-pressure water from walls, ceilings, floors and structures such as bridges, dams and tunnels. Its adjustable chassis can extend the tracks and slide the main body back up to 400 mm to shift the centre of gravity for stability, and as a 7-series robot it is fully automated through the ConjetONE control system. It weighs 2,740 kg, is 3,560 mm long, has a track width of 1,200-1,900 mm and a minimum height of 1,580 mm, and reaches 5,050 mm vertically, 4,580 mm overhead, 3,800 mm horizontally and 2,100 mm below track level with a 2,100 mm cutting width and a 3,000 N maximum reaction force. It runs on an 18.7 kW diesel engine or electric power, accepts tool kits for multi-purpose use and is CE and EMC certified.
FEATURES
- Track-driven robot with multi-purpose arm
- Up to 5,050 mm vertical reach
- 4,580 mm overhead

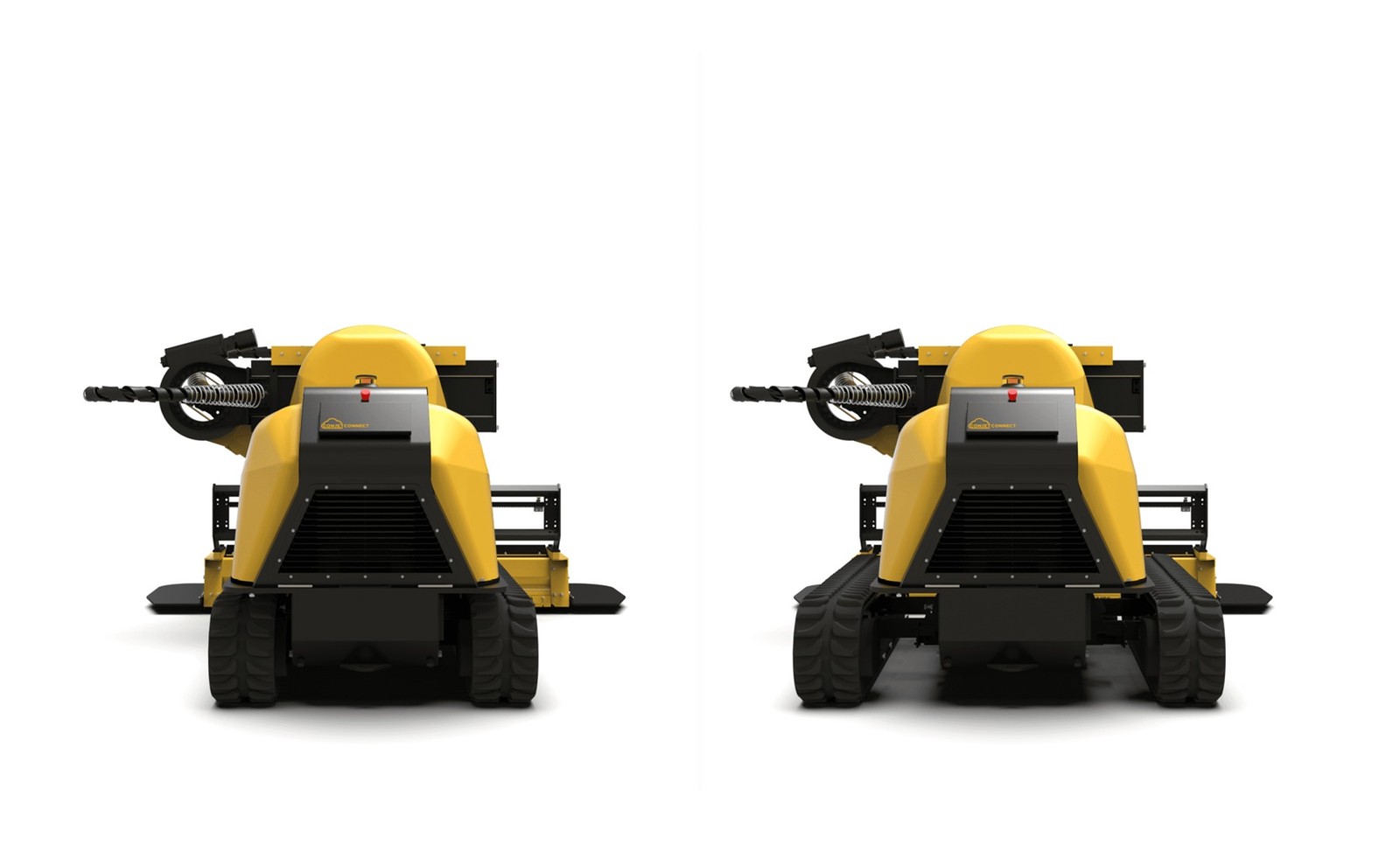

- Main body slides back up to 400 mm for stability
- 2,740 kg
- 3,560 mm long
- min. height 1,580 mm
- 2,100 mm cutting width
- 3,000 N max reaction force
- Diesel (18.7 kW) or electric power
- ConjetONE control system
- CE/EMC certified
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 2740 kg |
|---|---|
| Dimensions | L 3.56 m × H 1.58 m |
| Mobility | |
| Movement Type | Other |
| Environment | Bridges, dams, tunnels, parking structures |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 2740 kg |
|---|---|
| Dimensions | L 3.56 m × H 1.58 m |
| Mobility | |
| Movement Type | Other |
| Environment | Bridges, dams, tunnels, parking structures |
Images
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Robot 557 MPA?
The Conjet Robot 557 MPA is a track-driven hydrodemolition robot with a multi-purpose arm that removes concrete with ultra-high-pressure water from walls, ceilings, floors and structures such as bridges, dams and tunnels.
Who makes the Robot 557 MPA?
The Robot 557 MPA is made by Conjet, a robotics company based in Sweden.
How much does the Robot 557 MPA cost?
Conjet has not publicly announced pricing for the Robot 557 MPA. You can enquire through RobotAIGeek for current pricing.
What is the Robot 557 MPA used for?
The Robot 557 MPA is designed for others and hydrodemolition of walls, ceilings and floors with a multi-purpose arm. It is used in construction settings.
How much does the Robot 557 MPA weigh?
The Robot 557 MPA weighs 2,740 kg.
