DESCRIPTION
Robot 557 H is an Industrial-Robot from Conjet. It is built for Others, Hydrodemolition of horizontal concrete surfaces (decks, garages). Key figures: 2300 kg.

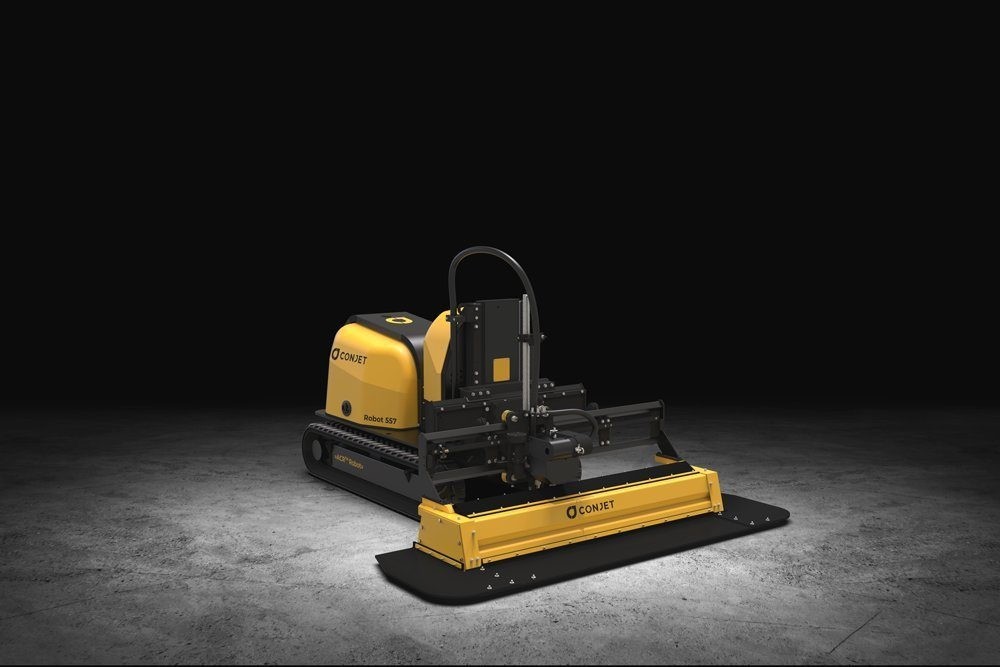

The Conjet Robot 557 H is a track-driven hydrodemolition robot for removing concrete from parking garages, bridges and other horizontal surfaces with ultra-high-pressure water. Its adjustable chassis lets the tracks extend and the main body slide to position the cut, giving it high manoeuvrability in confined spaces, and as part of Conjet's 7-series it is fully automated through the ConjetONE control system, configured from the remote radio control or the robot display. It weighs 2,300 kg, is 3,480 mm long with a track width extendable from 1,200 to 1,900 mm, cuts a 2,100 mm width and handles a maximum reaction force of 3,000 N. It runs on an 18.7 kW diesel engine or electric power (3 x 380-480 VAC 32 A or 3 x 200 VAC 63 A, 50-60 Hz), offers tool kits for multi-purpose use, is CE and EMC certified and prepared for Conjet Connect.
FEATURES
- Track-driven robot for horizontal concrete removal
- Extendable tracks and sliding main body
- ConjetONE control system (7-series)
- 2,300 kg
- 3,480 mm long
- 1,200-1,900 mm track width
- 2,100 mm cutting width
- 3,000 N max reaction force
- Diesel (18.7 kW) or electric power
- CE/EMC certified
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 2300 kg |
|---|---|
| Dimensions | L 3.48 m |
| Mobility | |
| Movement Type | Other |
| Environment | Parking garages, bridge decks and other horizontal surfaces |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 2300 kg |
|---|---|
| Dimensions | L 3.48 m |
| Mobility | |
| Movement Type | Other |
| Environment | Parking garages, bridge decks and other horizontal surfaces |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Robot 557 H?
The Conjet Robot 557 H is a track-driven hydrodemolition robot for removing concrete from parking garages, bridges and other horizontal surfaces with ultra-high-pressure water.
Who makes the Robot 557 H?
The Robot 557 H is made by Conjet, a robotics company based in Sweden.
How much does the Robot 557 H cost?
Conjet has not publicly announced pricing for the Robot 557 H. You can enquire through RobotAIGeek for current pricing.
What is the Robot 557 H used for?
The Robot 557 H is designed for others and hydrodemolition of horizontal concrete surfaces (decks, garages). It is used in construction settings.
How much does the Robot 557 H weigh?
The Robot 557 H weighs 2,300 kg.
