DESCRIPTION
Robot 327 is an Industrial-Robot from Conjet. It is built for Others, Hydrodemolition in confined spaces. Key figures: 1180 kg.

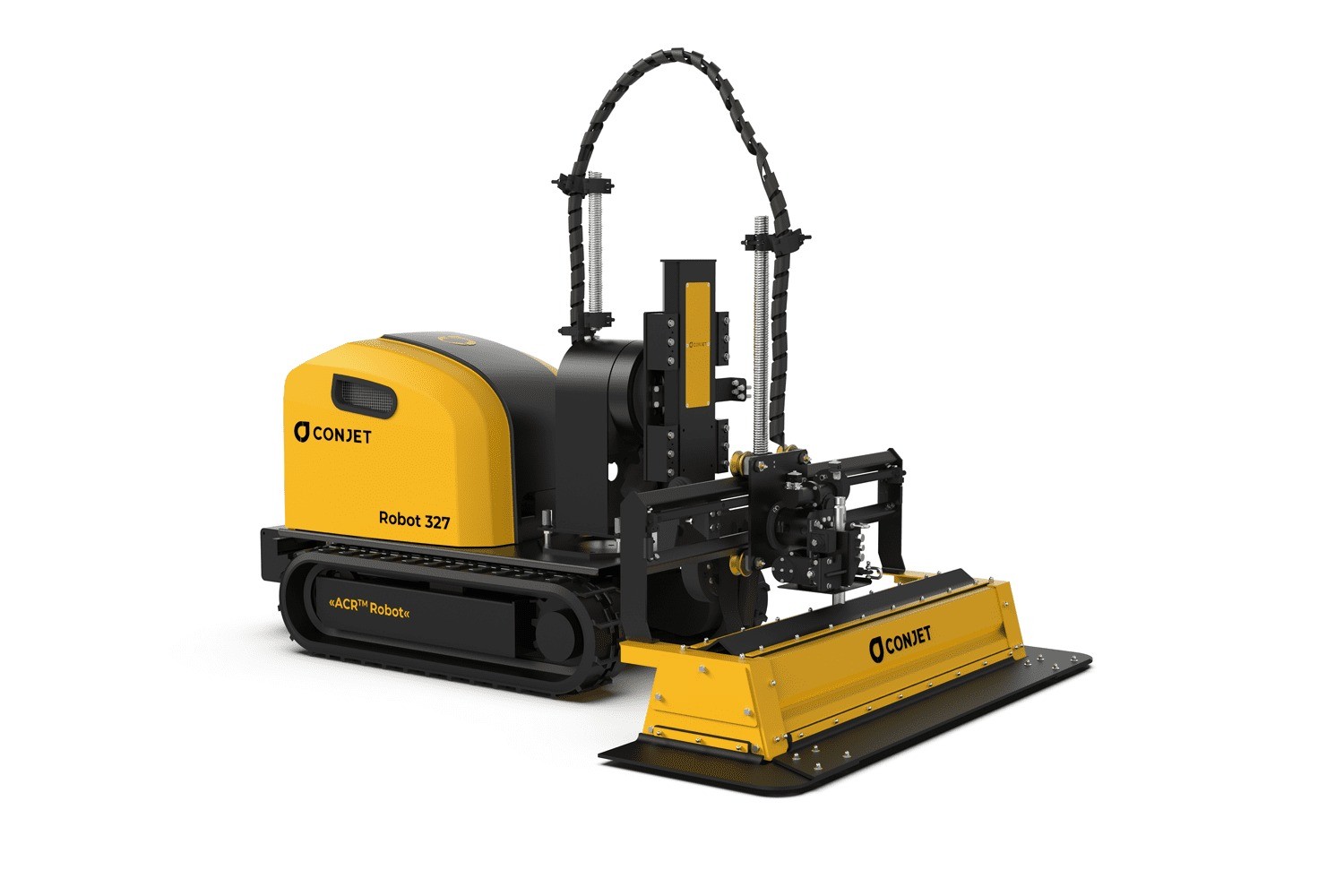

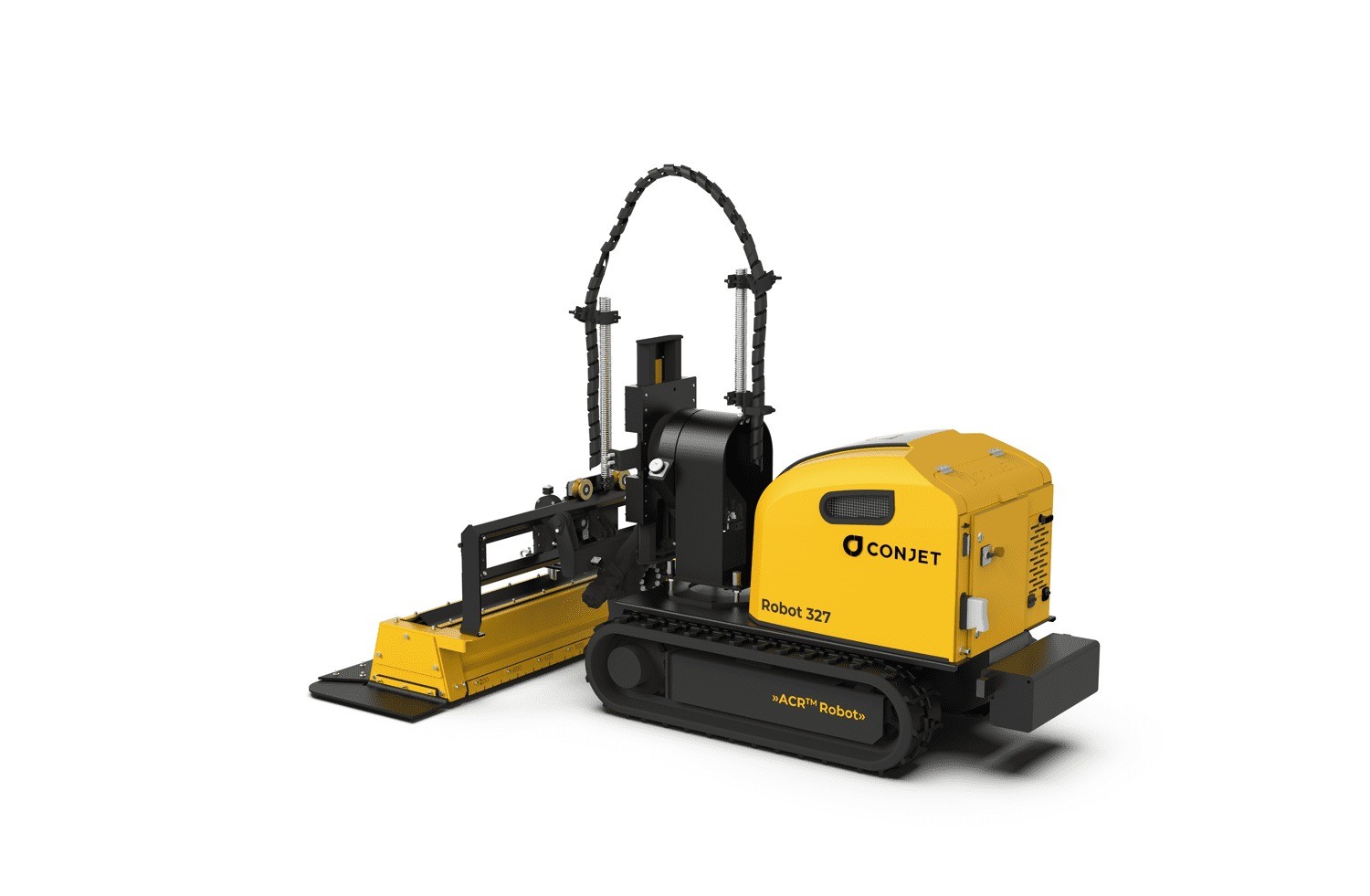

The Conjet Robot 327 is an electrically powered, track-driven, fully automated hydrodemolition robot developed for confined spaces: it passes through openings less than 0.9 m (3 ft) wide. Its arm and feed beam turn 360 degrees, track extensions add stability, track sensors control travel distance and removable side covers allow maximum reach into corners; the high-pressure lance takes a single or double nozzle assembly, a winch can be added for slopes and a rotary head for surface preparation, all controlled by the ConjetONE system. The carrier is 820-1,200 mm wide, 2,850 mm long and 1,420 mm high, and weighs 1,180 kg (1,340 kg with counterweight). It cuts a 1,600 mm width and reaches 2,000 mm overhead and 2,400 mm vertically (2,850 mm and 3,300 mm with the extension arm), handles a 1,500 N maximum reaction force, runs on 3-phase 380-480 V 16 A or 200 V 32 A power and is CE and EMC certified.
FEATURES
- Electric, track-driven, fully automated robot
- Passes through openings under 0.9 m wide
- Arm and feed beam rotate 360 degrees
- 1,180 kg (1,340 kg with counterweight)
- 2,850 mm long
- 1,600 mm cutting width
- reach to 3,300 mm with extension arm
- Single or double nozzle lance
- winch and rotary head options
- ConjetONE control system
- CE/EMC certified
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 1180 kg |
|---|---|
| Dimensions | L 2.85 m × H 1.42 m |
| Mobility | |
| Movement Type | Other |
| Environment | Confined spaces and openings under 0.9 m |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 1180 kg |
|---|---|
| Dimensions | L 2.85 m × H 1.42 m |
| Mobility | |
| Movement Type | Other |
| Environment | Confined spaces and openings under 0.9 m |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Robot 327?
The Conjet Robot 327 is an electrically powered, track-driven, fully automated hydrodemolition robot developed for confined spaces: it passes through openings less than 0.9 m (3 ft) wide.
Who makes the Robot 327?
The Robot 327 is made by Conjet, a robotics company based in Sweden.
How much does the Robot 327 cost?
Conjet has not publicly announced pricing for the Robot 327. You can enquire through RobotAIGeek for current pricing.
What is the Robot 327 used for?
The Robot 327 is designed for others and hydrodemolition in confined spaces. It is used in construction settings.
How much does the Robot 327 weigh?
The Robot 327 weighs 1,180 kg.
