DESCRIPTION
Robot 101 Nalta Evo is an Industrial-Robot from Conjet. It is built for Others, Selective hydrodemolition in confined areas, overhead and under bridge decks.

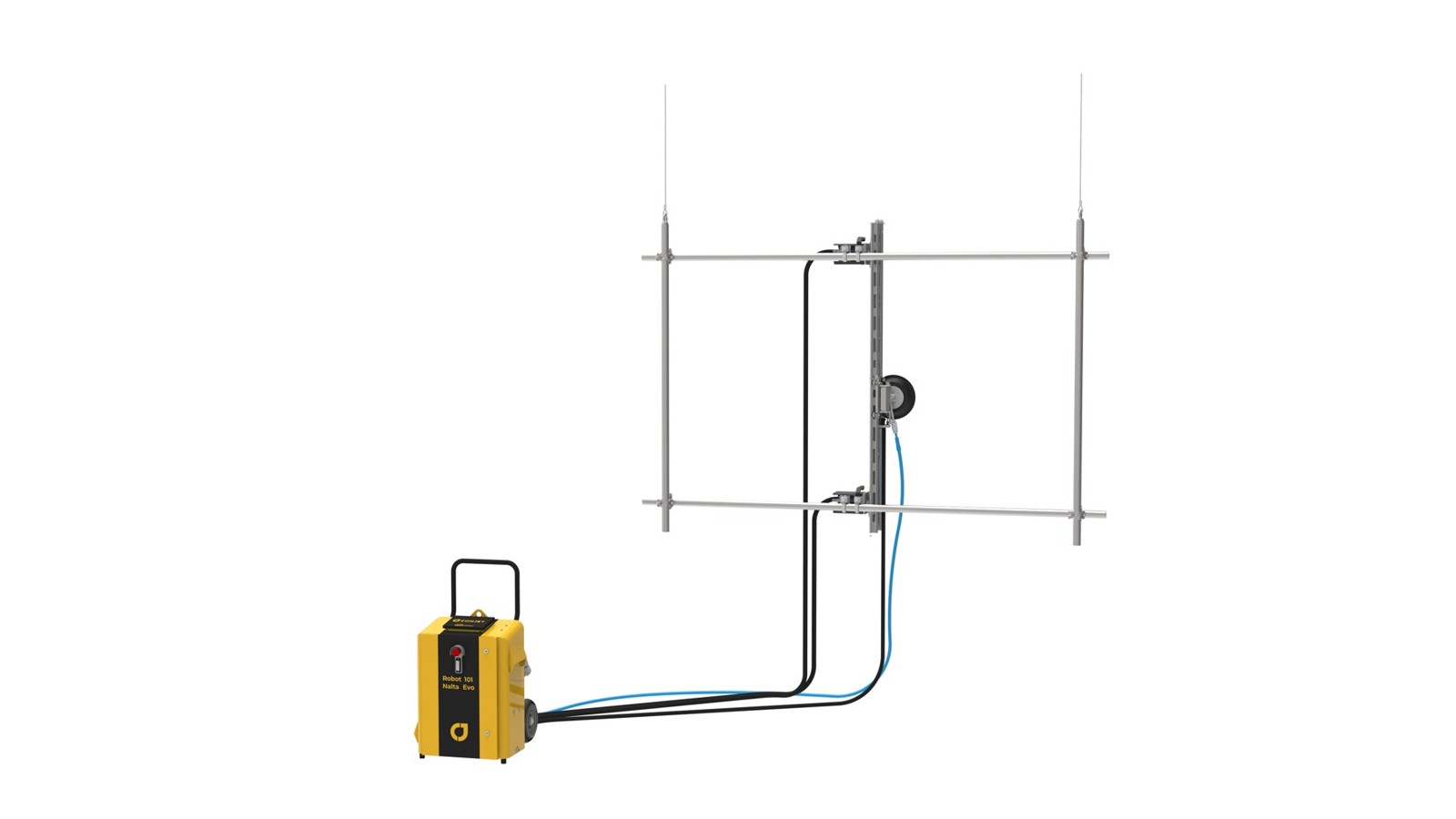

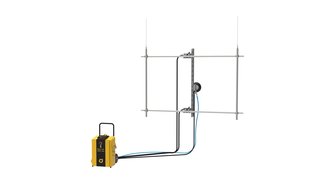

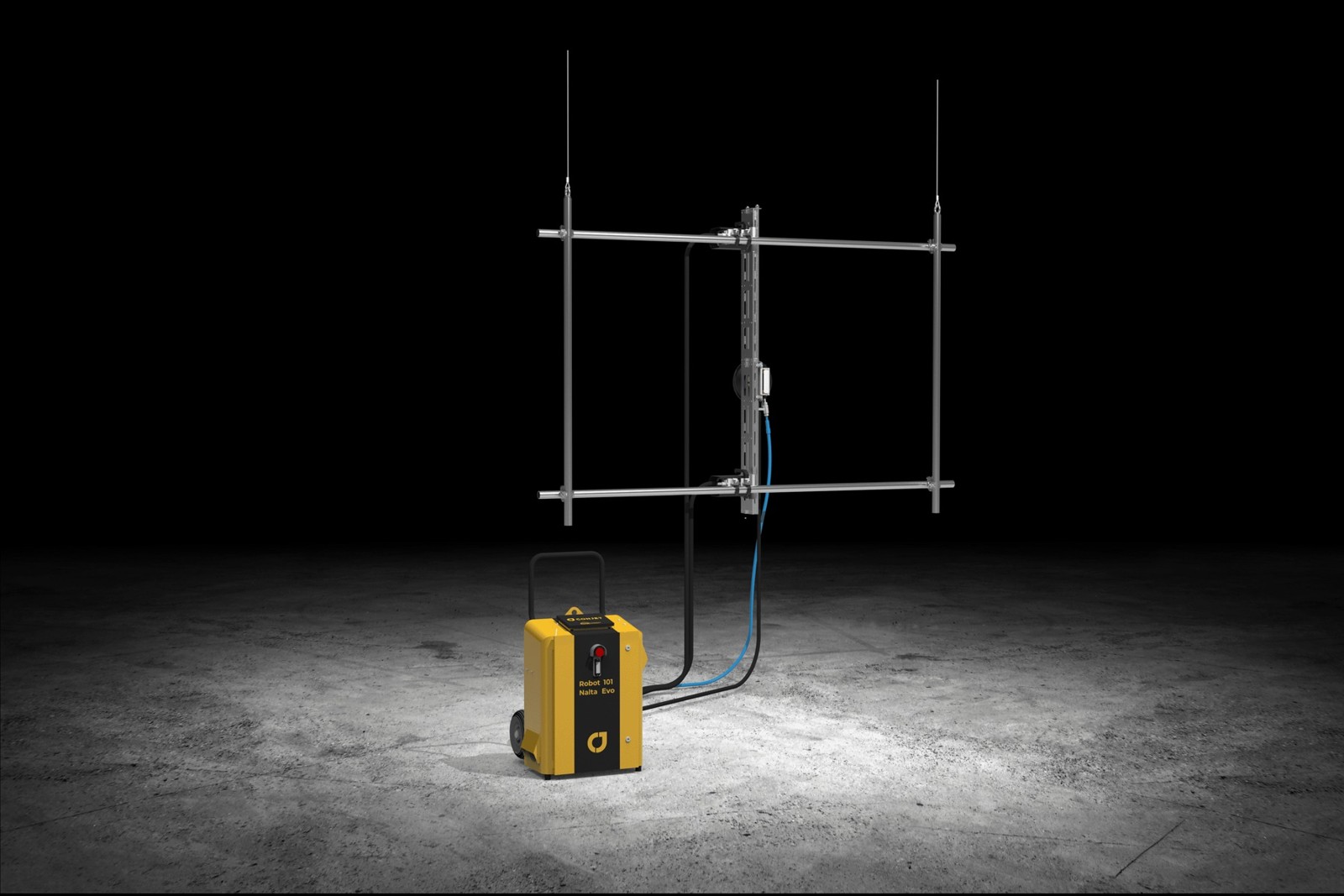

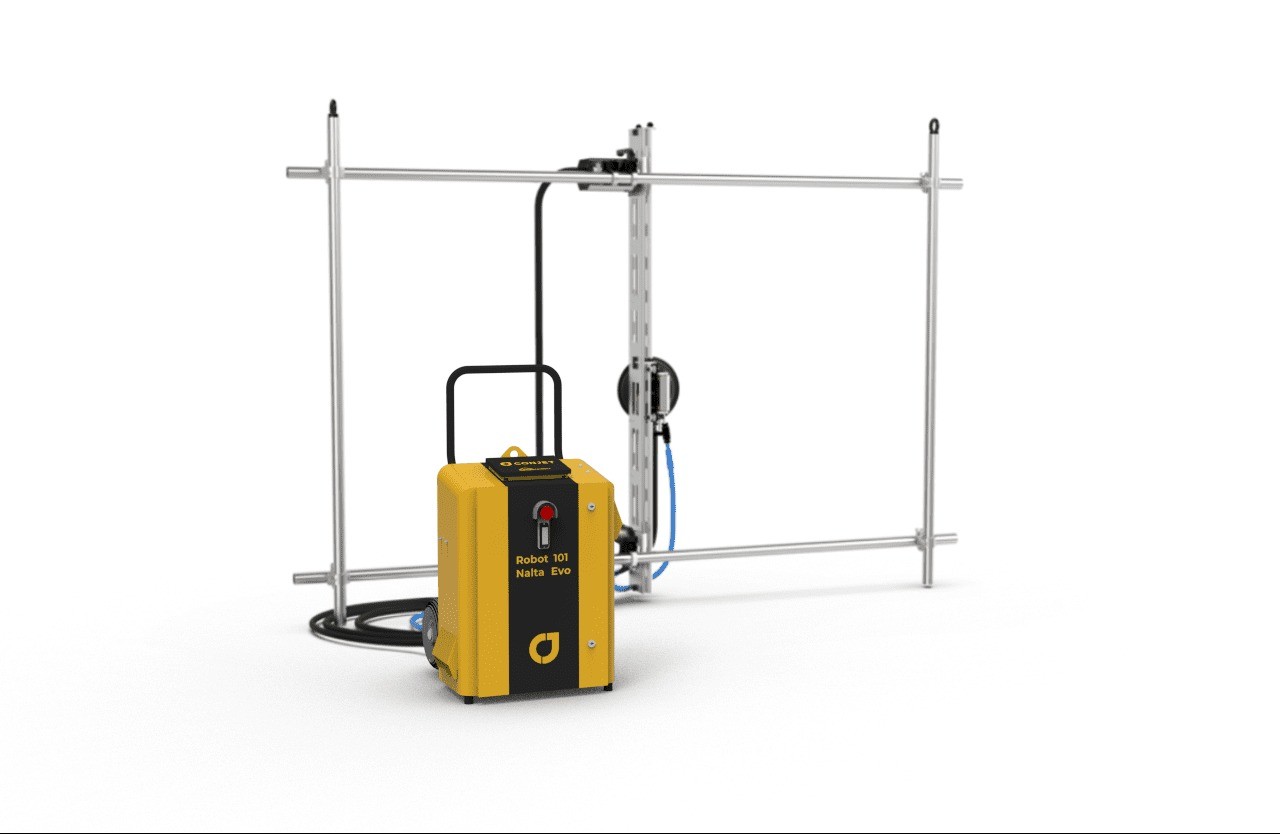

The Conjet Robot 101 Nalta Evo is what Conjet calls the world's smallest hydrodemolition robot, built for selective concrete removal with ultra-high-pressure water in narrow, confined areas that other methods cannot reach - for example between a building and its scaffolding. It consists of a cutting head on a feed beam whose step units clamp to standard scaffolding pipes or custom pipe framing, works on horizontal, vertical and angled surfaces including ceilings and the undersides of bridge decks, and is remotely operated from up to 50 m away with a handheld control unit. It dismantles into sections light enough for one person to carry: feed-beam sections are 990 mm long and weigh 8 kg, the lance unit 12 kg, the step unit 9 kg and the hydraulic unit 90 kg. It handles water pressures up to 3,000 bar and a maximum reaction force of 600 N, has no electricity at the cutting head, can operate under water, accepts rotor attachments for surface preparation, runs on 1- or 3-phase 50/60 Hz power and is CE and EMC certified and prepared for Conjet Connect.
FEATURES
- World's smallest hydrodemolition robot (per Conjet)
- Mounts on standard scaffolding pipes or custom framing
- Horizontal, vertical, angled and overhead surfaces
- Remote operation up to 50 m
- handheld control unit
- Dismantles into one-person-carry sections (8-90 kg)
- Up to 3,000 bar water pressure
- 600 N max reaction force
- No electricity at the cutting head
- operates under water
- CE/EMC certified
- Conjet Connect ready
TECHNICAL SPECIFICATIONS
| Mobility | |
| Movement Type | Stationary |
|---|---|
| Environment | Confined spaces, facades, ceilings, under bridge decks; can work under water |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Mobility | |
| Movement Type | Stationary |
|---|---|
| Environment | Confined spaces, facades, ceilings, under bridge decks; can work under water |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Robot 101 Nalta Evo?
The Conjet Robot 101 Nalta Evo is what Conjet calls the world's smallest hydrodemolition robot, built for selective concrete removal with ultra-high-pressure water in narrow, confined areas that other methods cannot reach - for example between a building and its scaffolding.
Who makes the Robot 101 Nalta Evo?
The Robot 101 Nalta Evo is made by Conjet, a robotics company based in Sweden.
How much does the Robot 101 Nalta Evo cost?
Conjet has not publicly announced pricing for the Robot 101 Nalta Evo. You can enquire through RobotAIGeek for current pricing.
What is the Robot 101 Nalta Evo used for?
The Robot 101 Nalta Evo is designed for others and selective hydrodemolition in confined areas, overhead and under bridge decks. It is used in construction settings.
