DESCRIPTION

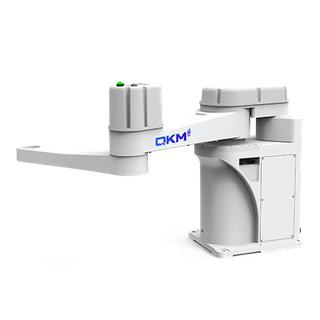

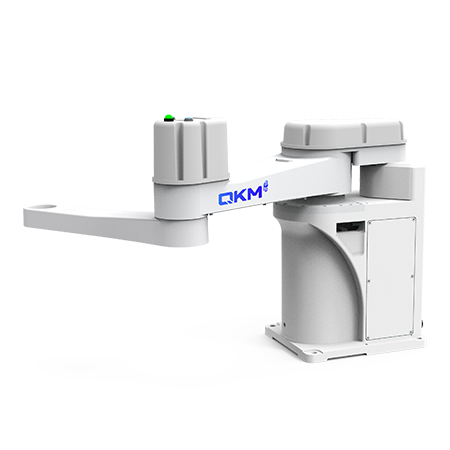

The QKM SCARA HM3 is an industrial SCARA robot from QKM Technologies. It supports a maximum payload of 3 kg and has a maximum working range of 800 mm.
FEATURES
- Maximum payload: 3 kg
- Maximum working range: 800 mm
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 36 kg |
|---|---|
| Payload | 3 kg |
| Reach | 800 mm |
| Repeatability | ±0.04 mm |
| Mobility | |
| Movement Type | Stationary |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 36 kg |
|---|---|
| Payload | 3 kg |
| Reach | 800 mm |
| Repeatability | ±0.04 mm |
| Mobility | |
| Movement Type | Stationary |
Images
martti
marttiImage Contributions
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the QKM SCARA HM3?
The QKM SCARA HM3 is an industrial SCARA robot from QKM Technologies. It supports a maximum payload of 3 kg and has a maximum working range of 800 mm.
Who makes the QKM SCARA HM3?
The QKM SCARA HM3 is made by QKM Technologies, a robotics company based in China.
How much does the QKM SCARA HM3 cost?
QKM Technologies has not publicly announced pricing for the QKM SCARA HM3. You can enquire through RobotAIGeek for current pricing.
What is the QKM SCARA HM3 used for?
The QKM SCARA HM3 is designed for assembly and pick-and-place. It is used in manufacturing settings.
What is the payload capacity of the QKM SCARA HM3?
The QKM SCARA HM3 has a payload capacity of 3 kg and a reach of 800 mm.
How much does the QKM SCARA HM3 weigh?
The QKM SCARA HM3 weighs 36 kg.
