DESCRIPTION

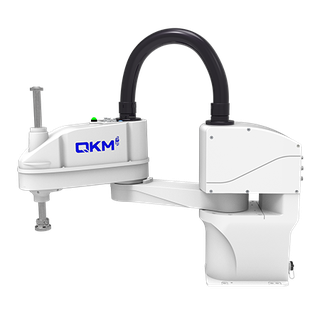

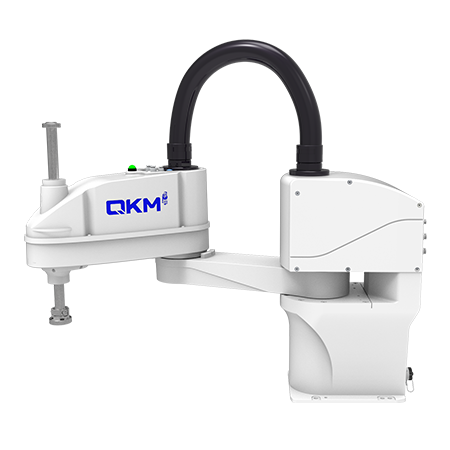

The QKM SCARA AH6 is an industrial SCARA robot from QKM Technologies. It supports a maximum payload of 6 kg and is available with working ranges of 500 mm, 600 mm, or 700 mm.
FEATURES
- Maximum payload: 6 kg
- Maximum working range: 500 mm, 600 mm, 700 mm
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 27 kg |
|---|---|
| Payload | 6 kg |
| Reach | 500 mm |
| Repeatability | ±0.02 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 4 |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 27 kg |
|---|---|
| Payload | 6 kg |
| Reach | 500 mm |
| Repeatability | ±0.02 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 4 |
Images
martti
marttiImage Contributions
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the QKM SCARA AH6?
The QKM SCARA AH6 is an industrial SCARA robot from QKM Technologies. It supports a maximum payload of 6 kg and is available with working ranges of 500 mm, 600 mm, or 700 mm.
Who makes the QKM SCARA AH6?
The QKM SCARA AH6 is made by QKM Technologies, a robotics company based in China.
How much does the QKM SCARA AH6 cost?
QKM Technologies has not publicly announced pricing for the QKM SCARA AH6. You can enquire through RobotAIGeek for current pricing.
What is the QKM SCARA AH6 used for?
The QKM SCARA AH6 is designed for assembly and pick-and-place. It is used in manufacturing settings.
What is the payload capacity of the QKM SCARA AH6?
The QKM SCARA AH6 has a payload capacity of 6 kg and a reach of 500 mm.
How much does the QKM SCARA AH6 weigh?
The QKM SCARA AH6 weighs 27 kg.
How many degrees of freedom does the QKM SCARA AH6 have?
The QKM SCARA AH6 has 4 degrees of freedom.
When was the QKM SCARA AH6 released?
The QKM SCARA AH6 was released in 2020.
