DESCRIPTION

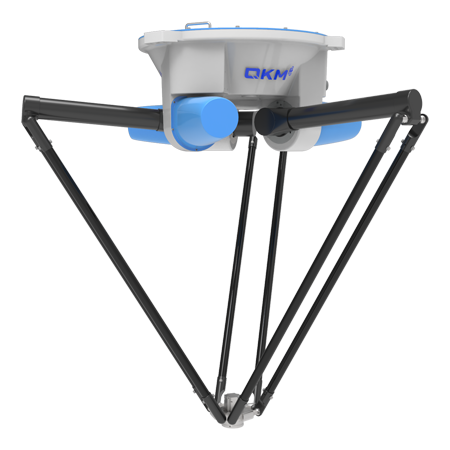

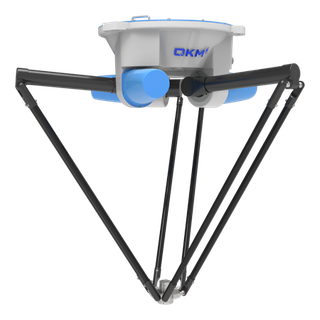

The QKM AP25X is a delta robot from QKM Technologies for industrial pick-and-place and handling applications. It features a maximum payload of 25 kg and a motion range up to 2200 mm, suitable for heavier duty tasks in manufacturing.
FEATURES
- Maximum payload: 25 kg
- Maximum motion range: 1130 mm, 1600 mm, 2200 mm
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 162 kg |
|---|---|
| Payload | 25 kg |
| Reach | 2.2 m |
| Repeatability | ±0.1 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 4 |
| Environment | IP54 |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 162 kg |
|---|---|
| Payload | 25 kg |
| Reach | 2.2 m |
| Repeatability | ±0.1 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 4 |
| Environment | IP54 |
Images
martti
martti
martti
martti
martti
marttiImage Contributions
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the QKM AP25X?
The QKM AP25X is a delta robot from QKM Technologies for industrial pick-and-place and handling applications. It features a maximum payload of 25 kg and a motion range up to 2200 mm, suitable for heavier duty tasks in manufacturing.
Who makes the QKM AP25X?
The QKM AP25X is made by QKM Technologies, a robotics company based in China.
How much does the QKM AP25X cost?
QKM Technologies has not publicly announced pricing for the QKM AP25X. You can enquire through RobotAIGeek for current pricing.
What is the QKM AP25X used for?

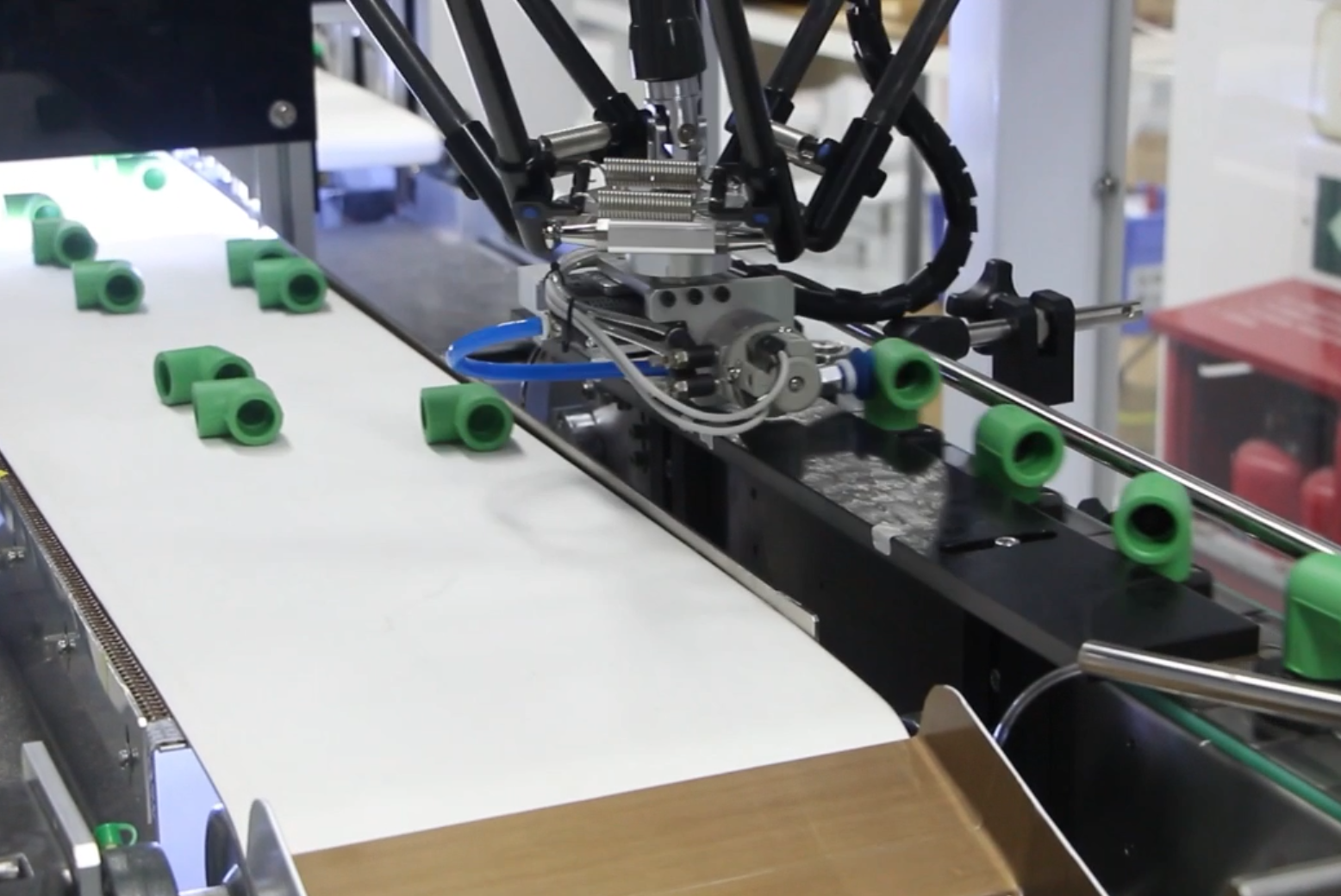

The QKM AP25X is designed for assembly, material-handling, and pick-and-place. It is used in manufacturing settings.
What is the payload capacity of the QKM AP25X?
The QKM AP25X has a payload capacity of 25 kg and a reach of 2.2 m.
How much does the QKM AP25X weigh?
The QKM AP25X weighs 162 kg.
How many degrees of freedom does the QKM AP25X have?
The QKM AP25X has 4 degrees of freedom.
