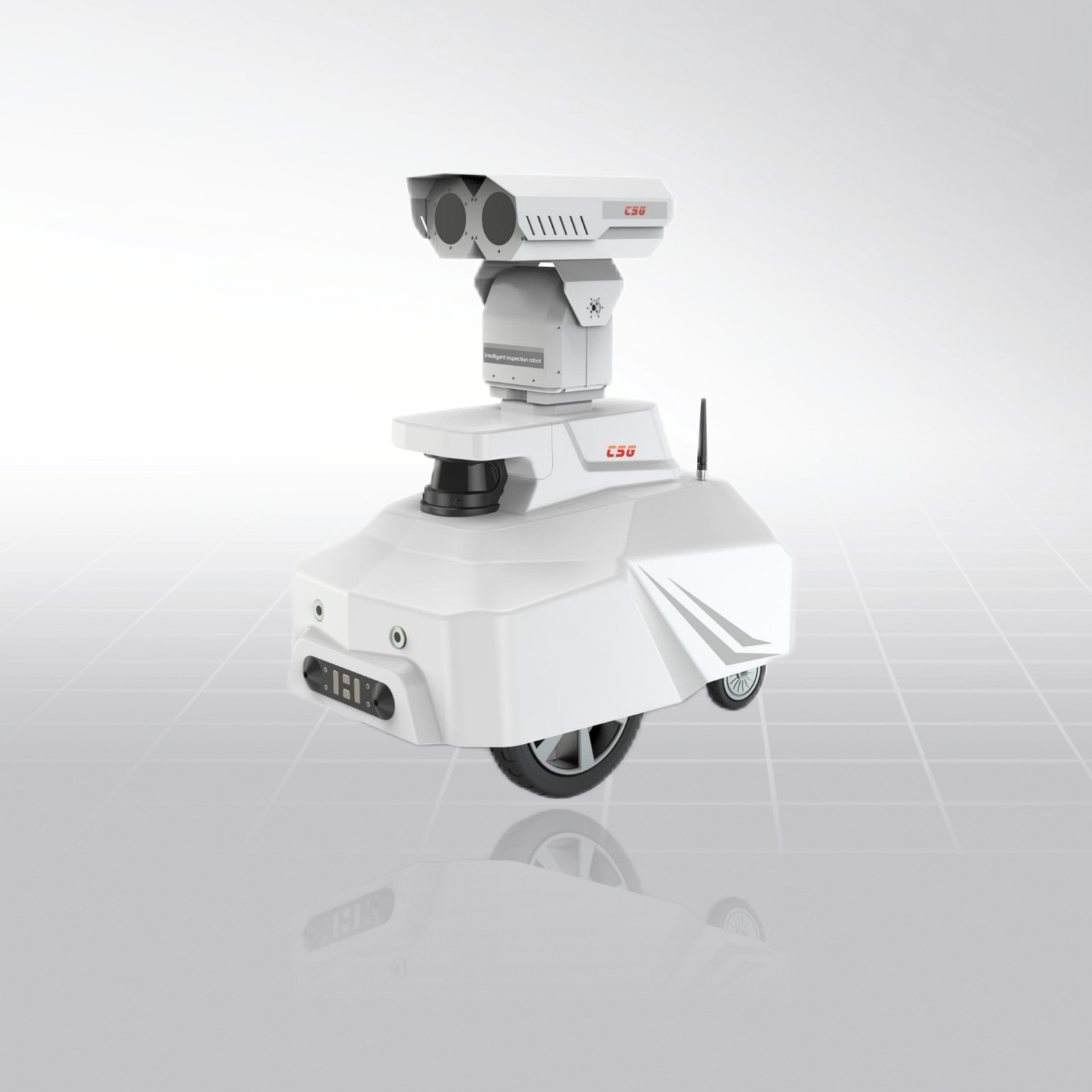

PIR-300
DESCRIPTION
PIR-300 is a Mobile-Robots from CSG Smart Science / Technology Co., Ltd. (Geekplus Technology Co.). It is built for Inspection, Monitoring, Patrol. Key figures: 480 min runtime.
The PIR-300 is CSG Smart's wheeled substation inspection robot, designed to the requirements of smart substations to inspect equipment across the whole site without a human patrol. It navigates, positions and charges itself and follows inspection routes autonomously. A pan-tilt head combines infrared thermal imaging with HD video to read meters accurately and detect overheating caused by current or voltage problems, so defects are found early. An AI vision library recognises targets with over 95% accuracy, and the robot can scan, update and stitch maps large enough for a 300,000 m2 substation. Reflector-free laser navigation repeats positions to within 1 cm, two-way voice intercom is built in, and it patrols for more than 8 hours on a charge.
FEATURES
- Wheeled substation inspection robot: autonomous navigation, positioning, charging, inspection
- Infrared thermal imaging + HD video dual view
- meter reading and hot-spot detection
- AI vision recognition accuracy above 95%
- Maps for substations up to 300,000 m2
- Reflector-free laser navigation
- repeat positioning error < 1 cm
- Two-way voice intercom
- more than 8 h patrol per charge
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Repeatability | ±10 mm |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Environment | Outdoor substations (up to 300,000 m2) |
| Power | |
| Battery Life | 480 min |
| Sensing & Compute | |
| Sensors | infrared thermal camera, HD visible camera, laser navigation (reflector-free), microphone/speaker |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Repeatability | ±10 mm |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Environment | Outdoor substations (up to 300,000 m2) |
| Power | |
| Battery Life | 480 min |
| Sensing & Compute | |
| Sensors | infrared thermal camera, HD visible camera, laser navigation (reflector-free), microphone/speaker |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the PIR-300?
The PIR-300 is CSG Smart's wheeled substation inspection robot, designed to the requirements of smart substations to inspect equipment across the whole site without a human patrol. It navigates, positions and charges itself and follows inspection routes autonomously.
Who makes the PIR-300?
The PIR-300 is made by CSG Smart Science / Technology Co., Ltd. (Geekplus Technology Co.), a robotics company based in China.
How much does the PIR-300 cost?
CSG Smart Science / Technology Co., Ltd. (Geekplus Technology Co.) has not publicly announced pricing for the PIR-300. You can enquire through RobotAIGeek for current pricing.
What is the PIR-300 used for?
The PIR-300 is designed for inspection, monitoring, patrol, and autonomous substation inspection and meter reading. It is used in energy settings.
What is the battery life of the PIR-300?
The PIR-300 runs for about 480 minutes on a charge.
COMPARE WITH SIMILAR ROBOTS
See how this robot stacks up against its closest alternatives

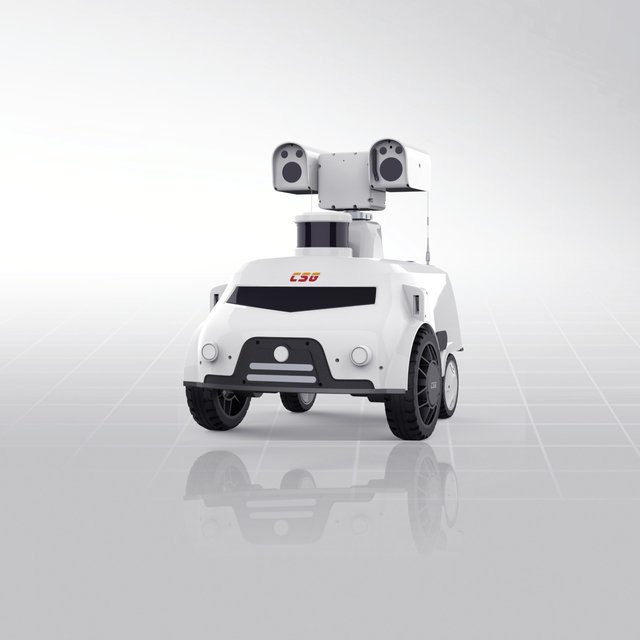

- PIR-300 vs Outdoor Wheeled Inspection Robot (T200 / TS210)
