DESCRIPTION
Peitian AIR15-950/3 is an Industrial-Robot from Peitian Robot. It is built for Assembly, Pick-and-place, Loading and unloading. Key figures: 60 kg, 15 kg payload, 947 mm reach, 3 degrees of freedom.

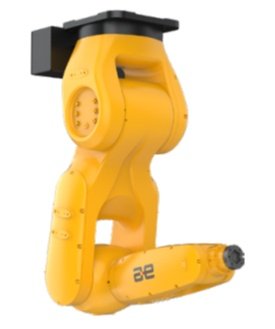

The AIR15-950/3 is a medium-payload six-axis articulated arm from Peitian's AIR range, carrying 15 kg to a reach of 947 mm. Peitian quotes position repeatability of ±0.025mm, which is the figure that decides whether an arm of this size can be trusted on close-tolerance work rather than only on gross handling. The manipulator weighs 60 kg. It is sealed to IP65(Wrist: IP67) / ISO5, and can be mounted ceiling. It runs on Peitian's inCube20 / ARC5-12 controller cabinet.
FEATURES
- Six-axis articulated industrial robot arm
- Rated payload 15 kg
- Maximum reach 947 mm
- Manipulator weight 60 kg
- Position repeatability ±0.025mm
- Ingress protection IP65(Wrist: IP67) / ISO5
- Mounting: ceiling
- Compatible controller cabinets: inCube20 / ARC5-12
- Working range Axis 1 rotation -95°/+135°
- Axis 2 arm -95°/+135°
- Axis 3 arm -120°/+156°
- Axis 4 wrist -120°/+156°
- Axis 5 bend -135°/+135°
- Axis 6 turn -135°/+135°
- Rotation rate Axis 1 rotation 320°/s
- Axis 2 arm 320°/s
- Axis 3 arm 350°/s
- Axis 4 wrist 350°/s
- Axis 5 bend 565°/s
- Axis 6 turn 565°/s
- Ambient temperature 0 to 45 degrees Celsius, humidity up to 95% non-condensing, altitude up to 1000 m
- No corrosive, flammable or explosive gases permitted in the operating environment
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 60 kg |
|---|---|
| Payload | 15 kg |
| Reach | 947 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 3 |
| Manipulation | High |
| Environment | Industrial indoor use, 0 to 45 degrees Celsius, humidity up to 95% non-condensing, altitude up to 1000 m; no corrosive, flammable or explosive gases |
| Actuators | 3-axis six-axis articulated manipulator, mounted ceiling |
| Sensing & Compute | |
| Software / AI | Driven by Peitian inCube20 / ARC5-12 controller cabinets |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 60 kg |
|---|---|
| Payload | 15 kg |
| Reach | 947 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 3 |
| Manipulation | High |
| Environment | Industrial indoor use, 0 to 45 degrees Celsius, humidity up to 95% non-condensing, altitude up to 1000 m; no corrosive, flammable or explosive gases |
| Actuators | 3-axis six-axis articulated manipulator, mounted ceiling |
| Sensing & Compute | |
| Software / AI | Driven by Peitian inCube20 / ARC5-12 controller cabinets |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Peitian AIR15-950/3?
The AIR15-950/3 is a medium-payload six-axis articulated arm from Peitian's AIR range, carrying 15 kg to a reach of 947 mm. Peitian quotes position repeatability of ±0.025mm, which is the figure that decides whether an arm of this size can be trusted on close-tolerance work rather than only on gross handling.
Who makes the Peitian AIR15-950/3?
The Peitian AIR15-950/3 is made by Peitian Robot, a robotics company based in China.
How much does the Peitian AIR15-950/3 cost?
Peitian Robot has not publicly announced pricing for the Peitian AIR15-950/3. You can enquire through RobotAIGeek for current pricing.
What is the Peitian AIR15-950/3 used for?
The Peitian AIR15-950/3 is designed for assembly, pick-and-place, loading and unloading, and handling. It is used in research and manufacturing settings.
What is the payload capacity of the Peitian AIR15-950/3?
The Peitian AIR15-950/3 has a payload capacity of 15 kg and a reach of 947 mm.
How much does the Peitian AIR15-950/3 weigh?
The Peitian AIR15-950/3 weighs 60 kg.
How many degrees of freedom does the Peitian AIR15-950/3 have?
The Peitian AIR15-950/3 has 3 degrees of freedom.
