DESCRIPTION

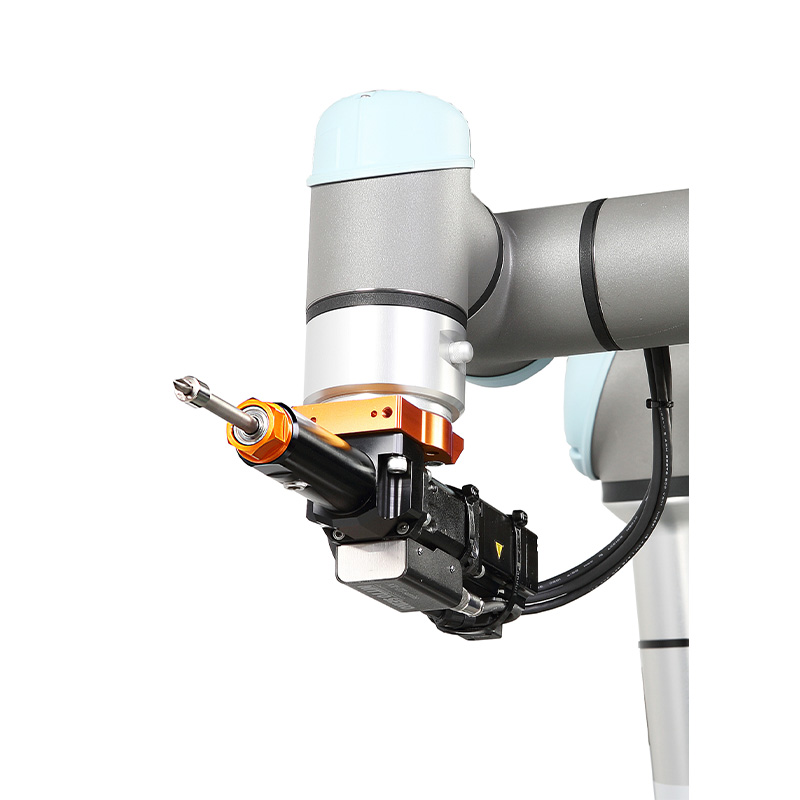

PD400UR is Nitto Seiko's UR+ certified screwdriving unit for Universal Robots collaborative arms (magnet or vacuum bit). It pairs NX-series drivers with the SD600T controller for teach-pendant setup and rundown data — an EOAT/unit, not a standalone robot arm.
FEATURES
- Torque 0.5–6.0 N·m
- Max 1100 rpm
- Screws M2.5–M5 (length ≤15 mm)
- Unit mass 1.6–1.8 kg
- Controller SD600T ~1.4 kg
- ISO 9409-1-50-4-M6 flange
- URCap NS SD600T
- Polyscope 5.4+
- Magnet (PD400URM) / vacuum (PD400URV) variants
- First Japanese-made UR+ screwdriving unit
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 1.7 kg |
|---|---|
| Mobility | |
| Movement Type | Stationary |
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 1.7 kg |
|---|---|
| Mobility | |
| Movement Type | Stationary |
Images
martti
Image Contributions
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the PD400UR?
PD400UR is Nitto Seiko's UR+ certified screwdriving unit for Universal Robots collaborative arms (magnet or vacuum bit). It pairs NX-series drivers with the SD600T controller for teach-pendant setup and rundown data — an EOAT/unit, not a standalone robot arm.
Who makes the PD400UR?
The PD400UR is made by Nitto Seiko America, a robotics company based in United States.
How much does the PD400UR cost?
Nitto Seiko America has not publicly announced pricing for the PD400UR. You can enquire through RobotAIGeek for current pricing.
What is the PD400UR used for?
The PD400UR is designed for assembly and pick-and-place. It is used in automotive, electronics, and manufacturing settings.
How much does the PD400UR weigh?
The PD400UR weighs 1.7 kg.
When was the PD400UR released?
The PD400UR was released in 2021.
