DESCRIPTION
PA-AMR Extra High Capacity Model is a Mobile-Robots from Rapyuta Robotics. It is built for Intralogistics, Picking, Transport. Key figures: 63 kg, 480 min runtime, 39.2 kg payload.

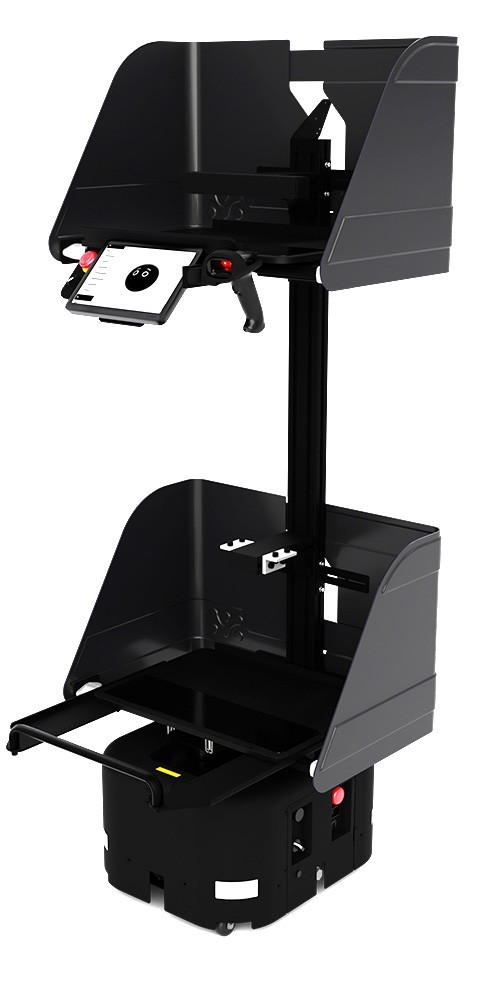

The Rapyuta PA-AMR Extra High Capacity Model is the largest of Rapyuta's pick-assist robots, adding a middle container position so it carries three 75-litre totes for picking bulky items such as shoes and apparel in volume. Like the other PA-AMRs it guides pickers along AI-planned routes and carries the picked items, with a touch screen, barcode scanner, E-stop and indicator LEDs between its trays. It carries 39.2 kg, weighs about 63 kg, travels at up to 1.2 m/s (adjustable), runs about eight hours with two-hour charging and operates at 0-40 C; Rapyuta recommends it for sites with more than about 1,000 m2 of picking space and seven or more pickers.
FEATURES
- Capacity 3 x 75 L totes (adds middle container position)
- payload 39.2 kg
- Max speed 1.2 m/s (adjustable)
- Weight about 63 kg
- About 8 h operation
- 2 h charging
- Touch screen, barcode scanner, E-stop, indicator LEDs
- Operating 0-40 C
- 0-80 % RH
- Suits >10,000 sq ft picking space, 7+ pickers
- minimum aisle 4 ft (tentative)
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 63 kg |
|---|---|
| Payload | 39.2 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 4.32 km/h |
| Environment | Indoor logistics warehouses, 0-40 C, 0-80 % RH non-condensing |
| Power | |
| Battery Life | 480 min |
| Charging Type | Charging station; 2 h |
| Sensing & Compute | |
| Sensors | LiDAR, 3D cameras, barcode scanner |
| Connectivity | rapyuta.io cloud fleet management |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 63 kg |
|---|---|
| Payload | 39.2 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 4.32 km/h |
| Environment | Indoor logistics warehouses, 0-40 C, 0-80 % RH non-condensing |
| Power | |
| Battery Life | 480 min |
| Charging Type | Charging station; 2 h |
| Sensing & Compute | |
| Sensors | LiDAR, 3D cameras, barcode scanner |
| Connectivity | rapyuta.io cloud fleet management |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the PA-AMR Extra High Capacity Model?
The Rapyuta PA-AMR Extra High Capacity Model is the largest of Rapyuta's pick-assist robots, adding a middle container position so it carries three 75-litre totes for picking bulky items such as shoes and apparel in volume.
Who makes the PA-AMR Extra High Capacity Model?
The PA-AMR Extra High Capacity Model is made by Rapyuta Robotics, a robotics company based in Japan.
How much does the PA-AMR Extra High Capacity Model cost?
Rapyuta Robotics has not publicly announced pricing for the PA-AMR Extra High Capacity Model. You can enquire through RobotAIGeek for current pricing.
What is the PA-AMR Extra High Capacity Model used for?
The PA-AMR Extra High Capacity Model is designed for intralogistics, picking, transport, and warehouse automation. It is used in warehouse & logistics and retail settings.
What is the payload capacity of the PA-AMR Extra High Capacity Model?
The PA-AMR Extra High Capacity Model has a payload capacity of 39.2 kg.
How much does the PA-AMR Extra High Capacity Model weigh?
The PA-AMR Extra High Capacity Model weighs 63 kg.
How fast is the PA-AMR Extra High Capacity Model?
The PA-AMR Extra High Capacity Model can move at speeds of up to 4.32 km/h.
What is the battery life of the PA-AMR Extra High Capacity Model?
The PA-AMR Extra High Capacity Model runs for about 480 minutes on a charge.
