DESCRIPTION
H1 Healthcare Shuttle AGV is a Mobile-Robots from Muratec. It is built for Intralogistics, Material-Handling, Transport. Key figures: 800 kg payload.

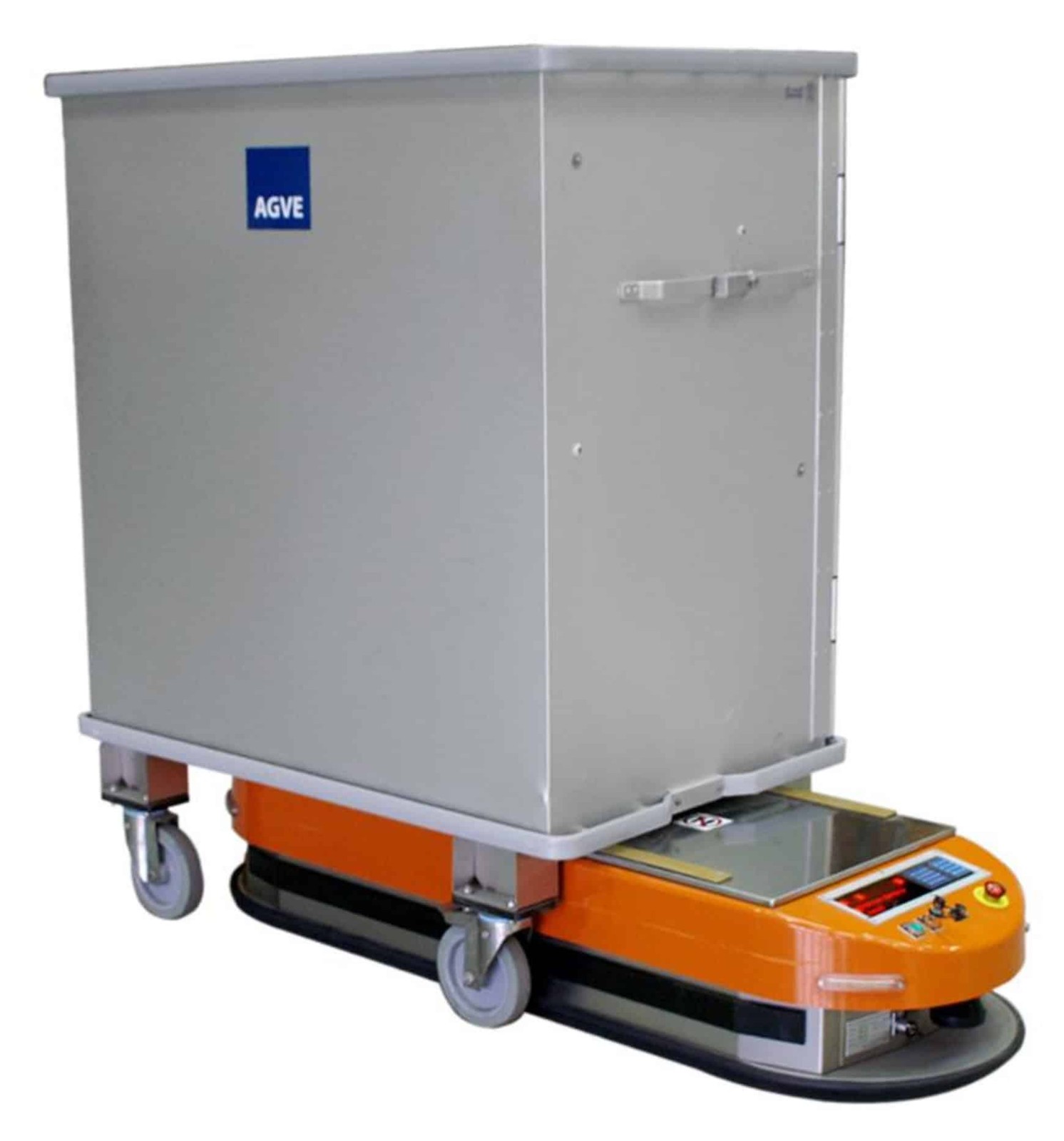

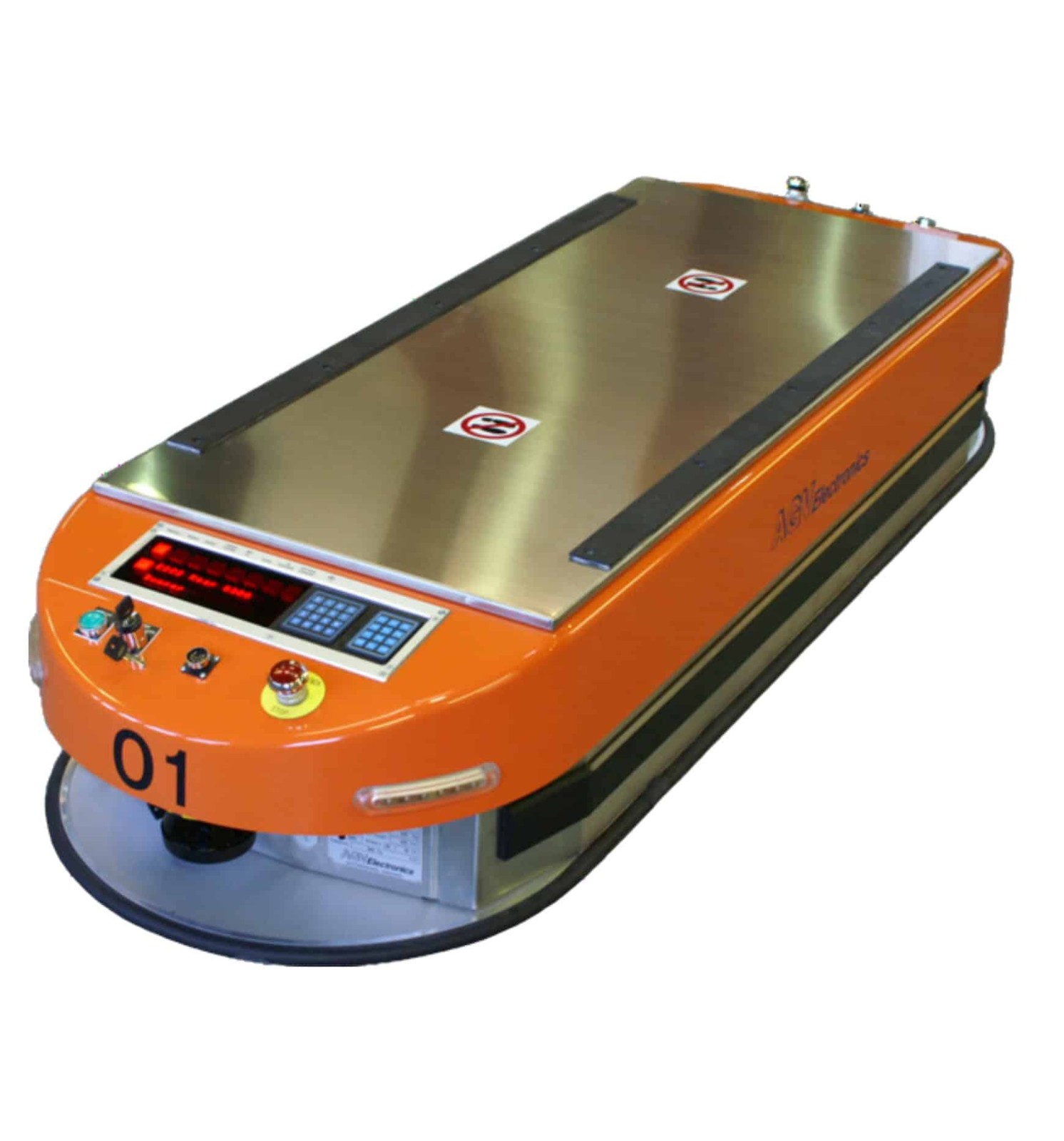

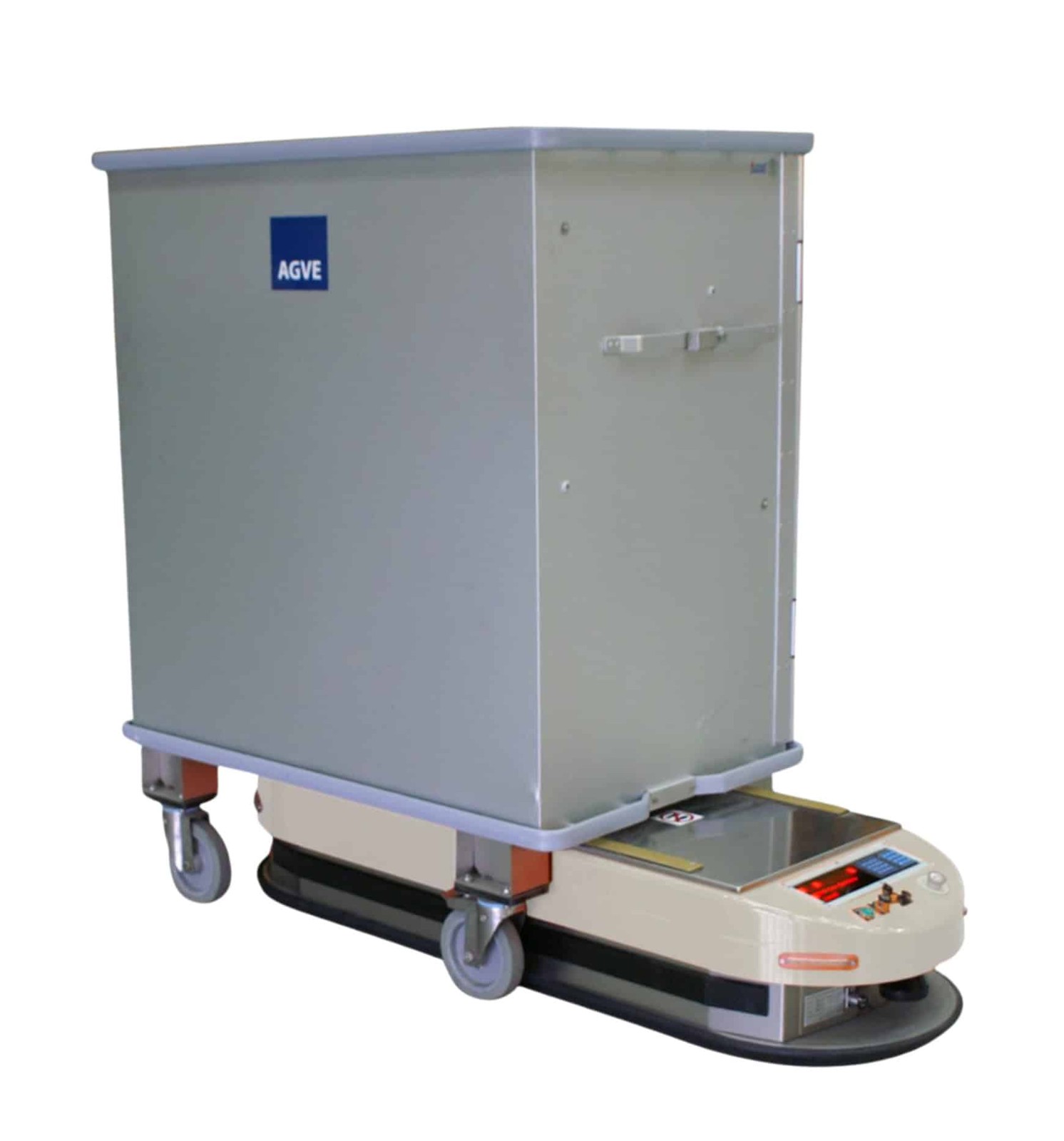

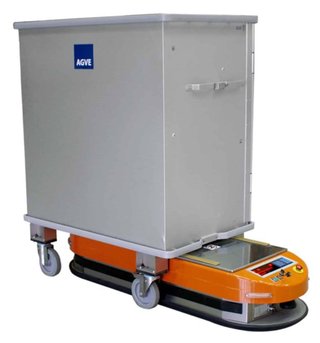

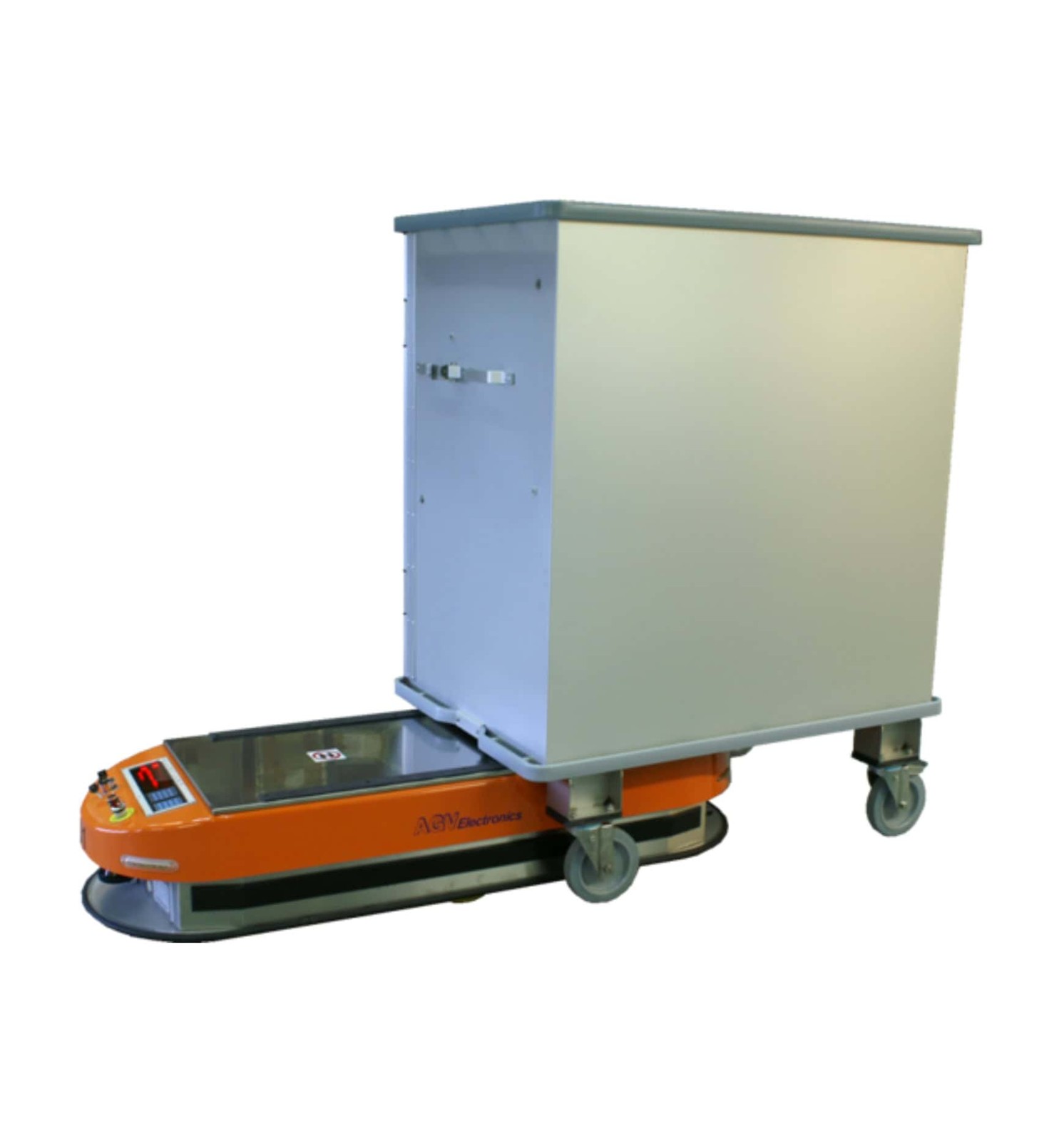

The Muratec H1 is a low-profile lift-deck AGV from the H-Series, designed for lifting and non-lifting transport in hospitals, other healthcare facilities and busy, high-traffic areas. It automates the daily cart and tugging runs, extending transport to 24/7 operation and freeing staff to focus on patient care. A smart control system with virtual path navigation suits low-profile, multi-channel intralogistics routes. Navigation can be by contour, inductive wire, inertial, laser, magnetic tape, magnetic spot, painted line or QR code. It is offered with a lift deck, a roller conveyor or custom features. It is Class 1 (0.1 micron) clean-factory compliant, so it also serves semiconductor clean rooms. Specifications: up to 90 m/min travel, up to 800 kg load, up to 490 mm lift stroke, a 24 V / 72 Ah lithium battery with opportunity charging, and operation at 0-40 C.
FEATURES
- Low-profile lift-deck AGV for hospital cart and tugging transport, 24/7
- Virtual path navigation
- contour, wire, inertial, laser, magnetic tape/spot, painted line or QR code
- Lift deck (LD), roller conveyor (RC) or custom (CTM) configurations
- Up to 90 m/min
- up to 800 kg
- lift stroke up to 490 mm
- 24 V / 72 Ah lithium battery
- opportunity charging
- 0-40 C
- Class 1 (0.1 micron) clean-factory compliant
TECHNICAL SPECIFICATIONS
| Physical | |
| Payload | 800 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Hospitals and healthcare facilities, high-traffic corridors, semiconductor clean rooms (Class 1) |
| Actuators | Lift deck (up to 490 mm stroke) |
| Power | |
| Battery Life | 24 V / 72 Ah lithium |
TECHNICAL SPECIFICATIONS
| Physical | |
| Payload | 800 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Hospitals and healthcare facilities, high-traffic corridors, semiconductor clean rooms (Class 1) |
| Actuators | Lift deck (up to 490 mm stroke) |
| Power | |
| Battery Life | 24 V / 72 Ah lithium |
Images
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the H1 Healthcare Shuttle AGV?
The Muratec H1 is a low-profile lift-deck AGV from the H-Series, designed for lifting and non-lifting transport in hospitals, other healthcare facilities and busy, high-traffic areas. It automates the daily cart and tugging runs, extending transport to 24/7 operation and freeing staff to focus on patient care.
Who makes the H1 Healthcare Shuttle AGV?
The H1 Healthcare Shuttle AGV is made by Muratec, a robotics company based in Japan.
How much does the H1 Healthcare Shuttle AGV cost?
Muratec has not publicly announced pricing for the H1 Healthcare Shuttle AGV. You can enquire through RobotAIGeek for current pricing.
What is the H1 Healthcare Shuttle AGV used for?
The H1 Healthcare Shuttle AGV is designed for intralogistics, material-handling, transport, and hospital cart transport, clean-room transfer, production pick-up and delivery. It is used in healthcare and manufacturing settings.
What is the payload capacity of the H1 Healthcare Shuttle AGV?
The H1 Healthcare Shuttle AGV has a payload capacity of 800 kg.
How fast is the H1 Healthcare Shuttle AGV?
The H1 Healthcare Shuttle AGV can move at speeds of up to 5.4 km/h.
