P30Q

Yeefung

Industrial-Robot China

ChinaReleased

★Not rated yet

Compare

Sources:

yfagv.com

Industries:

Warehouse & Logistics Manufacturing

Uses:

Heavy-Load-Transportation Intralogistics Material-Handling TransportAutomated material handling

Price:

Not announced

Model:

Yeefung P30Q heavy-duty double-roller AGV (3 t)

DESCRIPTION

P30Q is an Industrial-Robot from Yeefung. It is built for Heavy-Load-Transportation, Intralogistics, Material-Handling. Key figures: 3000 kg payload.

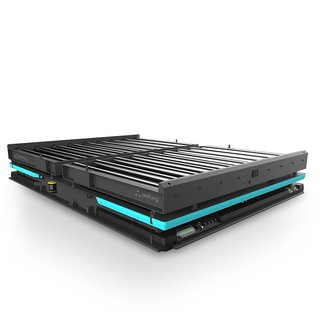

P30Q is an indoor heavy-duty AGV with two roller conveyors on top, so it can transfer several pallets at once, built on the chassis Yeefung developed for its parking AGVs. Four sets of differential drive wheels give it omnidirectional movement including crabbing and on-the-spot rotation, and laser plus magnetic-spot navigation positions it to +/-5 mm. It measures 3540 x 2680 x 570 mm, carries 3000 kg, travels at up to 3 m/s, and positions to +/-5mm. Power comes from a 48V Lithium 270Ah battery with automatic or manual charging; it communicates over WLAN, and E-stops, non-contact and mechanical protection plus a SZ-V04 laser obstacle scanner keep it safe.

FEATURES

Navigation accuracy +/-10mm
positioning accuracy +/-5mm
Navigation: Laser navigation + Magnetic Spot
Walking function: Forward, backward, turning, self-rotation, crabwise, S shape
Drive mode: Four sets of differential drive wheels
Rated Payload: 3000kg
Size: 3540mm(L) x 2680mm(W) x 570mm(H)
Brake: Electromagnetic brake
Driving speed(MAX): 3m/s
Turning speed(MAX): 1m/s(MAX)
Distance between AGV chassis and ground: 30mm
Gradeability: 3%
Driving motor: 8*1260W
Roller motor: 2*750W
Charger power: 5KW
Battery: 48V Lithium 270Ah
Laser obstacle avoidance device: SZ-V04
Safety: E-stop,Non-contact protection,mechanical protection
sensing range 0-8m(Adjustable)

TECHNICAL SPECIFICATIONS

Verified

Physical
Dimensions	L 3.54 m × W 2.68 m × H 570 mm
Payload	3000 kg
Repeatability	±5 mm
Mobility
Movement Type	Wheeled
Speed	10.8 km/h
Environment	Indoor factories and warehouses
Actuators	Four sets of differential drive wheels
Power
Battery Life	48V Lithium 270Ah
Charging Type	Automatic / manual charging
Sensing & Compute
Sensors	Laser navigation + Magnetic Spot sensors, SZ-V04 laser obstacle scanner
Connectivity	WLAN

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

TECHNICAL SPECIFICATIONS

Verified

Physical
Dimensions	L 3.54 m × W 2.68 m × H 570 mm
Payload	3000 kg
Repeatability	±5 mm
Mobility
Movement Type	Wheeled
Speed	10.8 km/h
Environment	Indoor factories and warehouses
Actuators	Four sets of differential drive wheels
Power
Battery Life	48V Lithium 270Ah
Charging Type	Automatic / manual charging
Sensing & Compute
Sensors	Laser navigation + Magnetic Spot sensors, SZ-V04 laser obstacle scanner
Connectivity	WLAN

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

FREQUENTLY ASKED QUESTIONS

What is the P30Q?

P30Q is an indoor heavy-duty AGV with two roller conveyors on top, so it can transfer several pallets at once, built on the chassis Yeefung developed for its parking AGVs.

Who makes the P30Q?

The P30Q is made by Yeefung, a robotics company based in China.

How much does the P30Q cost?

Yeefung has not publicly announced pricing for the P30Q. You can enquire through RobotAIGeek for current pricing.

What is the P30Q used for?

The P30Q is designed for heavy-load-transportation, intralogistics, material-handling, and transport. It is used in warehouse & logistics and manufacturing settings.
