P30

Yeefung

Industrial-Robot China

ChinaReleased

★Not rated yet

Compare

Sources:

yfagv.com

Industries:

Warehouse & Logistics Manufacturing

Uses:

Heavy-Load-Transportation Intralogistics Material-Handling TransportAutomated material handling

Price:

Not announced

Model:

Yeefung P30 heavy-duty lifting AGV (3-5 t)

DESCRIPTION

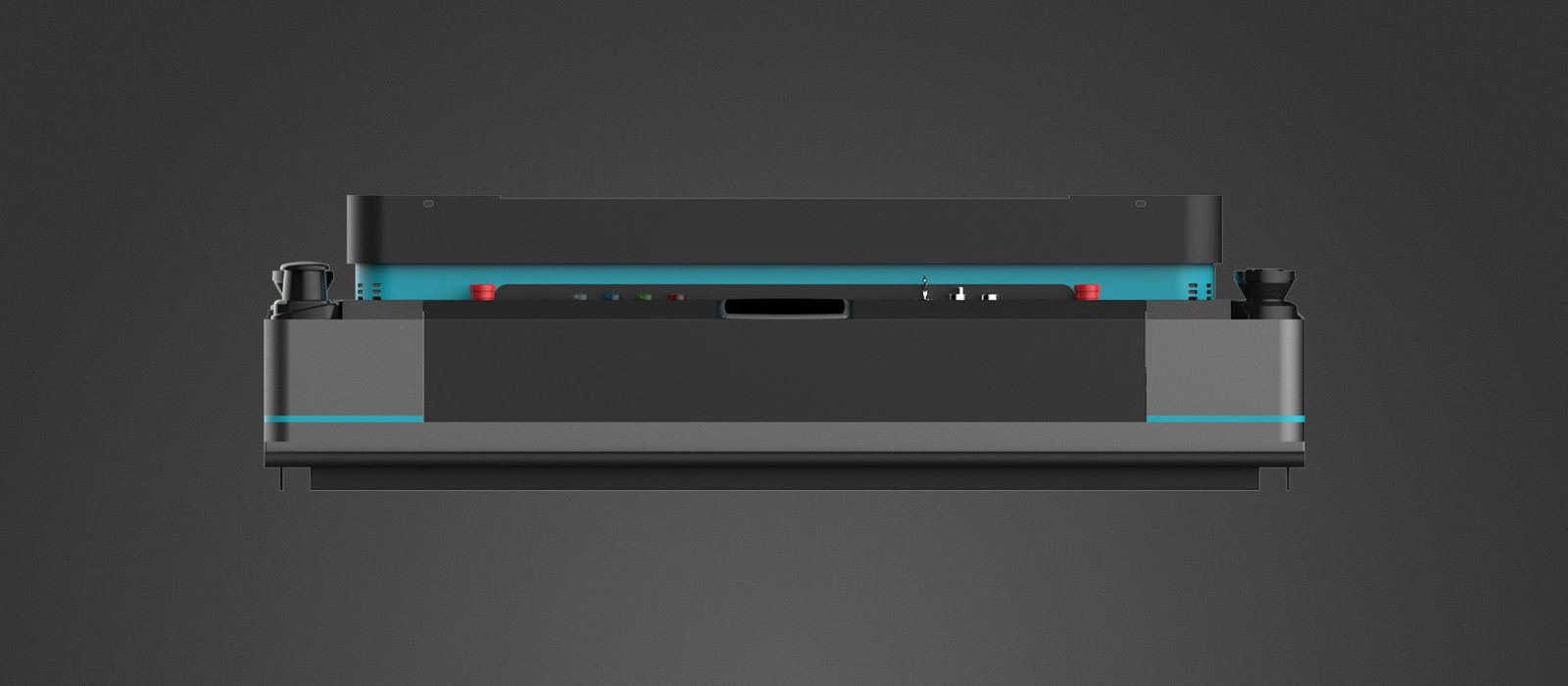

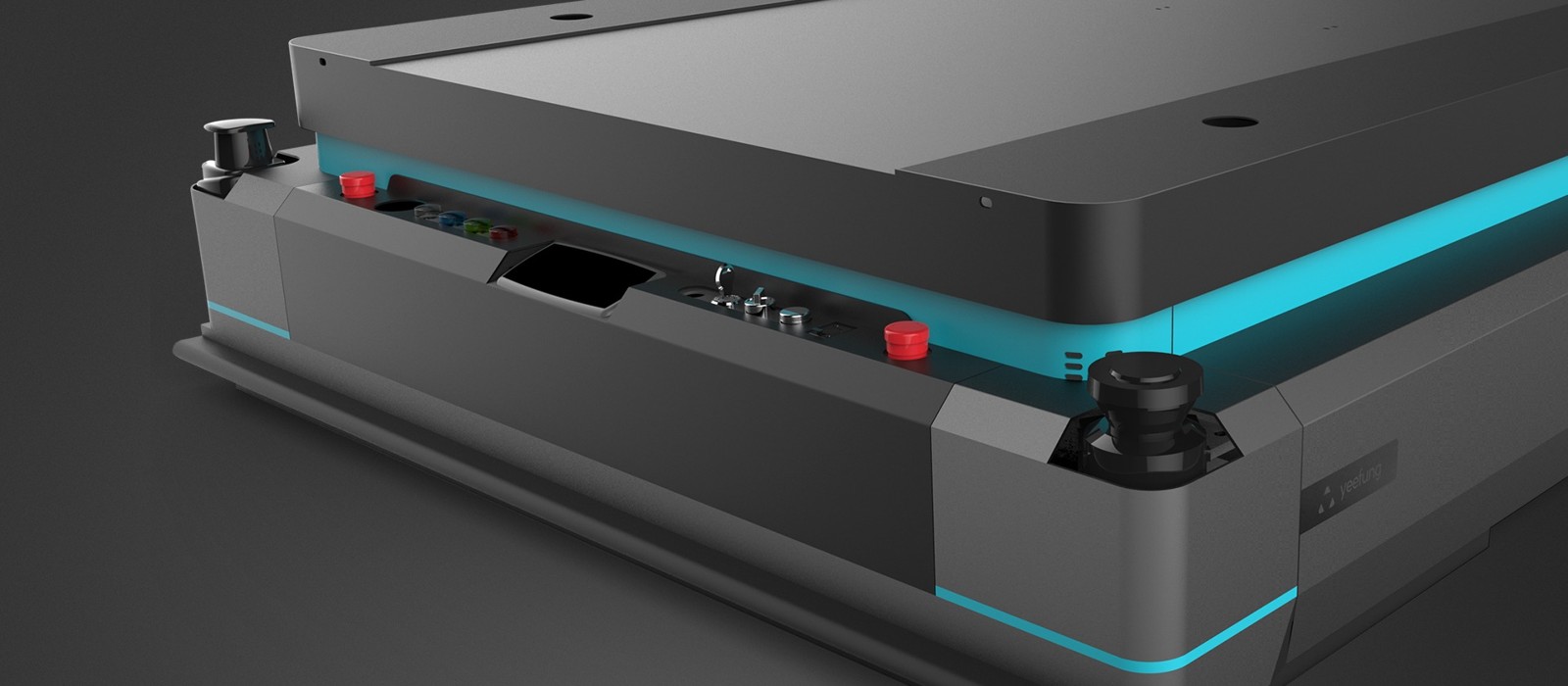

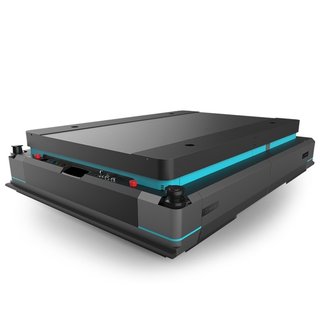

P30 is an Industrial-Robot from Yeefung. It is built for Heavy-Load-Transportation, Intralogistics, Material-Handling. Key figures: 2000 kg, 3000 kg payload.

P30 is a heavy-duty lifting AGV for logistics with a 3-tonne rated payload (Yeefung describes the platform as 3-5 t), built on the proven chassis of the company's car-parking AGVs. It combines laser navigation with magnetic-spot navigation for +/-5 mm positioning, and its quad steering drive lets it move omnidirectionally - forward, backward, turning, rotating on the spot, crabbing sideways and S-shaped paths - in compact factories. It measures 2160 x 1600 x 477 mm, weighs 2000 kg, carries 3000 kg, travels at up to 1.5 m/s, and positions to +/-5mm. Power comes from a 48V Lithium iron phosphate 200Ah battery with automatic or manual charging; it communicates over WLAN, and E-stops, non-contact and mechanical protection plus a SICK S300 laser obstacle scanner keep it safe.

FEATURES

Navigation accuracy +/-10mm
positioning accuracy +/-5mm
Navigation: Laser navigation + Magnetic Spot
Walking function: Forward, backward, turning, self-rotation, crabwise, S shape
Drive mode: Quad
Rated payload: 3T
Size: 2160mm(L) x 1600mm(W) x 477mm(H)
Brake: Electromagnetic brake
Driving speed(MAX): 1.5m/s
Turning speed(MAX): 0.5m/s
Lifting speed(MAX): 0.2m/s(full loaded), 0.28m/s(no-load)
Drop speed(MAX): 0.25m/s
Rated Payload: 3000kg
Weight: 2000kg
Lifting height: 80mm
Distance between AGV chassis and ground: 30mm
Gradeability: 3%
Driving Motor: 3KW
Lifting Motor: 2KW
Charger power: 5KW
Battery: 48V Lithium iron phosphate 200Ah
Charging Mode: Automatic/Manual
aser obstacle avoidance device: SICK S300
Safety: -stop, contact-less protection, mechanical protection
sensing range 0-3m(Adjustable)

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	2000 kg
Dimensions	L 2.16 m × W 1.6 m × H 477 mm
Payload	3000 kg
Repeatability	±5 mm
Mobility
Movement Type	Wheeled
Speed	5.4 km/h
Environment	Indoor factories and warehouses
Actuators	Quad
Power
Battery Life	48V Lithium iron phosphate 200Ah
Charging Type	Automatic / manual charging
Sensing & Compute
Sensors	Laser navigation + Magnetic Spot sensors, SICK S300 laser obstacle scanner
Connectivity	WLAN

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	2000 kg
Dimensions	L 2.16 m × W 1.6 m × H 477 mm
Payload	3000 kg
Repeatability	±5 mm
Mobility
Movement Type	Wheeled
Speed	5.4 km/h
Environment	Indoor factories and warehouses
Actuators	Quad
Power
Battery Life	48V Lithium iron phosphate 200Ah
Charging Type	Automatic / manual charging
Sensing & Compute
Sensors	Laser navigation + Magnetic Spot sensors, SICK S300 laser obstacle scanner
Connectivity	WLAN

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

FREQUENTLY ASKED QUESTIONS

What is the P30?

P30 is a heavy-duty lifting AGV for logistics with a 3-tonne rated payload (Yeefung describes the platform as 3-5 t), built on the proven chassis of the company's car-parking AGVs.

Who makes the P30?

The P30 is made by Yeefung, a robotics company based in China.

How much does the P30 cost?

Yeefung has not publicly announced pricing for the P30. You can enquire through RobotAIGeek for current pricing.

What is the P30 used for?

The P30 is designed for heavy-load-transportation, intralogistics, material-handling, and transport. It is used in warehouse & logistics and manufacturing settings.
