OCME Auriga Shuttle Rack

DESCRIPTION

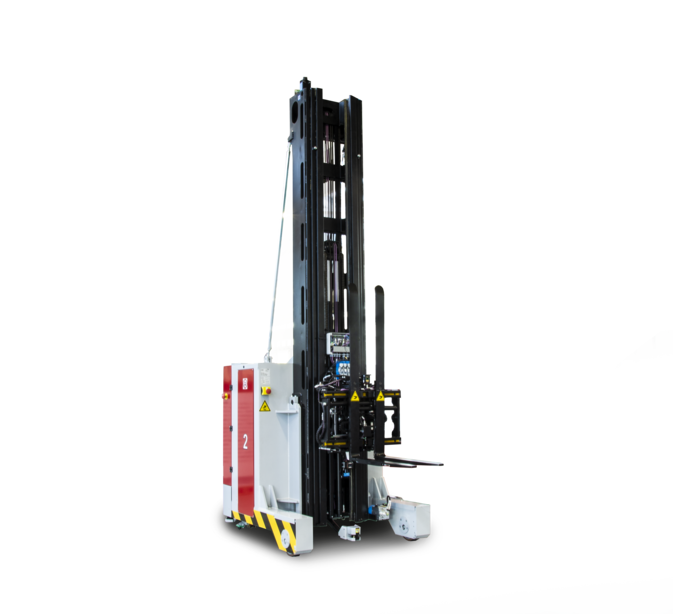

The Auriga Shuttle Rack is a high-precision laser guided forklift vehicle able to reach warehouse heights of up to 12 metres. Its forks are self-centring through a tilting system patented by OCME. Beyond handling material on pallets, it interacts with the shuttles of automatic warehouses, supporting dense storage with full traceability of what is present. It also manages movement to and from the production line and oversees dispatch areas. Maximum unit load runs from 1,400 kg down to 500 kg as height increases. The vehicle is 5,500 mm tall and 3,025 mm long, lifts to 12,000 mm with a maximum mast height of 12,830 mm, and carries 1,000 mm forks. It is a laser guided vehicle: a laser scanner reads reflectors placed around the building to fix its position, so routes are defined in software and can be changed without re-laying floor guides. Battery options run to waterless lead-acid, gel and pure-lead Nexsys packs, with automatic, manual or opportunity charging, and the fleet is coordinated through OCME's supervisor and warehouse management system.
