DESCRIPTION

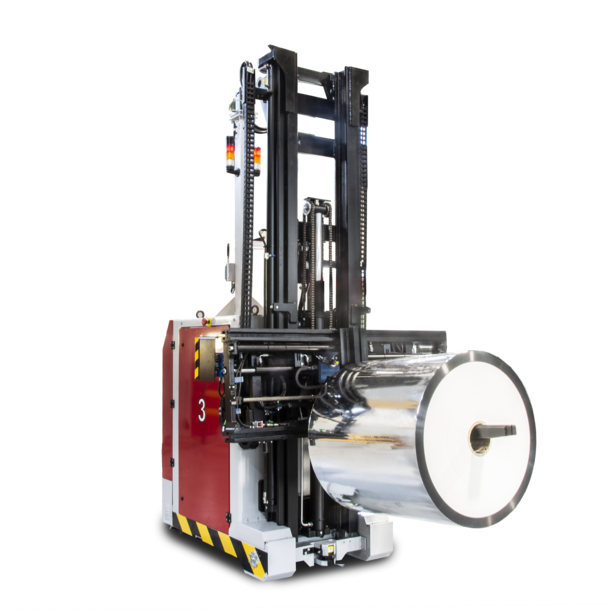

The Auriga Pole Reel is a laser guided vehicle patented by OCME exclusively for handling industrial reels, aimed at manufacturers of flexible packaging material. It grips a reel two ways. The first joins the forks together so they enter the core of the reel and lift it for movement through the production area. The second lifts the reel on a bar inserted through its core. The vehicle is built for precision and can also serve shelving up to 9 metres high. It carries a maximum unit load of 1,000 kg, stands 3,500 mm tall, lifts to 6,000 mm with a maximum mast height of 6,670 mm, and has 1,150 mm forks. It is a laser guided vehicle: a laser scanner reads reflectors placed around the building to fix its position, so routes are defined in software and can be changed without re-laying floor guides. Battery options run to waterless lead-acid, gel and pure-lead Nexsys packs, with automatic, manual or opportunity charging, and the fleet is coordinated through OCME's supervisor and warehouse management system.
FEATURES
- Laser guided vehicle patented by OCME exclusively for industrial reels.
- Two gripping methods - joined forks through the reel core, or a bar through the core.
- Maximum unit load 1,000 kg.
- 3,500 mm tall
- lifts to 6,000 mm, maximum mast height 6,670 mm.
- Serves shelving up to 9 metres.
- 1,150 mm forks.
- Aimed at flexible packaging material manufacturers.
- Laser navigation against wall reflectors
- routes reconfigured in software.
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | H 3.5 m |
|---|---|
| Payload | 1000 kg |
| Mobility | |
| Movement Type | Wheeled |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | H 3.5 m |
|---|---|
| Payload | 1000 kg |
| Mobility | |
| Movement Type | Wheeled |
Images
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the OCME Auriga Pole Reel?
The Auriga Pole Reel is a laser guided vehicle patented by OCME exclusively for handling industrial reels, aimed at manufacturers of flexible packaging material. It grips a reel two ways. The first joins the forks together so they enter the core of the reel and lift it for movement through the production area.
Who makes the OCME Auriga Pole Reel?
The OCME Auriga Pole Reel is made by OCME, a robotics company based in Italy.
How much does the OCME Auriga Pole Reel cost?
OCME has not publicly announced pricing for the OCME Auriga Pole Reel. You can enquire through RobotAIGeek for current pricing.
What is the OCME Auriga Pole Reel used for?
The OCME Auriga Pole Reel is designed for intralogistics, material-handling, and pallet-transportation. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the OCME Auriga Pole Reel?
The OCME Auriga Pole Reel has a payload capacity of 1,000 kg.
