DESCRIPTION

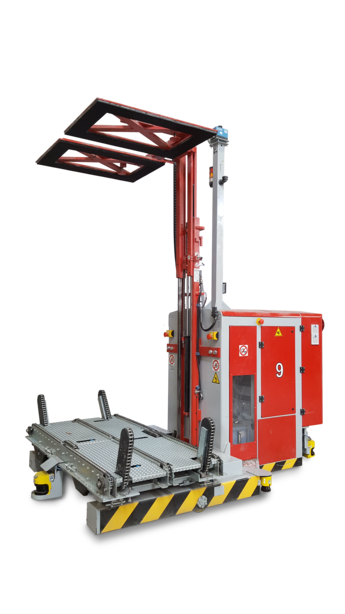

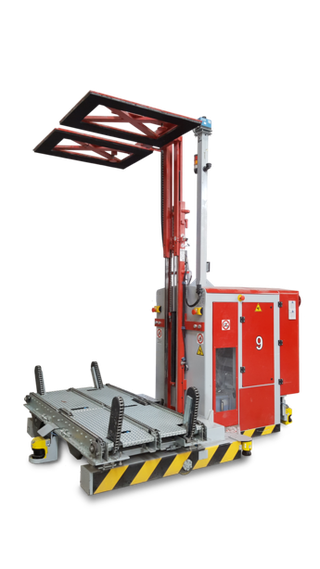

The Auriga C is OCME's range of laser guided vehicles fitted with on-board conveyors - chains, rollers or rubber belts - designed to move product from one fixed conveyor to another without a fork transfer. The range runs from the Auriga C1, carrying a single pallet at up to 1,500 kg, through the C2 at 3,000 kg, to the Auriga C4, which transports four pallets simultaneously at up to 5,000 kg. Because the vehicle handles the load on its own conveyor deck, it couples directly to line conveyors at pick-up and drop-off. It is a laser guided vehicle: a laser scanner reads reflectors placed around the building to fix its position, so routes are defined in software and can be changed without re-laying floor guides. Battery options run to waterless lead-acid, gel and pure-lead Nexsys packs, with automatic, manual or opportunity charging, and the fleet is coordinated through OCME's supervisor and warehouse management system.
FEATURES
- Laser guided vehicle with on-board chain, roller or rubber-belt conveyors.
- Moves product directly from one conveyor to another.
- Auriga C1 carries one pallet at up to 1,500 kg.
- Auriga C2 carries up to 3,000 kg.
- Auriga C4 carries four pallets simultaneously at up to 5,000 kg.
- Couples directly to production-line conveyors at both ends.
- Laser navigation against wall reflectors
- routes reconfigured in software.
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 5000 kg |
|---|---|
| Mobility | |
| Movement Type | Stationary |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 5000 kg |
|---|---|
| Mobility | |
| Movement Type | Stationary |
Images
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the OCME Auriga C?
The Auriga C is OCME's range of laser guided vehicles fitted with on-board conveyors - chains, rollers or rubber belts - designed to move product from one fixed conveyor to another without a fork transfer.
Who makes the OCME Auriga C?
The OCME Auriga C is made by OCME, a robotics company based in Italy.
How much does the OCME Auriga C cost?
OCME has not publicly announced pricing for the OCME Auriga C. You can enquire through RobotAIGeek for current pricing.
What is the OCME Auriga C used for?
The OCME Auriga C is designed for intralogistics, material-handling, and pallet-transportation. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the OCME Auriga C?
The OCME Auriga C has a payload capacity of 5,000 kg.
