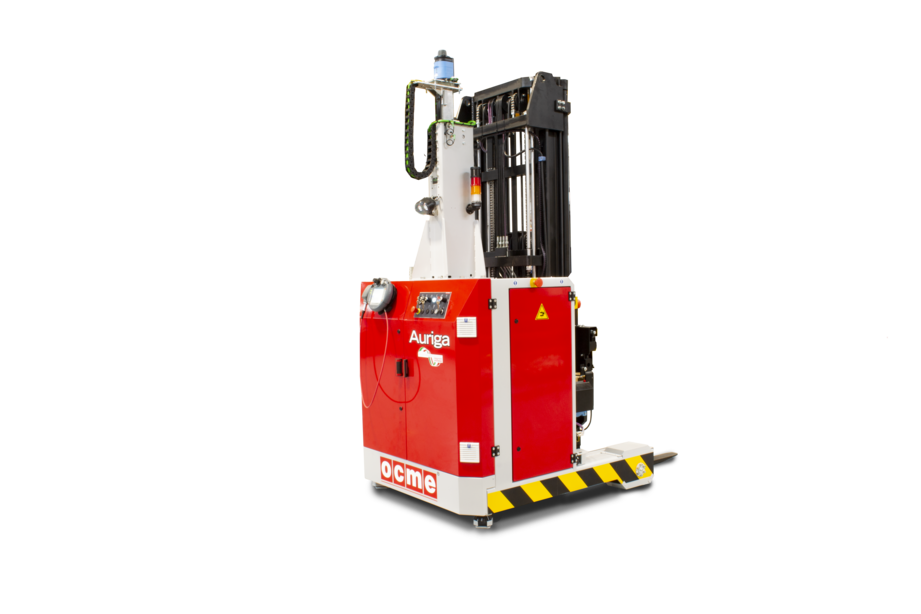

OCME Auriga 14RT-H

DESCRIPTION

The Auriga 14RT-H is OCME's fully automated industrial reach truck, carrying the company's navigation, handling and safety technology on an industrial-type chassis. It is built to work at significant height in reduced space. It handles a maximum unit load of 1,400 kg and lifts to 8,500 mm, working between shelving set 3,300 mm apart. The vehicle stands 2,700 mm tall, 2,540 mm long and 1,370 mm wide on a 1,313 mm wheelbase, weighs 3,665 kg with its battery, and travels at up to 1,700 mm/s with a fork lift speed of 200 mm/s. Its forks are 1,200 mm long with a 400 mm maximum mast range, and it runs on a 48 V / 620 Ah battery. It is a laser guided vehicle: a laser scanner reads reflectors placed around the building to fix its position, so routes are defined in software and can be changed without re-laying floor guides. Battery options run to waterless lead-acid, gel and pure-lead Nexsys packs, with automatic, manual or opportunity charging, and the fleet is coordinated through OCME's supervisor and warehouse management system.
