DESCRIPTION

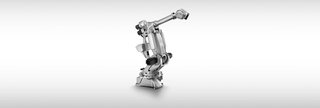

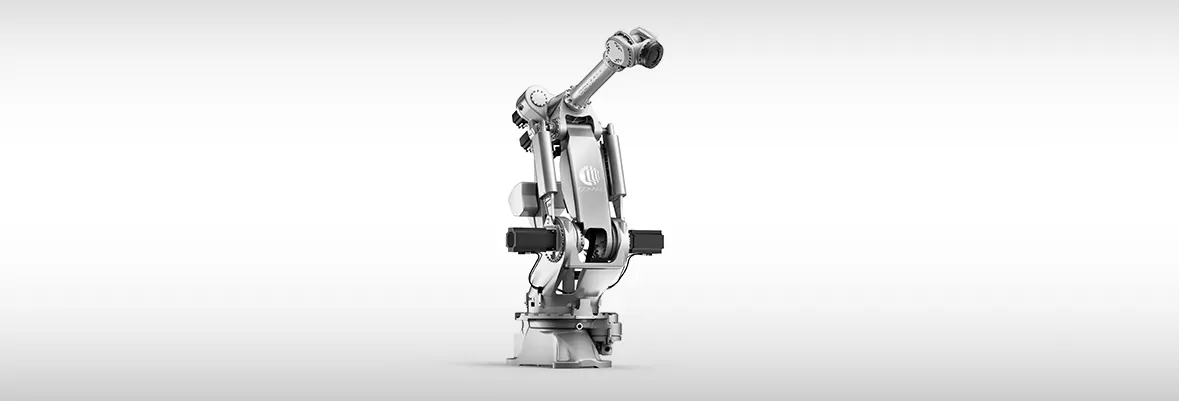

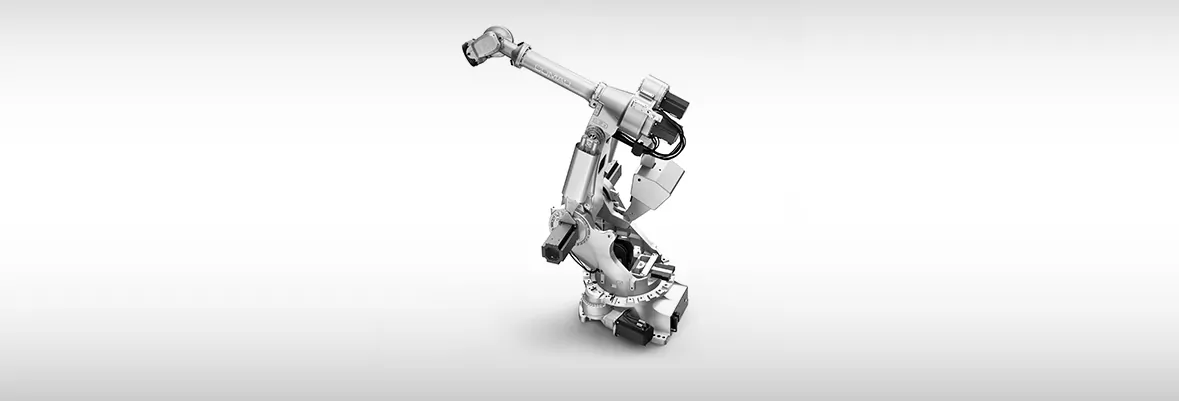

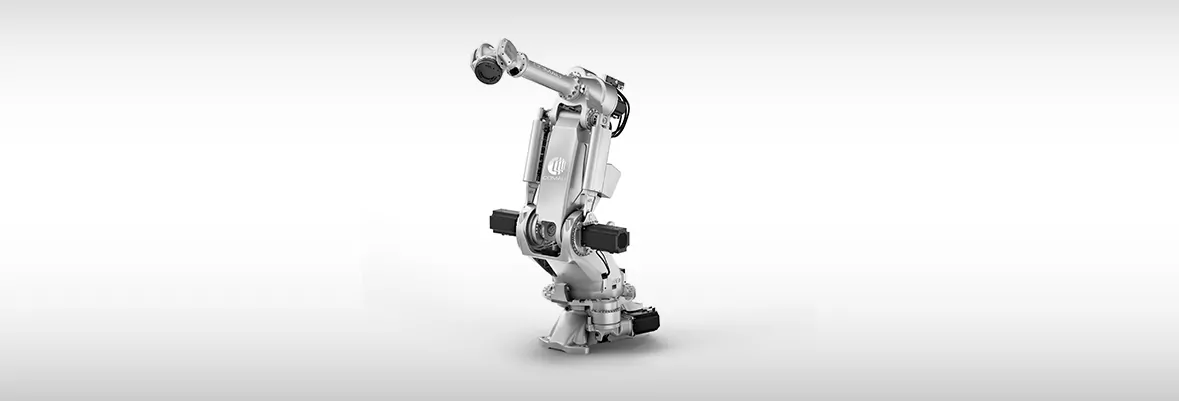

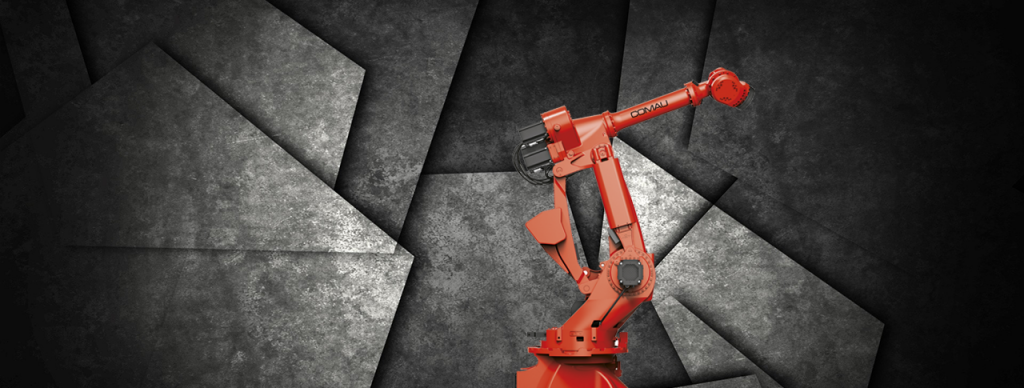

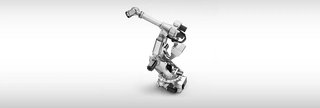

NJ-500-2.7 is an Industrial-Robot from Comau. It is built for Assembly, palletizing, Pick-and-place. Key figures: 2400 kg, 500 kg payload, 2703 mm reach, 6 degrees of freedom.
Comau's NJ-500-2.7 is a stationary industrial arm built for factory automation, supporting collaborative and mobile robotics integration across manufacturing environments.
FEATURES
- Comau NJ-500-2.7 is a six-axis industrial robot for manufacturing
- Handling and welding duty
- Engineered for high uptime and a compact installed footprint
- Technical specifications (Comau datasheet): maximum wrist payload 500 kg
- additional forearm load 50 kg
- maximum horizontal reach 2703 mm
- repeatability +/-0.15 mm
- robot weight 2400 kg
- 6 axes
- protection IP65 / IP67
- mounting Floor.
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 2400 kg |
|---|---|
| Payload | 500 kg |
| Reach | 2.7 m |
| Repeatability | ±0.15 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Manipulation | High |
| Environment | IP65 / IP67 |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 2400 kg |
|---|---|
| Payload | 500 kg |
| Reach | 2.7 m |
| Repeatability | ±0.15 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Manipulation | High |
| Environment | IP65 / IP67 |
Images





Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the NJ-500-2.7?
Comau's NJ-500-2.7 is a stationary industrial arm built for factory automation, supporting collaborative and mobile robotics integration across manufacturing environments.
Who makes the NJ-500-2.7?
The NJ-500-2.7 is made by Comau, a robotics company based in Italy.
How much does the NJ-500-2.7 cost?
Comau has not publicly announced pricing for the NJ-500-2.7. You can enquire through RobotAIGeek for current pricing.
What is the NJ-500-2.7 used for?
The NJ-500-2.7 is designed for assembly, palletizing, and pick-and-place. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the NJ-500-2.7?
The NJ-500-2.7 has a payload capacity of 500 kg and a reach of 2.7 m.
How much does the NJ-500-2.7 weigh?
The NJ-500-2.7 weighs 2,400 kg.
How many degrees of freedom does the NJ-500-2.7 have?
The NJ-500-2.7 has 6 degrees of freedom.
