DESCRIPTION
Nimbo is an Agricultural-Robots from Sveaverken. It is built for Agriculture. Key figures: 500 kg, 960 min runtime.

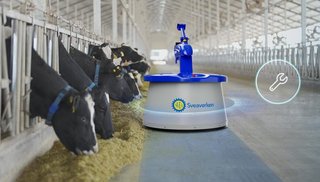

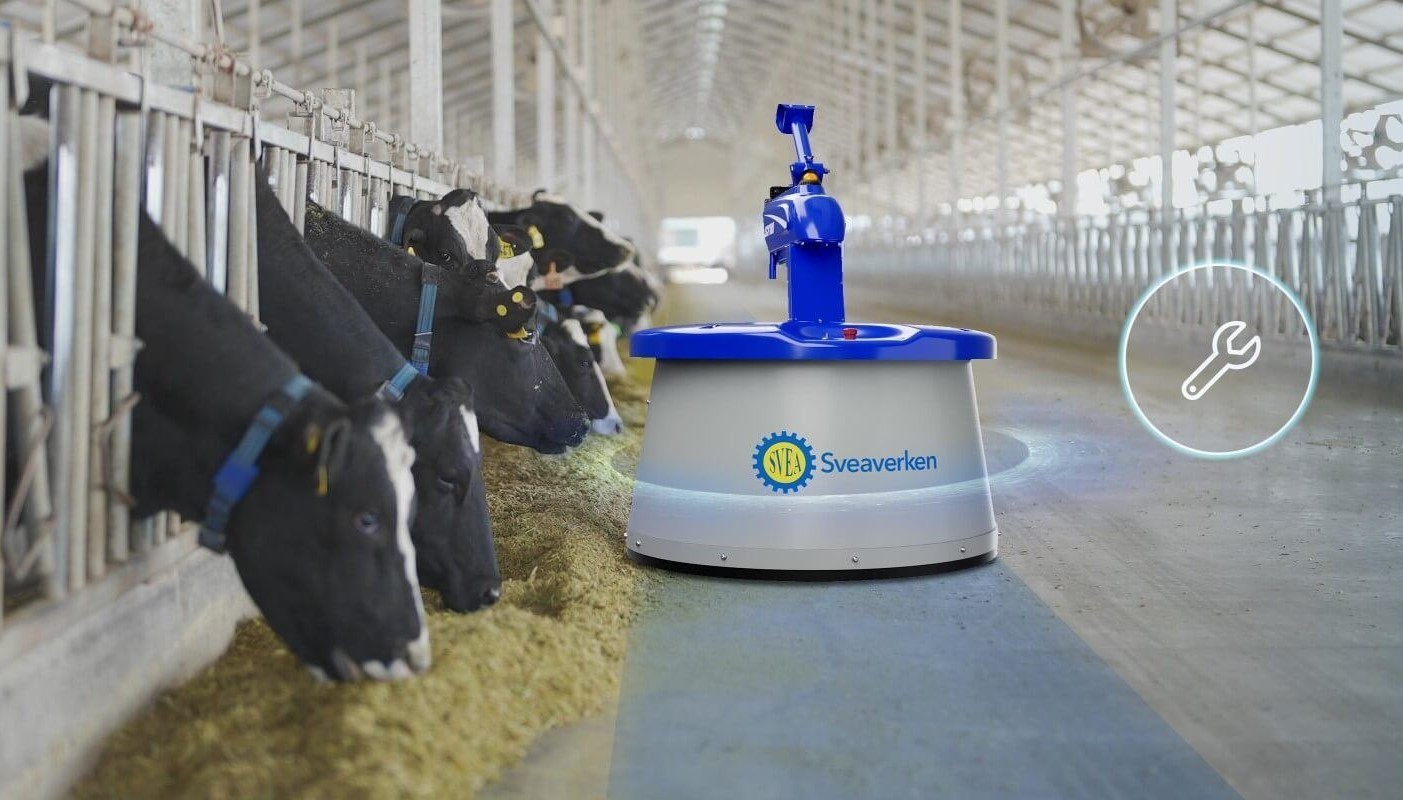

Nimbo is Sveaverken's self-navigating robotic feed pusher for cattle barns. It drives along the feed table and pushes feed back to the fence so cows can reach it, aiming to improve intake, animal well-being and milk production while cutting labour; Sveaverken says it replaces on average three workers and one tractor. It navigates by vision, with monocular and binocular cameras plus ultrasonic sensors, so no magnets are needed along the feed tables - only a short magnetic-nail path from the charging station and at turns - and installation takes a few hours. Two 400 W brushless motors drive it at 18 m/min, and a 48 V, 40 Ah lithium battery charges fully in 4 hours, uses under 5% per task and lasts two days of normal use or 16 hours non-stop, with automatic recharging after each run. A camera system and Wi-Fi give remote monitoring and control. The Nimbo Plus version adds a skirt-lift mechanism for slopes up to 27% (versus 10.5% for Nimbo) and a built-in music speaker as standard.
FEATURES
- Visual navigation: monocular + binocular cameras
- ultrasonic sensors
- Magnetic nails only from charging station and at turns
- Speed 18 m/min
- 2 x 400 W brushless drive motors
- Battery 48 V, 40 Ah lithium
- 0-100% in 4 h
- <5% per task
- Runtime 2 days of normal use or 16 h non-stop
- automatic recharging
- Slope 6 deg (10.5%)
- Nimbo Plus 15 deg (27%) with skirt lift
- Diameter 1,080 mm
- height 1,120 mm
- weight 500 kg
- 3 wheels
- Operating temperature -20 to 50 C
- rain-resistant
- Wi-Fi remote monitoring and control
- IoT
- OTA updates
- Built-in music speaker (standard on Nimbo Plus)
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 500 kg |
|---|---|
| Dimensions | L 1.08 m × W 1.08 m × H 1.12 m |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 1.08 km/h |
| Environment | Dairy and beef cattle barns: feed tables and alleys |
| Power | |
| Battery Life | 960 min |
| Charging Type | docking station |
| Sensing & Compute | |
| Sensors | monocular camera, binocular camera, ultrasonic sensors, magnetic sensor |
| Connectivity | Wi-Fi; IoT; OTA |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 500 kg |
|---|---|
| Dimensions | L 1.08 m × W 1.08 m × H 1.12 m |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 1.08 km/h |
| Environment | Dairy and beef cattle barns: feed tables and alleys |
| Power | |
| Battery Life | 960 min |
| Charging Type | docking station |
| Sensing & Compute | |
| Sensors | monocular camera, binocular camera, ultrasonic sensors, magnetic sensor |
| Connectivity | Wi-Fi; IoT; OTA |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Nimbo?
Nimbo is Sveaverken's self-navigating robotic feed pusher for cattle barns. It drives along the feed table and pushes feed back to the fence so cows can reach it, aiming to improve intake, animal well-being and milk production while cutting labour; Sveaverken says it replaces on average three workers and one tractor.
Who makes the Nimbo?
The Nimbo is made by Sveaverken, a robotics company based in Sweden.
How much does the Nimbo cost?
Sveaverken has not publicly announced pricing for the Nimbo. You can enquire through RobotAIGeek for current pricing.
What is the Nimbo used for?
The Nimbo is designed for agriculture. It is used in agriculture settings.
How much does the Nimbo weigh?
The Nimbo weighs 500 kg.
How fast is the Nimbo?
The Nimbo can move at speeds of up to 1.08 km/h.
What is the battery life of the Nimbo?
The Nimbo runs for about 960 minutes on a charge.
