DESCRIPTION
Navimow Terranox CM240M1 is a Mobile-Robots from Segway Robotics. It is built for Mapping, Navigation, Service. Key figures: 29.9 kg, 180 min runtime, released 2026.
The Segway Navimow Terranox CM240M1 is the larger of the two Terranox commercial robotic mowers, built for professional grounds care on sports turf, golf courses, city green spaces and corporate campuses. One unit covers up to 24,000 m² (about six acres), mowing at up to 1.0 m/s with a 43 cm (17 in) cut, which Navimow equates to a standard football pitch in a day. It uses the same platform as the Navimow X4: four-wheel drive with dual independent steering motors for slopes up to 84% (40°) and 7 cm obstacles (15 cm on gentle slopes), EFLS NRTK positioning that fuses Network RTK with 360° vision and visual-inertial odometry, and VisionFence obstacle avoidance with a 360° RGB camera and ToF sensor that recognises more than 200 obstacle types. No boundary wire or antenna is needed, and an optional signal-enhancement antenna is supported. Dual motors drive two floating, anti-clog discs with 12 blades at an automatic cutting height of 2 to 9.5 cm (0.75 to 4 in). The 25 Ah / 540 Wh battery gives 180 minutes and about 2,000 m² per charge and recharges in 180 minutes. Fleets of hundreds of mowers are managed from the NavimowFleet app and web portal. The CM240M1 weighs 29.95 kg, measures 850 x 610 x 351 mm, is rated IP66 and runs at 68 dB(A). The smaller CM120M1 covers 12,000 m².
FEATURES
- Commercial mowing up to 24,000 m² (about 6 acres)
- Mowing speed up to 1.0 m/s
- cutting width 43 cm (17 in)
- Dual motors, dual floating anti-clog discs, 12 blades
- Cutting height 2-9.5 cm (0.75-4 in), automatic adjustment
- No boundary wire or antenna
- signal-enhancement antenna supported
- EFLS NRTK: Network RTK + 360° vision + VIO
- VisionFence 360° RGB camera + ToF, 200+ obstacle types
- 4WD with dual independent steering motors
- Slopes up to 84% (40°)
- 7 cm obstacles (15 cm on gentle slopes)
- 25 Ah / 540 Wh battery: 180 min mowing, 2,000 m² per charge, 180 min charging
- NavimowFleet fleet management via app and web portal
- Rain sensor and weather forecast
- 120 zones
- GPS tracking and alarms
- IP66, 68 dB(A)
- 3.5-inch colour LCD
- Bluetooth, Wi-Fi and cellular
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 29.95 kg |
|---|---|
| Dimensions | L 850 mm × W 610 mm × H 351 mm |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3.6 km/h |
| Environment | Outdoor commercial turf; IP66; slopes up to 84% (40°); rain sensor |
| Power | |
| Battery Life | 180 minutes per charge (about 2,000 m²) |
| Charging Time | 180 minutes |
| Sensing & Compute | |
| Sensors | Network RTK GNSS, 360° RGB camera (VisionFence), ToF sensor, Rain sensor |
| Connectivity | Bluetooth, Wi-Fi, cellular (NRTK and Connect+ 2 years free) |
| Software / AI | Navimow app and NavimowFleet web portal (fleet monitoring, task assignment, remote map editing); OTA updates |
Videos
MEET THE NAVIMOW TERRANOX ROBOT MOWER 🤖 UNBOXING AND FIRST IMPRESSION
martti
Navimow Terranox Robotic Mower | Mow Up to 6 Acres | Authorized Dealer & Service Center
martti
Segway Navimow Terranox: Zippy Lawnz Full Review of the 3 & 6 Acre Commercial Mower
marttiROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 29.95 kg |
|---|---|
| Dimensions | L 850 mm × W 610 mm × H 351 mm |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3.6 km/h |
| Environment | Outdoor commercial turf; IP66; slopes up to 84% (40°); rain sensor |
| Power | |
| Battery Life | 180 minutes per charge (about 2,000 m²) |
| Charging Time | 180 minutes |
| Sensing & Compute | |
| Sensors | Network RTK GNSS, 360° RGB camera (VisionFence), ToF sensor, Rain sensor |
| Connectivity | Bluetooth, Wi-Fi, cellular (NRTK and Connect+ 2 years free) |
| Software / AI | Navimow app and NavimowFleet web portal (fleet monitoring, task assignment, remote map editing); OTA updates |

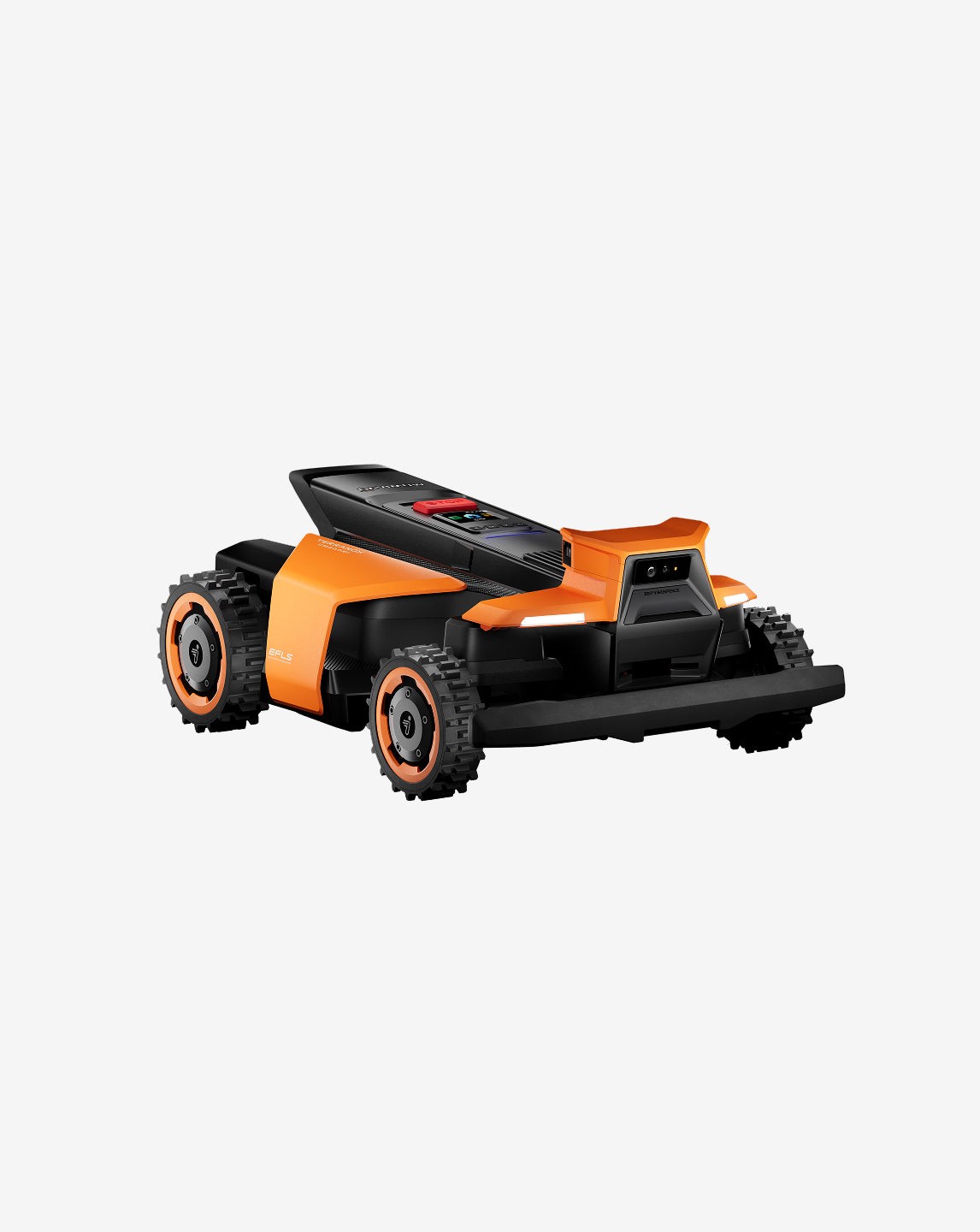

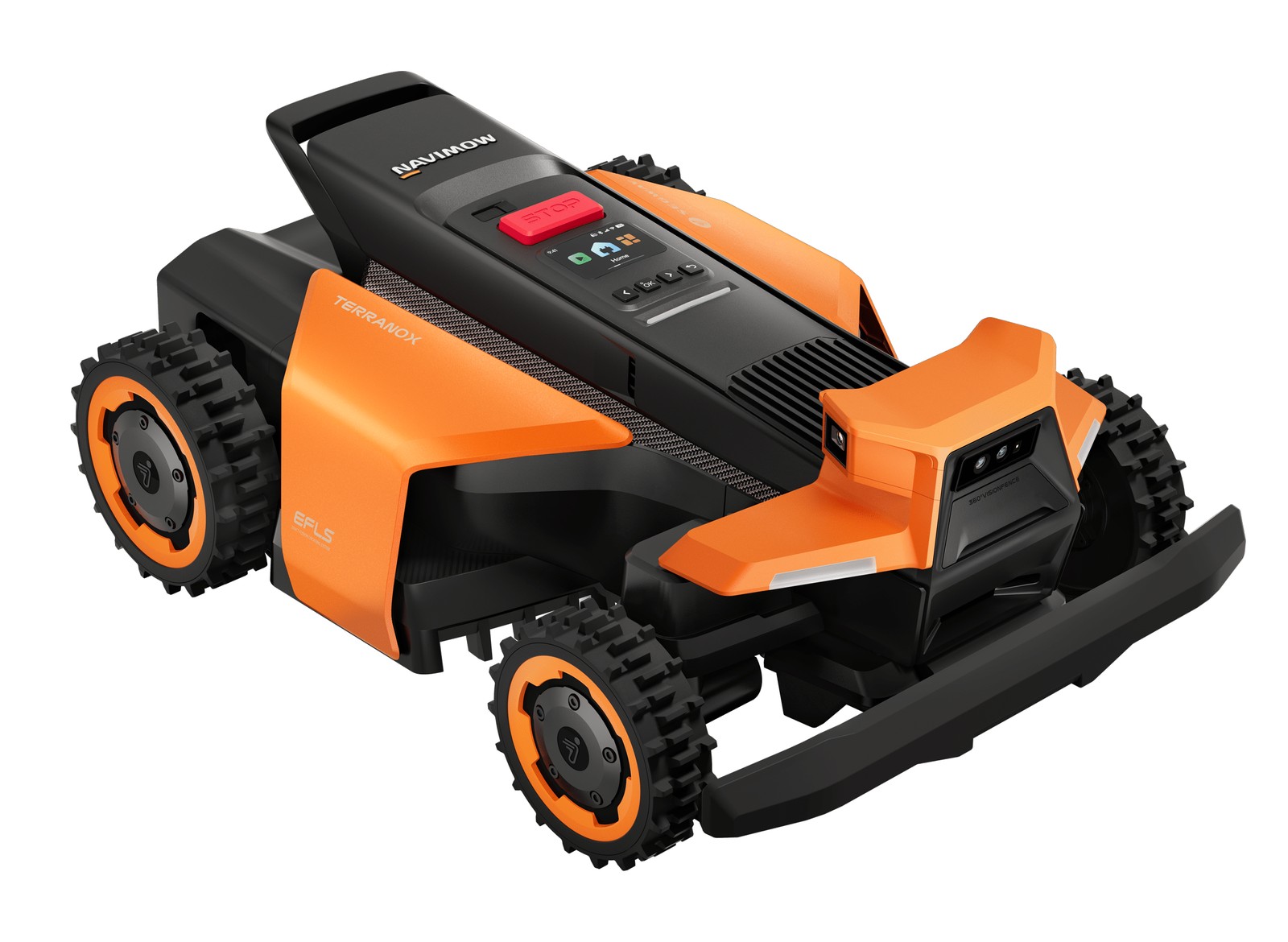

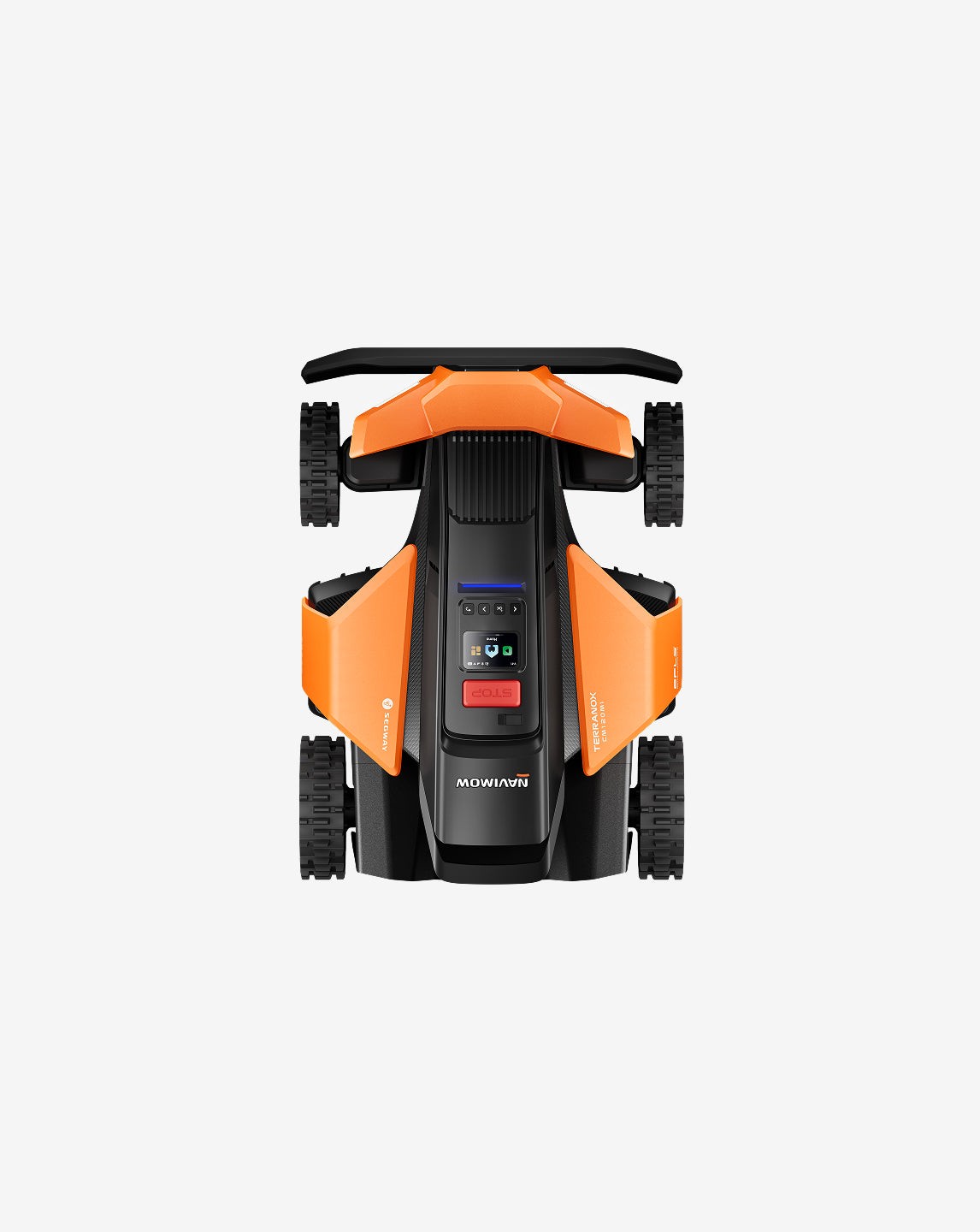

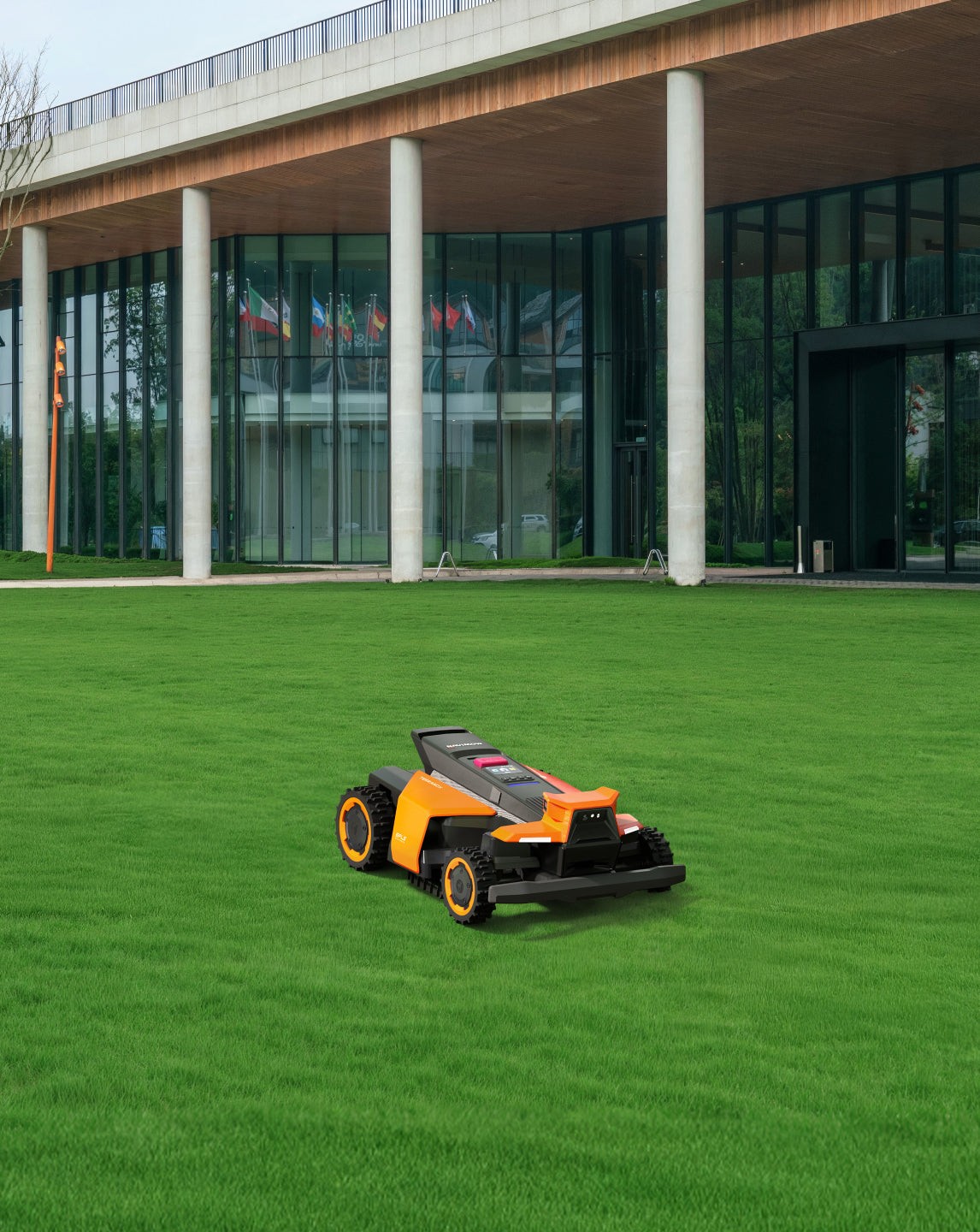

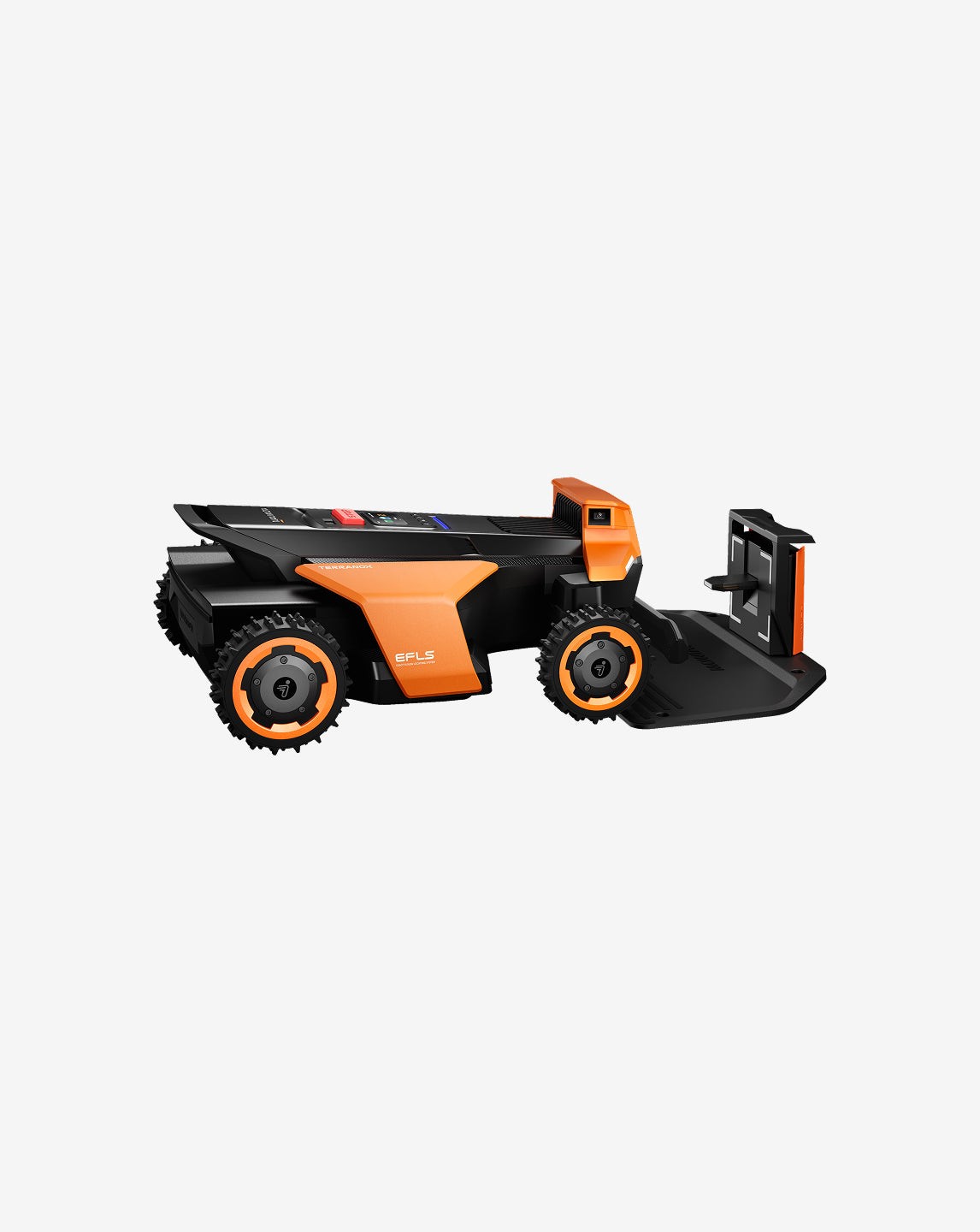

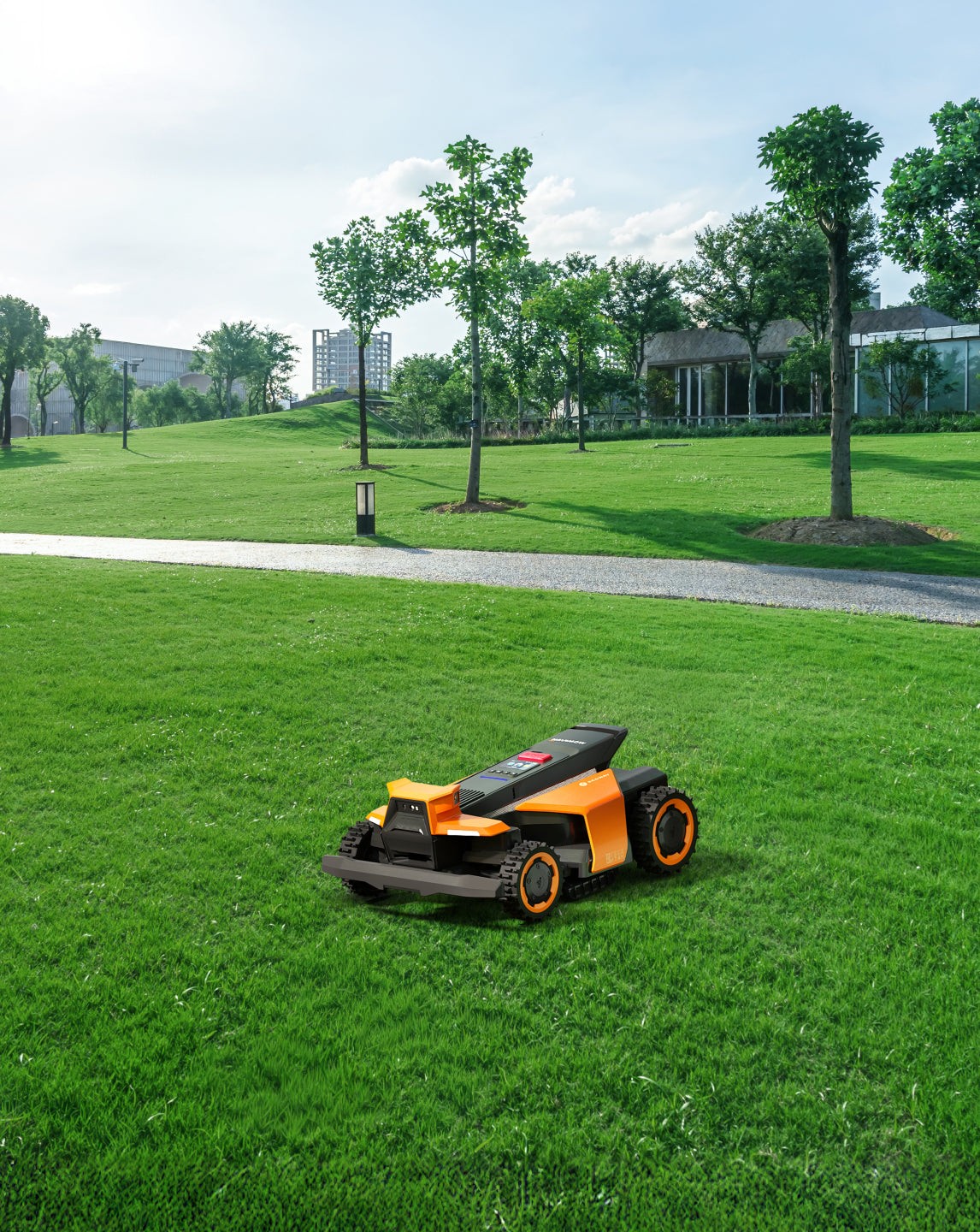

Images
martti
martti
martti
martti
martti
marttiImage Contributions
Videos
MEET THE NAVIMOW TERRANOX ROBOT MOWER 🤖 UNBOXING AND FIRST IMPRESSION
marttiNavimow Terranox Robotic Mower | Mow Up to 6 Acres | Authorized Dealer & Service Center
marttiSegway Navimow Terranox: Zippy Lawnz Full Review of the 3 & 6 Acre Commercial Mower
marttiROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Navimow Terranox CM240M1?
The Segway Navimow Terranox CM240M1 is the larger of the two Terranox commercial robotic mowers, built for professional grounds care on sports turf, golf courses, city green spaces and corporate campuses.
Who makes the Navimow Terranox CM240M1?
The Navimow Terranox CM240M1 is made by Segway Robotics, a robotics company based in China.
How much does the Navimow Terranox CM240M1 cost?
Segway Robotics has not publicly announced pricing for the Navimow Terranox CM240M1. You can enquire through RobotAIGeek for current pricing.
What is the Navimow Terranox CM240M1 used for?
The Navimow Terranox CM240M1 is designed for mapping, navigation, and service. It is used in commercial, facilities, and leisure-tourism settings.
How much does the Navimow Terranox CM240M1 weigh?
The Navimow Terranox CM240M1 weighs 29.95 kg.
How fast is the Navimow Terranox CM240M1?
The Navimow Terranox CM240M1 can move at speeds of up to 3.6 km/h.
What is the battery life of the Navimow Terranox CM240M1?
The Navimow Terranox CM240M1 runs for 180 minutes per charge (about 2,000 m²) on a charge. It takes 180 minutes to charge.
When was the Navimow Terranox CM240M1 released?
The Navimow Terranox CM240M1 was released in 2026.
