DESCRIPTION

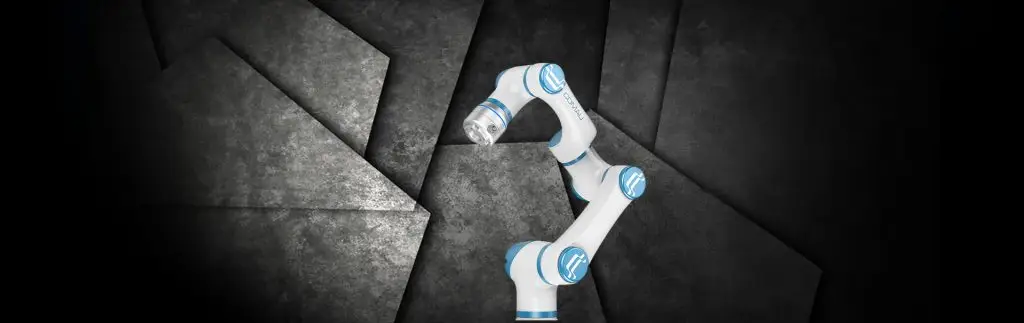

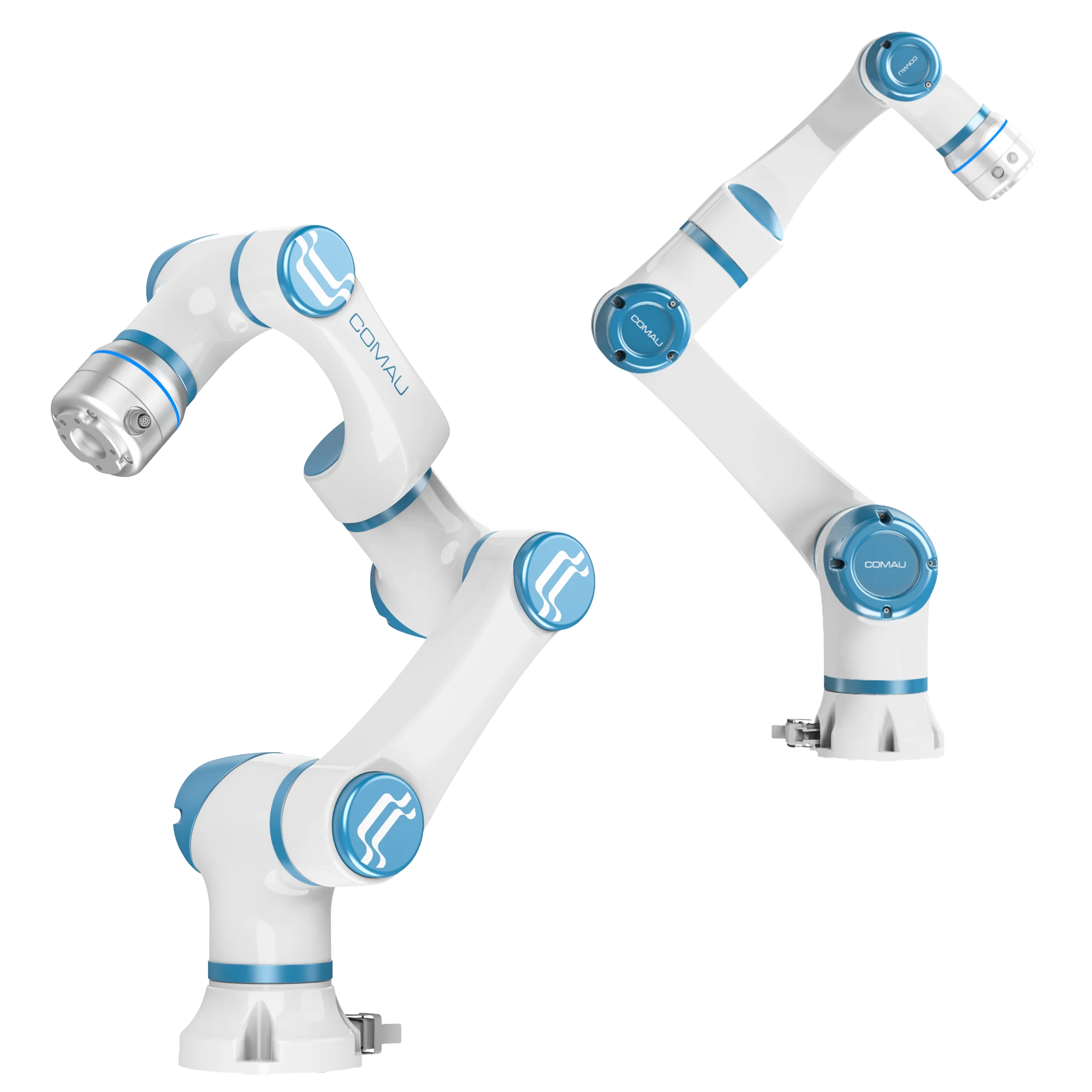

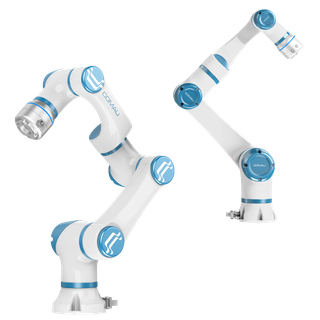

Comau's MyCo-8-1.30 is a stationary collaborative robot designed for industrial automation, working safely alongside humans on the factory floor.
FEATURES
- 8 kg rated payload
- 1300 mm reach
- 45 kg robot weight
- 6 degrees of freedom
- +/-0.03 mm repeatability
- 2.5 m/s maximum tool speed
- 350 W typical application power consumption
- Joint range J1, J4, J6 +/-360 deg, J2 +/-135 deg, J3 +/-153 deg, J5 +/-180 deg
- Joint speed J1-J2 100 deg/s, J3-J4 150 deg/s, J5-J6 180 deg/s
- IP54 protection, IP66 optional
- UL94 V0 flammability classification
- Floor, ceiling, inclined-plane or wall mounting
- Internal cabling and modular design
- Compatible with the main gripper brands
- Force control for arc welding and other constant-force processes
- 5 m cable to control box, 5 m cable to teach pendant
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 45 kg |
|---|---|
| Payload | 8 kg |
| Reach | 1.3 m |
| Repeatability | ±0.03 mm |
| Materials | Aluminium alloy |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Speed | 9 km/h |
| Environment | IP54 (IP66 optional), UL94 V0, working temperature 0-50 C |
| Sensing & Compute | |
| Connectivity | TCP/IP and ModbusTCP; Profinet and EtherNet/IP optional |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 45 kg |
|---|---|
| Payload | 8 kg |
| Reach | 1.3 m |
| Repeatability | ±0.03 mm |
| Materials | Aluminium alloy |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Speed | 9 km/h |
| Environment | IP54 (IP66 optional), UL94 V0, working temperature 0-50 C |
| Sensing & Compute | |
| Connectivity | TCP/IP and ModbusTCP; Profinet and EtherNet/IP optional |
Images
martti
marttiImage Contributions
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the MyCo-8-1.30?
Comau's MyCo-8-1.30 is a stationary collaborative robot designed for industrial automation, working safely alongside humans on the factory floor.
Who makes the MyCo-8-1.30?
The MyCo-8-1.30 is made by Comau, a robotics company based in Italy.
How much does the MyCo-8-1.30 cost?
Comau has not publicly announced pricing for the MyCo-8-1.30. You can enquire through RobotAIGeek for current pricing.
What is the MyCo-8-1.30 used for?
The MyCo-8-1.30 is designed for delivery and transport. It is used in warehouse & logistics settings.
What is the payload capacity of the MyCo-8-1.30?
The MyCo-8-1.30 has a payload capacity of 8 kg and a reach of 1.3 m.
How much does the MyCo-8-1.30 weigh?
The MyCo-8-1.30 weighs 45 kg.
How fast is the MyCo-8-1.30?
The MyCo-8-1.30 can move at speeds of up to 9 km/h.
How many degrees of freedom does the MyCo-8-1.30 have?
The MyCo-8-1.30 has 6 degrees of freedom.
