DESCRIPTION

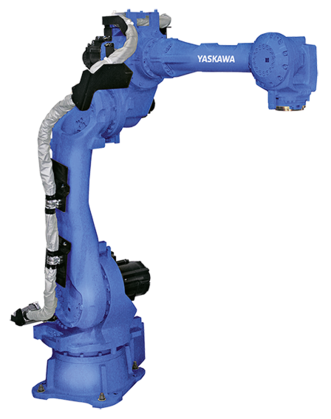

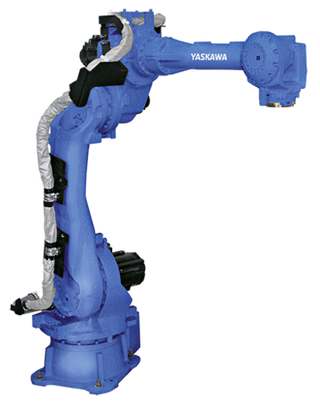

MPL80 II is an Industrial-Robot from YASKAWA Electric. It is built for Material-Handling, palletizing. Key figures: 550 kg, 80 kg payload, 2061 mm reach, 5 degrees of freedom.
The Motoman MPL80 II is Yaskawa's 5-axis palletizing robot with an 80 kg payload and a 2,061 mm horizontal reach. It is derived from a 6-axis handling robot and tuned for high speed and acceleration, running on Yaskawa's Sigma-5 servo technology, and is built to be quick to install and deploy at the end of a packing line. The arm repeats to 0.07 mm, weighs 550 kg and draws a 4 kVA supply. Its S, L, U and B axes each move at up to 170 degrees per second and the T (wrist) axis at up to 350 degrees per second. It can be mounted on the floor or a wall. The MPL80 II has since been followed by the Motoman PL80, which Yaskawa says has faster axes and a wrist that takes four times the load.
FEATURES
- 5 axes, derived from a 6-axis handling robot
- 80 kg payload
- 2,061 mm horizontal reach
- 0.07 mm repeatability
- 550 kg robot weight
- 4 kVA power supply
- S, L, U and B axes up to 170 degrees/s
- T axis up to 350 degrees/s
- Floor or wall mounting
- Sigma-5 servo technology, tuned for high speed and acceleration
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 550 kg |
|---|---|
| Payload | 80 kg |
| Reach | 2.06 m |
| Repeatability | ±0.07 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 5 |
| Environment | Industrial: end-of-line palletizing and depalletizing |
| Actuators | AC servo motors (Sigma-5) |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 550 kg |
|---|---|
| Payload | 80 kg |
| Reach | 2.06 m |
| Repeatability | ±0.07 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 5 |
| Environment | Industrial: end-of-line palletizing and depalletizing |
| Actuators | AC servo motors (Sigma-5) |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the MPL80 II?
The Motoman MPL80 II is Yaskawa's 5-axis palletizing robot with an 80 kg payload and a 2,061 mm horizontal reach. It is derived from a 6-axis handling robot and tuned for high speed and acceleration, running on Yaskawa's Sigma-5 servo technology, and is built to be quick to install and deploy at the end of a packing li…
Who makes the MPL80 II?
The MPL80 II is made by YASKAWA Electric, a robotics company based in Japan.
How much does the MPL80 II cost?
YASKAWA Electric has not publicly announced pricing for the MPL80 II. You can enquire through RobotAIGeek for current pricing.
What is the MPL80 II used for?
The MPL80 II is designed for material-handling and palletizing. It is used in warehouse & logistics, manufacturing, and food and beverage, consumer goods packaging settings.
What is the payload capacity of the MPL80 II?
The MPL80 II has a payload capacity of 80 kg and a reach of 2.06 m.
How much does the MPL80 II weigh?
The MPL80 II weighs 550 kg.
How many degrees of freedom does the MPL80 II have?
The MPL80 II has 5 degrees of freedom.
