DESCRIPTION
Max is a Humanoid from Sanbot Innovation. It is built for Display, Guidance, Information. Key figures: 100 kg, 1080 min runtime, 75 kg payload.

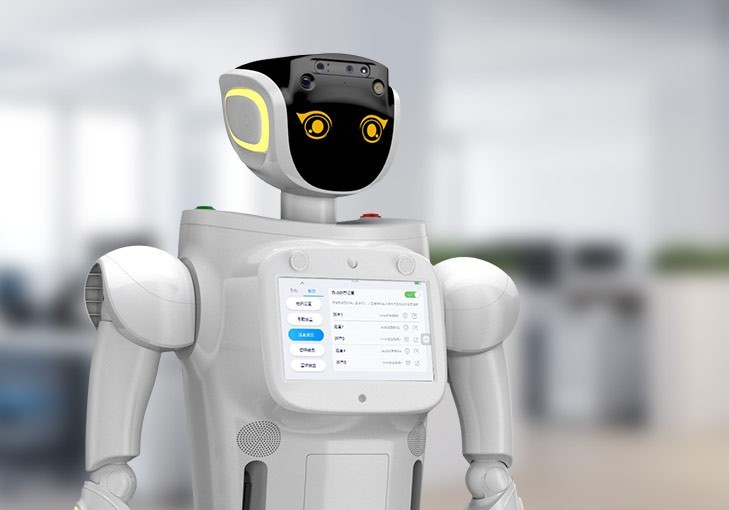

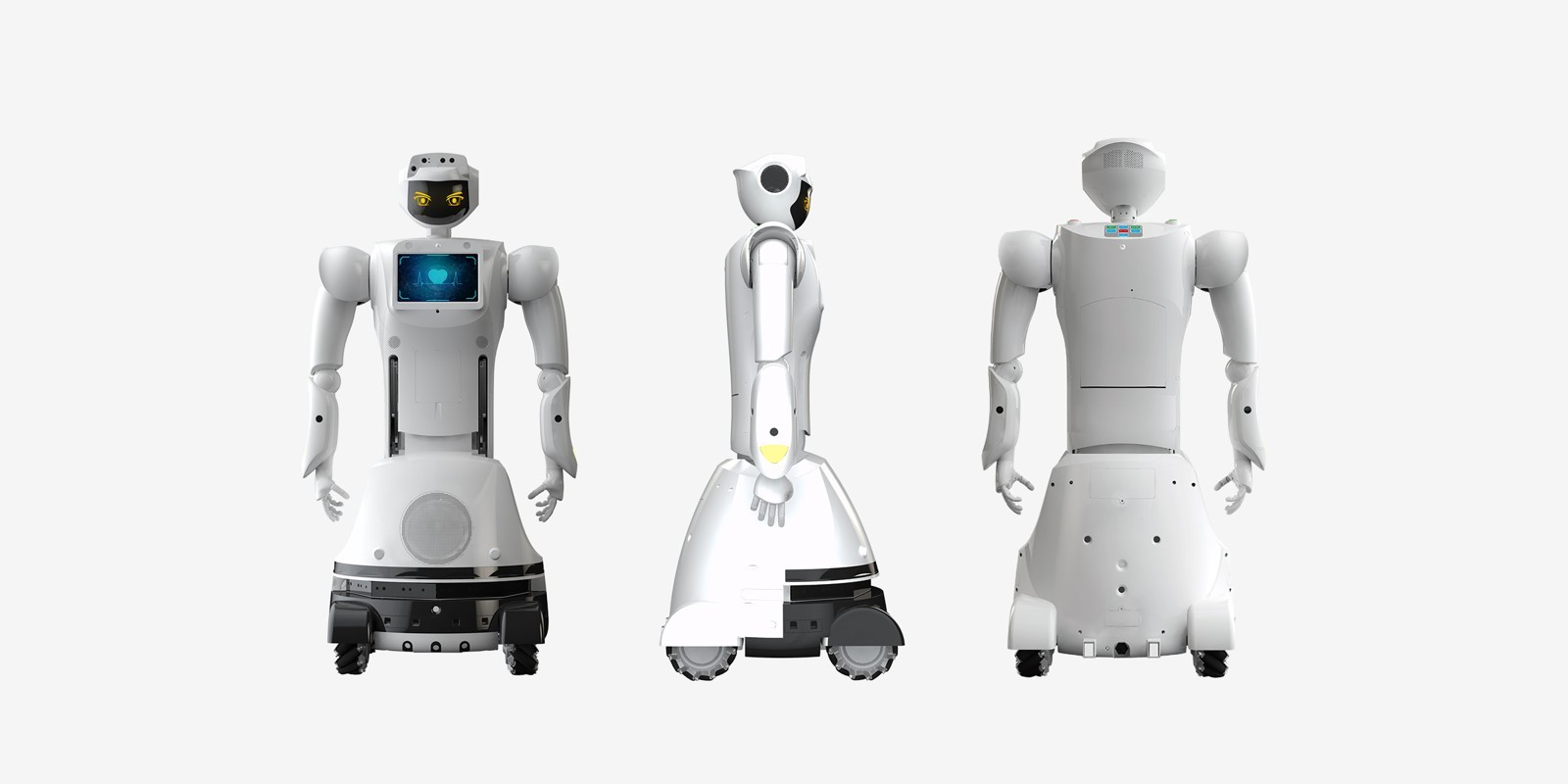

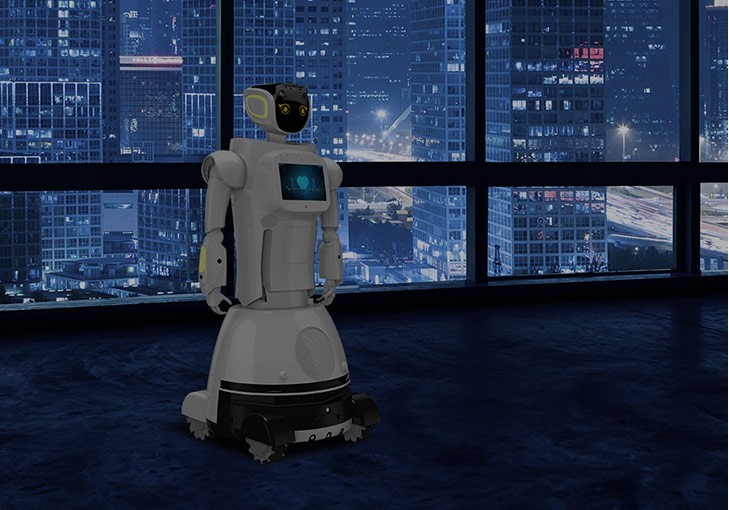

Sanbot Max is the larger, next-generation sibling of the Sanbot Elf: a 1.37 m humanoid service robot that combines business services, carrying and towing, and entertainment for enterprises, hotels, restaurants and the public sector. The Professional version has a head with three motorised degrees of freedom, two arms and two hands with five each, a waist joint and a four-mecanum-wheel base with hub motors, so it can move in any direction, carry up to 75 kg and pull carts with its trailer hitch. Seven microphones, HD, vision and 3D cameras, PIR, ultrasonic, infrared, pressure and magnetic sensors and an RFID reader support reception, navigation and guidance; a 10.1-inch 1080p touchscreen, OLED eyes and hi-fi speakers handle interaction, and it runs Android, Linux, ROS and RTOS. A 1.6 kWh, 36 V battery gives about 18 hours of normal work (50 hours standby), with charging-pile or adapter charging. The Professional version weighs 100 kg and measures 763 x 615 x 1,370 mm; Standard (about 90 kg, 1.0 kWh, no waist or freight function) and Economic (about 60 kg, head only, pushed by hand) versions are also offered.
FEATURES
- Humanoid: head 3 DOF, two arms with 5 DOF each, two hands with 5 DOF each, waist 1 DOF
- 4-wheel drive: hub motors + mecanum wheels, omnidirectional

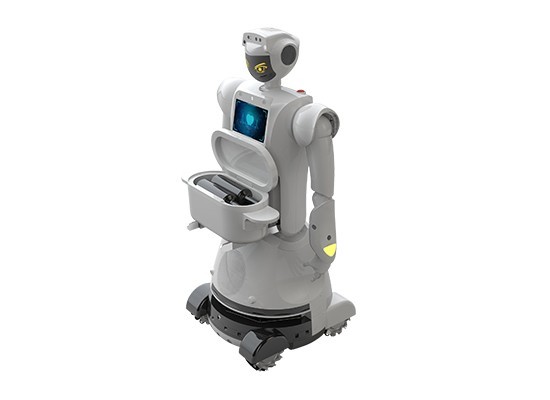

- Freight up to 75 kg

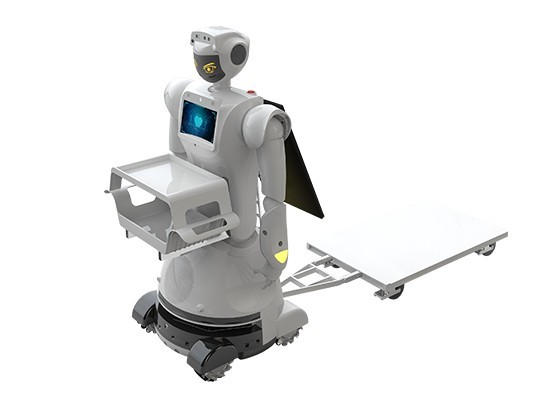

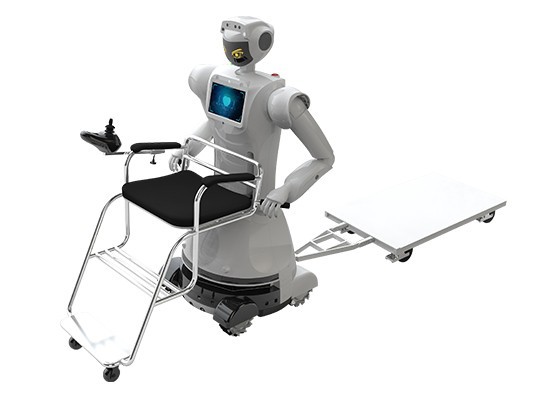

- trailer hitch for towing

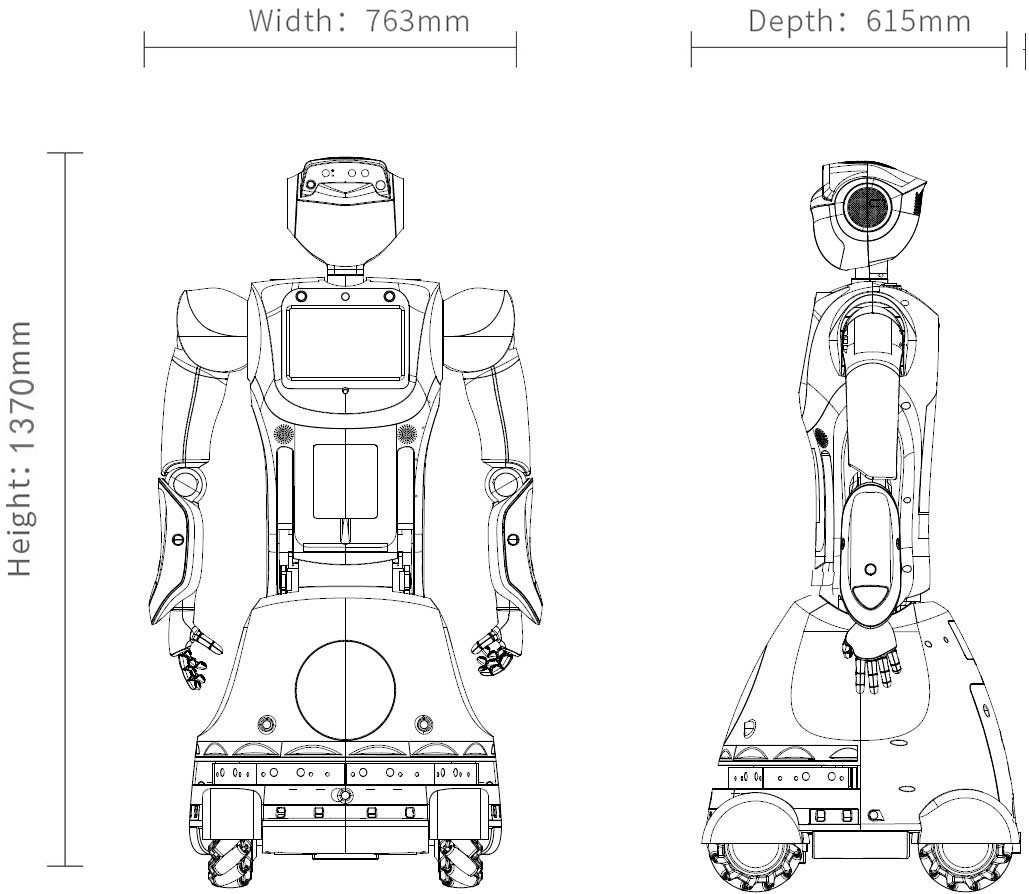

- 763 x 615 x 1,370 mm
- 100 kg (Professional)
- Battery 1.6 kWh, 36 V
- about 18 h normal use, 50 h standby
- 7 mics
- HD, vision and 3D cameras (4 x 3D cameras in chassis)
- PIR
- 6 ultrasonic
- 18 infrared distance sensors
- magnetic sensors
- RFID reader
- 10.1-inch 1080p touchscreen
- OLED eyes
- hi-fi speakers
- Android / Linux / ROS / RTOS
- RJ45, HDMI, USB, I2C, 220 V outlet
- Charging pile or power adapter
- Also Standard (about 90 kg, 1.0 kWh) and Economic (about 60 kg, push-only) versions
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 100 kg |
|---|---|
| Dimensions | L 615 mm × W 763 mm × H 1.37 m |
| Payload | 75 kg |
| Mobility | |
| Movement Type | Wheeled |
| Environment | Indoor commercial and public spaces: enterprises, hotels, restaurants, government halls |
| Power | |
| Battery Life | 1080 min |
| Charging Type | Charging pile or power adapter |
| Sensing & Compute | |
| Sensors | 7 x microphone, HD camera, vision camera, 3D cameras, PIR sensors, 6 x ultrasonic sensor, 18 x infrared distance sensor, pressure sensor, magnetic sensors, RFID reader |
| Connectivity | Wi-Fi; RJ45 Ethernet |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 100 kg |
|---|---|
| Dimensions | L 615 mm × W 763 mm × H 1.37 m |
| Payload | 75 kg |
| Mobility | |
| Movement Type | Wheeled |
| Environment | Indoor commercial and public spaces: enterprises, hotels, restaurants, government halls |
| Power | |
| Battery Life | 1080 min |
| Charging Type | Charging pile or power adapter |
| Sensing & Compute | |
| Sensors | 7 x microphone, HD camera, vision camera, 3D cameras, PIR sensors, 6 x ultrasonic sensor, 18 x infrared distance sensor, pressure sensor, magnetic sensors, RFID reader |
| Connectivity | Wi-Fi; RJ45 Ethernet |
Images
martti
martti
martti
martti
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Max?
Sanbot Max is the larger, next-generation sibling of the Sanbot Elf: a 1.37 m humanoid service robot that combines business services, carrying and towing, and entertainment for enterprises, hotels, restaurants and the public sector.
Who makes the Max?
The Max is made by Sanbot Innovation, a robotics company based in China.
How much does the Max cost?
Sanbot Innovation has not publicly announced pricing for the Max. You can enquire through RobotAIGeek for current pricing.
What is the Max used for?
The Max is designed for display, guidance, information, and marketing. It is used in commercial, government, education, and healthcare settings.
What is the payload capacity of the Max?
The Max has a payload capacity of 75 kg.
How much does the Max weigh?
The Max weighs 100 kg.
What is the battery life of the Max?
The Max runs for about 1,080 minutes on a charge.
