DESCRIPTION
Jaguar Arm is a Robotic-Arms from Dr Robot. It is built for Material-Handling, Others, Inspection. Key figures: 4 kg payload, price $10,250.

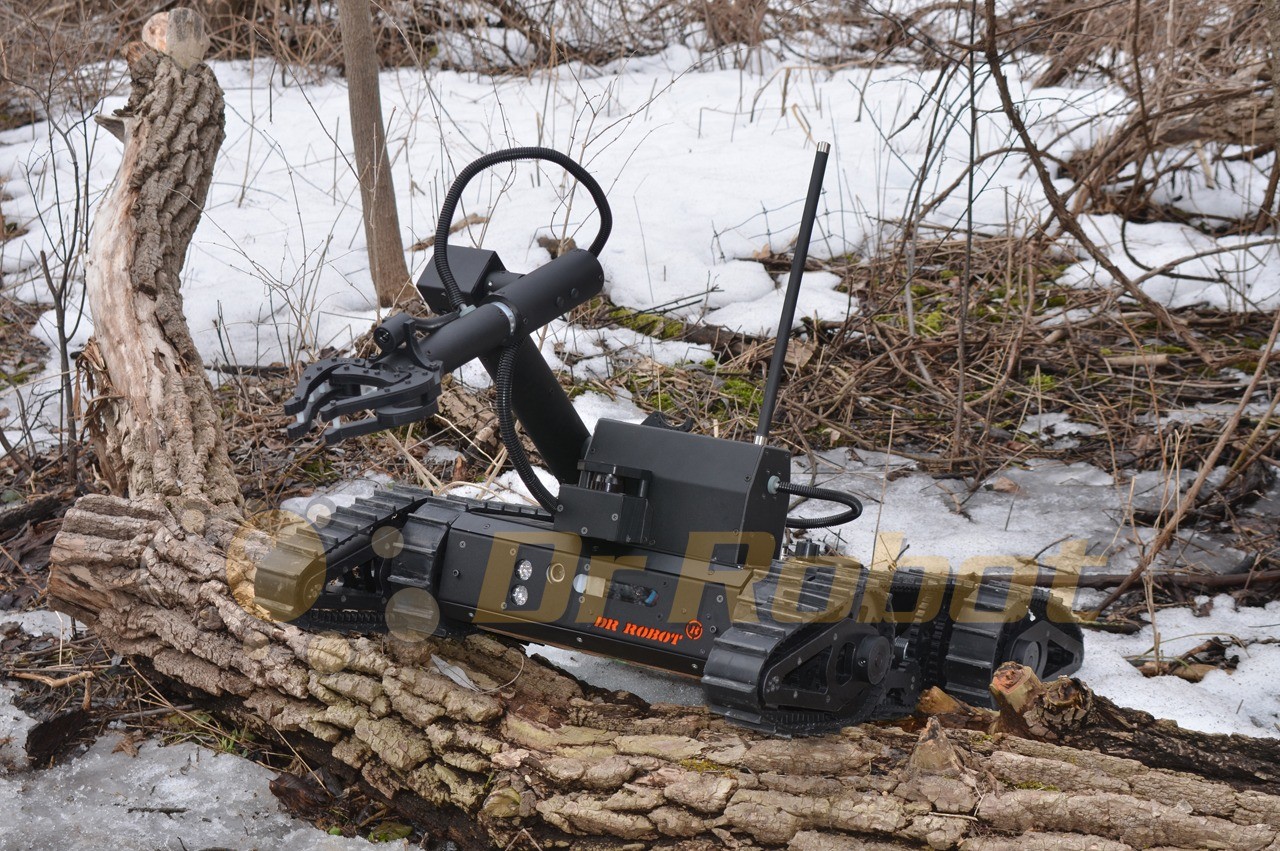

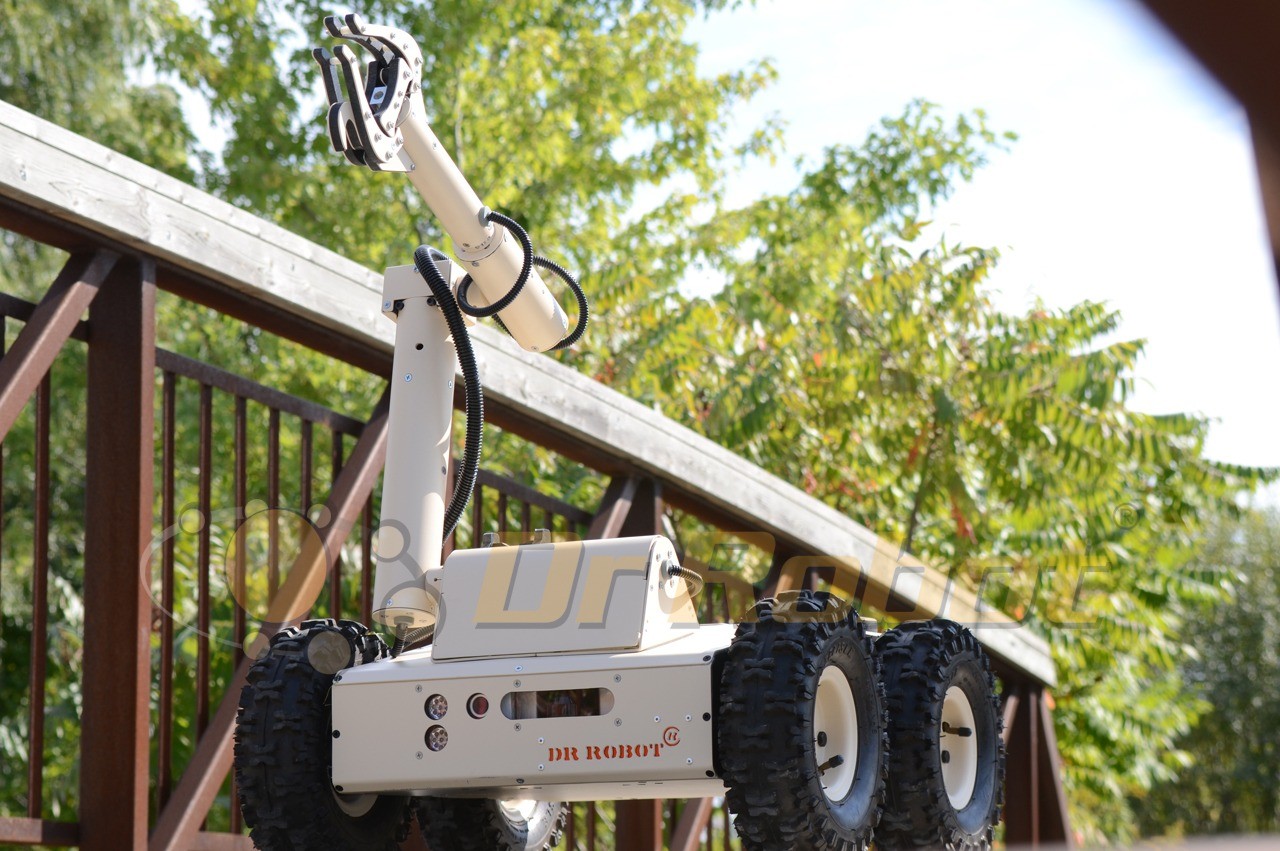

The Jaguar Arm is Dr Robot's rugged 3+1-DOF manipulator for compact mobile robots such as the Jaguar 4x4, Jaguar Lite and Jaguar V2. Built mainly from aluminium, it weighs under 10 kg, reaches over 710 mm, lifts 4 kg at maximum reach and has a 150 mm gripper opening, with low energy consumption and an optional 640 x 480 wrist camera for close-up inspection; arm options include infrared and white LEDs, a dust blower, a laser scanner and other sensors. Integrated software provides independent joint-space control and Cartesian gripper control; while it has only three rotation joints plus the gripper, combined with the Jaguar robot's motion it can reach virtually any position and orientation in its workspace, and it can also serve as an articulated sensor platform.
FEATURES
- 3 DOF + 1 DOF gripper
- Over 710 mm reach
- 4 kg at full reach
- 150 mm gripper opening
- Under 10 kg
- low energy use
- Optional wrist camera, IR/white LEDs, dust blower, laser scanner
- Joint-space and Cartesian control
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 4 kg |
|---|---|
| Mobility | |
| Movement Type | Stationary |
| Environment | Mounted on Jaguar 4x4, Jaguar Lite and Jaguar V2 mobile robots outdoors |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 4 kg |
|---|---|
| Mobility | |
| Movement Type | Stationary |
| Environment | Mounted on Jaguar 4x4, Jaguar Lite and Jaguar V2 mobile robots outdoors |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Jaguar Arm?
The Jaguar Arm is Dr Robot's rugged 3+1-DOF manipulator for compact mobile robots such as the Jaguar 4x4, Jaguar Lite and Jaguar V2.
Who makes the Jaguar Arm?
The Jaguar Arm is made by Dr Robot, a robotics company based in Canada.
How much does the Jaguar Arm cost?
The Jaguar Arm is priced at around $10,250.
What is the Jaguar Arm used for?
The Jaguar Arm is designed for material-handling, others, inspection, and manipulator for compact mobile robots. It is used in defence, research, and security & patrol settings.
What is the payload capacity of the Jaguar Arm?
The Jaguar Arm has a payload capacity of 4 kg.
