DESCRIPTION

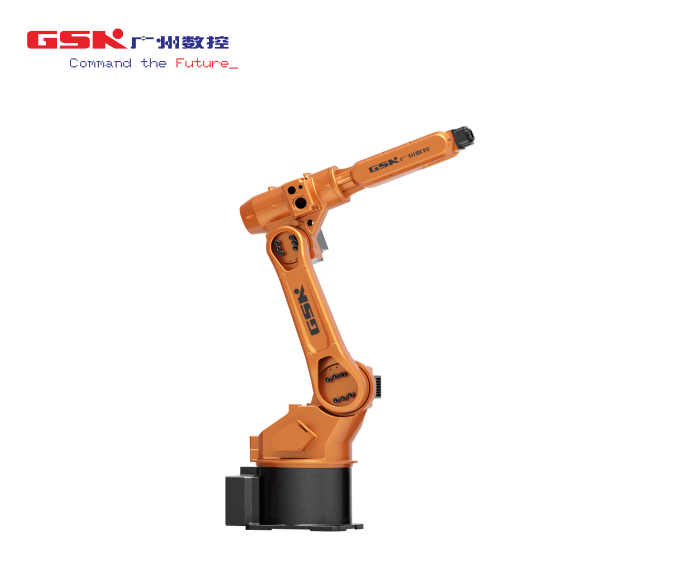

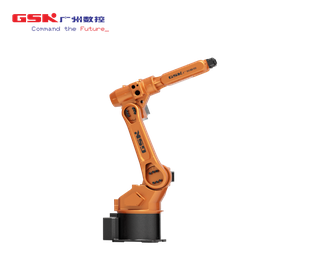

GSK RB08 is an Industrial-Robot from GSK CNC Equipment Co., Ltd.. It is built for Picking. Key figures: 180 kg, 8 kg payload, 6 degrees of freedom.
Engineered for precision manufacturing, the GSK RB08 operates as a stationary industrial robot delivering high repeatability across demanding production tasks.
FEATURES
- 6 degrees of freedom
- 8 kg rated payload
- 1,389 mm motion radius
- +/-0.05 mm repeatability
- 180 kg robot weight
- AC servo drive on every axis
- Joint range J1 +/-170 deg, J2 +120/-85 deg, J3 +75/-155 deg, J4 +/-180 deg, J5 +/-135 deg, J6 +/-360 deg

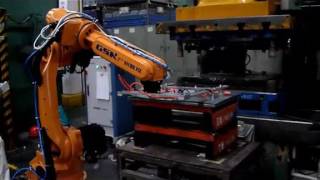

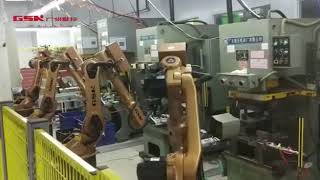

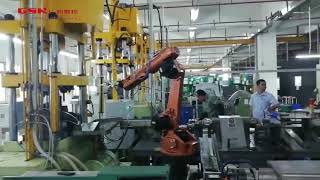

- Used for burnishing, polishing, machine loading and unloading, and automatic transport on stamping lines
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 180 kg |
|---|---|
| Payload | 8 kg |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Manipulation | High |
Videos
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 180 kg |
|---|---|
| Payload | 8 kg |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Manipulation | High |
Images



Image Contributions
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the GSK RB08?
Engineered for precision manufacturing, the GSK RB08 operates as a stationary industrial robot delivering high repeatability across demanding production tasks.
Who makes the GSK RB08?
The GSK RB08 is made by GSK CNC Equipment Co., Ltd., a robotics company based in China.
How much does the GSK RB08 cost?
GSK CNC Equipment Co., Ltd. has not publicly announced pricing for the GSK RB08. You can enquire through RobotAIGeek for current pricing.
What is the GSK RB08 used for?
The GSK RB08 is designed for picking. It is used in manufacturing settings.
What is the payload capacity of the GSK RB08?
The GSK RB08 has a payload capacity of 8 kg.
How much does the GSK RB08 weigh?
The GSK RB08 weighs 180 kg.
How many degrees of freedom does the GSK RB08 have?
The GSK RB08 has 6 degrees of freedom.
