DESCRIPTION
Gideon Trey Medium Duty is a Mobile-Robots from Gideon Brothers. It is built for Loading, Material-Handling, Pallet-Transportation. Key figures: 4817 kg, 720 min runtime, 1588 kg payload.

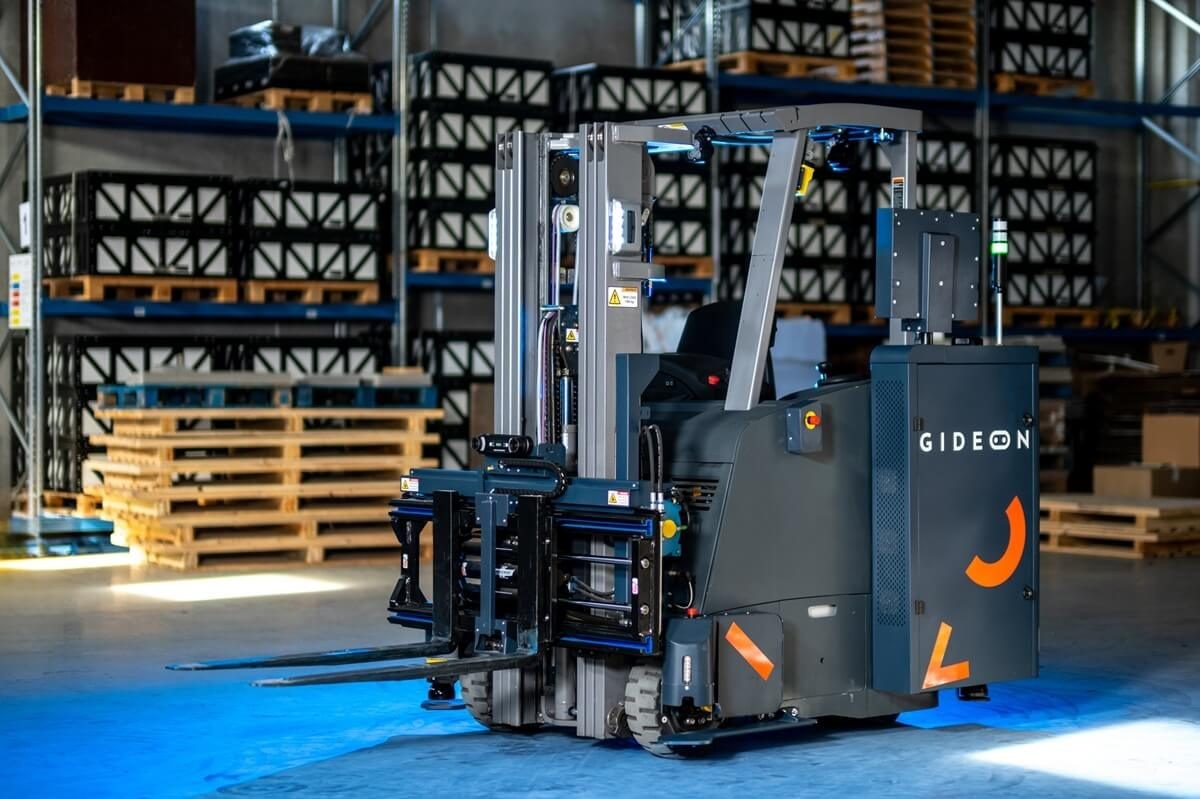

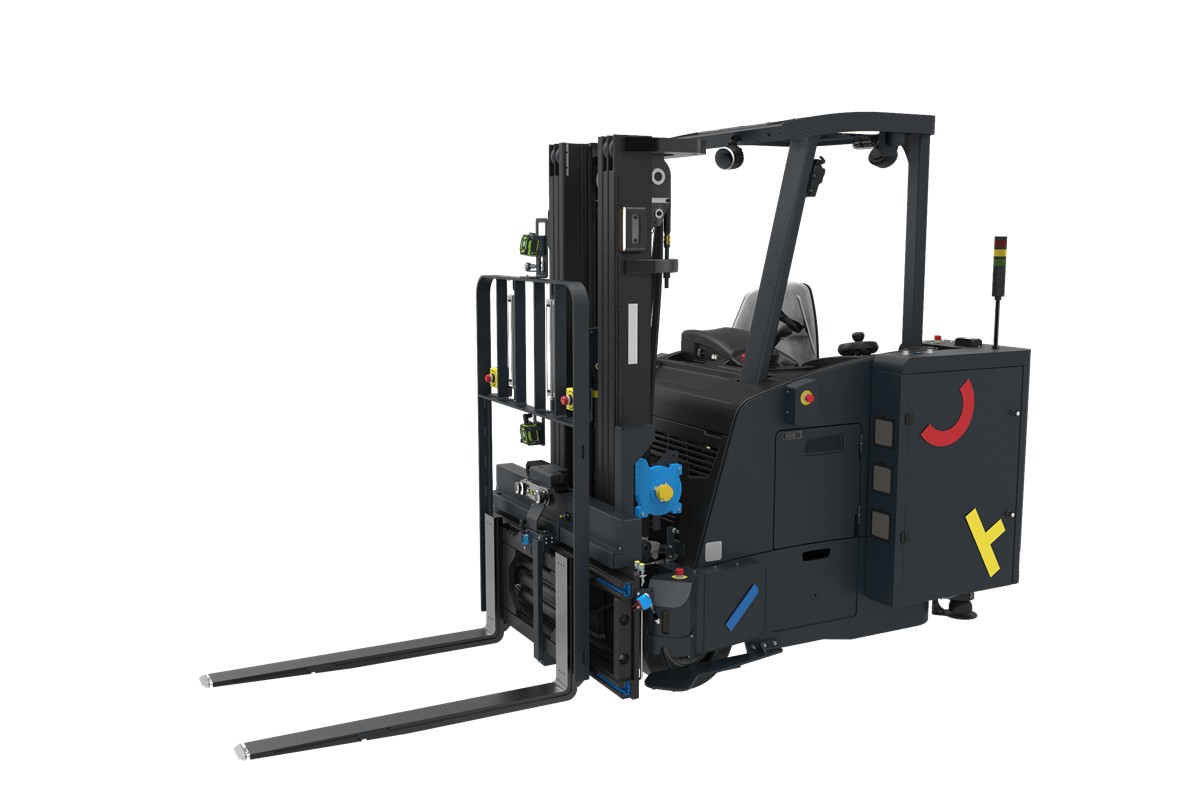

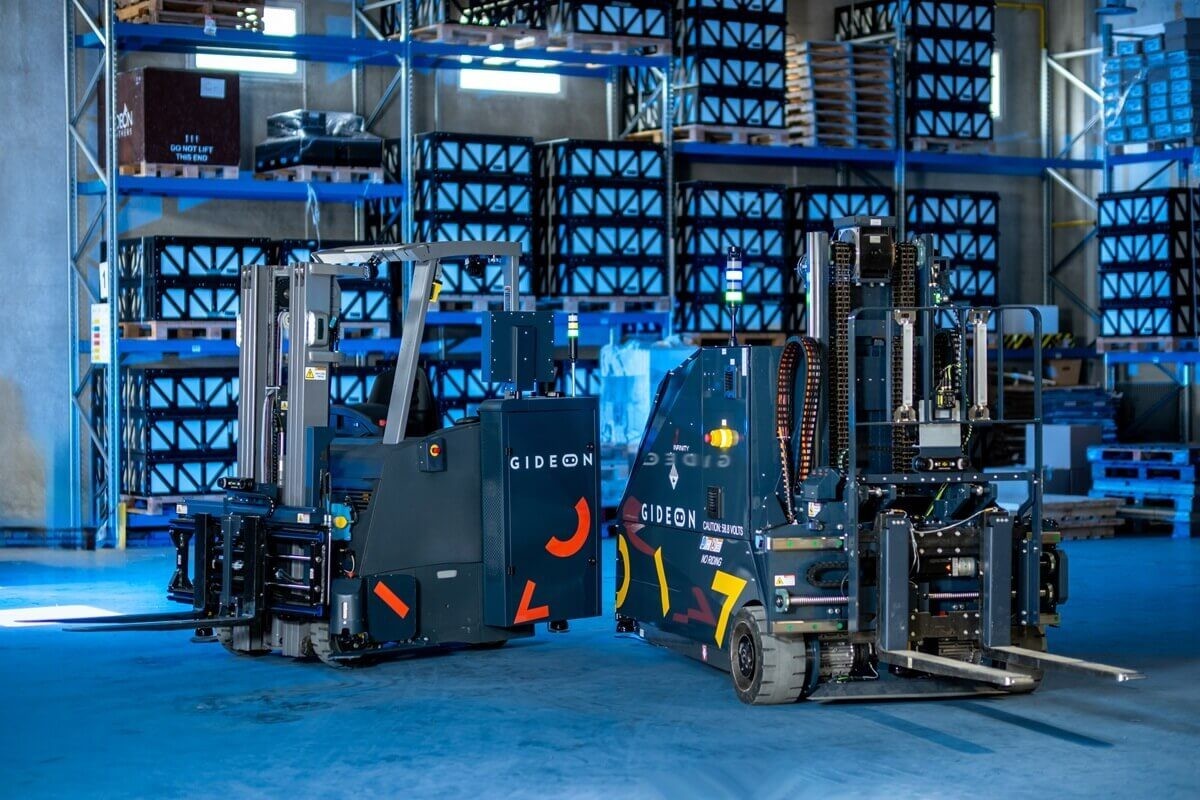

The Medium Duty Trey is the version of Gideon's autonomous loading-bay forklift for most applications. Like the Heavy Duty model it loads and unloads palletised goods from trailers fully autonomously, using AI 3D vision to understand the trailer, pallets and surroundings, and links to the WMS for automatic inbound and outbound moves at up to 25 pallets an hour. It carries up to 3,500 lb (about 1,600 kg) and lifts to 65 in, measures 134 x 56 x 83 in and weighs 10,620 lb. A 38 V, 610 Ah lithium-ion battery gives 12+ hours per charge with a 3.5-hour recharge, and it supports both opportunity charging and battery swap. Workers are protected by a 360° laser-scanner field, and fleets are managed from Gideon's browser-based fleet software.
FEATURES
- Fully autonomous trailer loading and unloading, including the first pallets in the trailer
- AI 3D vision for environment understanding, pallet detection and obstacle avoidance
- Up to 25 pallets per hour
- cuts manual driving by over 80%
- 360° worker protection via laser scanner
- WMS/WES/MES integration
- browser-based fleet management
- Autonomous mapping and localisation
- deploys in hours with minimal infrastructure
- Max payload 3,500 lb
- max lift height 65 in
- 134 x 56 x 83 in
- weight 10,620 lb
- ITA Class II 42 in forks
- Li-ion 38 V DC 610 Ah
- 12+ h per charge
- 3.5 h charging
- opportunity charging and battery swap
- Turning radius 71 in front / 67 in rear
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 4817 kg |
|---|---|
| Dimensions | L 3.4 m × W 1.42 m × H 2.11 m |
| Payload | 1588 kg |
| Mobility | |
| Movement Type | Wheeled |
| Environment | Indoor warehouses, loading docks and trailers |
| Power | |
| Battery Life | 12+ h at full charge |
| Charging Time | 3.5 h |
| Sensing & Compute | |
| Sensors | 3D vision cameras, 360° safety laser scanner |
| Software / AI | Gideon browser-based fleet management; WMS/WES/MES integration |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 4817 kg |
|---|---|
| Dimensions | L 3.4 m × W 1.42 m × H 2.11 m |
| Payload | 1588 kg |
| Mobility | |
| Movement Type | Wheeled |
| Environment | Indoor warehouses, loading docks and trailers |
| Power | |
| Battery Life | 12+ h at full charge |
| Charging Time | 3.5 h |
| Sensing & Compute | |
| Sensors | 3D vision cameras, 360° safety laser scanner |
| Software / AI | Gideon browser-based fleet management; WMS/WES/MES integration |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Gideon Trey Medium Duty?
The Medium Duty Trey is the version of Gideon's autonomous loading-bay forklift for most applications. Like the Heavy Duty model it loads and unloads palletised goods from trailers fully autonomously, using AI 3D vision to understand the trailer, pallets and surroundings, and links to the WMS for automatic inbound and…
Who makes the Gideon Trey Medium Duty?
The Gideon Trey Medium Duty is made by Gideon Brothers, a robotics company based in Croatia.
How much does the Gideon Trey Medium Duty cost?
Gideon Brothers has not publicly announced pricing for the Gideon Trey Medium Duty. You can enquire through RobotAIGeek for current pricing.
What is the Gideon Trey Medium Duty used for?
The Gideon Trey Medium Duty is designed for loading, material-handling, pallet-transportation, and unloading. It is used in warehouse & logistics, manufacturing, and retail settings.
What is the payload capacity of the Gideon Trey Medium Duty?
The Gideon Trey Medium Duty has a payload capacity of 1,588 kg.
How much does the Gideon Trey Medium Duty weigh?
The Gideon Trey Medium Duty weighs 4,817 kg.
What is the battery life of the Gideon Trey Medium Duty?
The Gideon Trey Medium Duty runs for 12+ h at full charge on a charge. It takes 3.5 h to charge.
