DESCRIPTION
Gideon Trey Heavy Duty is a Mobile-Robots from Gideon Brothers. It is built for Loading, Material-Handling, Pallet-Transportation. Key figures: 4550 kg, 600 min runtime, 2722 kg payload.

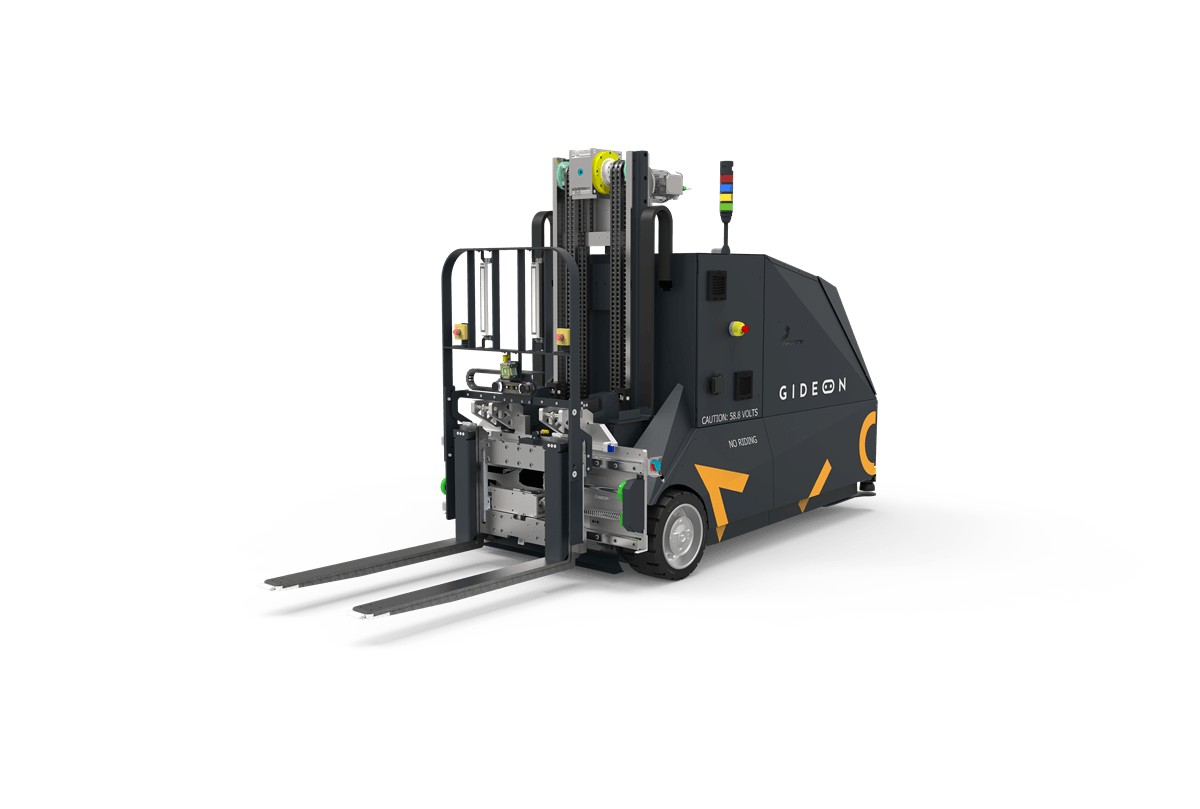

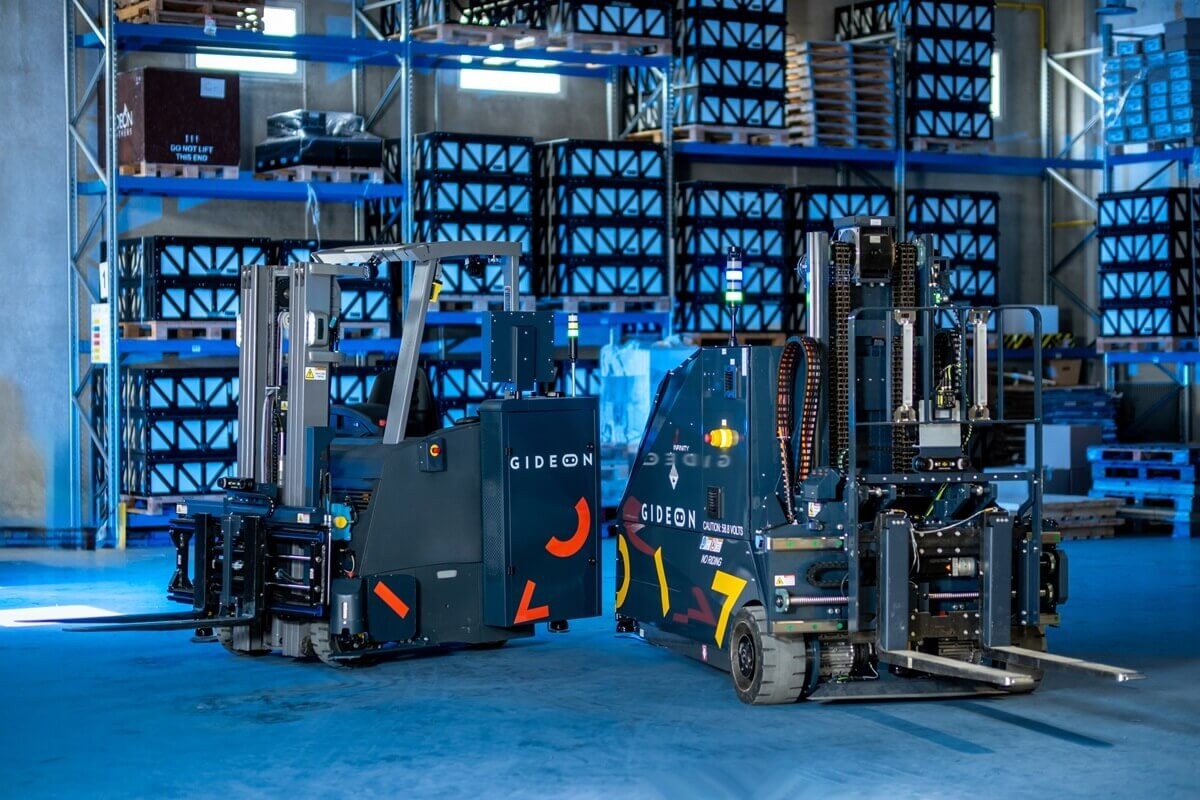

Trey is Gideon's autonomous forklift for the loading bay, built to load and unload palletised goods from trailers on its own, including the first pallets at the nose of the trailer that competing systems leave to a human driver. AI-based 3D vision lets it read the trailer, the pallets and the people around it, and it plugs into the warehouse management system so inbound and outbound moves are orchestrated automatically at up to 25 pallets an hour. The Heavy Duty Trey is the counterbalance chassis for heavier loads: it lifts up to 6,000 lb (about 2,700 kg) to 53 in, measures 160.9 x 59.1 x 88 in, weighs 10,031 lb and runs 10+ hours on a 48 V, 400 Ah lithium-ion battery that recharges in 4 hours, with opportunity or manual charging. A 360° laser-scanner field protects workers, and fleets are run from Gideon's browser-based fleet manager.
FEATURES
- Fully autonomous trailer loading and unloading, including the first pallets in the trailer
- AI 3D vision for environment understanding, pallet detection and obstacle avoidance
- Up to 25 pallets per hour
- cuts manual driving by over 80%
- 360° worker protection via laser scanner
- WMS/WES/MES integration
- browser-based fleet management
- Autonomous mapping and localisation
- deploys in hours with minimal infrastructure
- Counterbalance chassis
- max payload 6,000 lb
- max lift height 53 in
- 160.9 x 59.1 x 88 in
- weight 10,031 lb
- ITA Class III 48 in forks
- Li-ion 48 V DC 400 Ah
- 10+ h per charge
- 4 h charging
- opportunity or manual charging
- Turning radius 69 in front / 95 in rear
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 4550 kg |
|---|---|
| Dimensions | L 4.09 m × W 1.5 m × H 2.23 m |
| Payload | 2722 kg |
| Mobility | |
| Movement Type | Wheeled |
| Environment | Indoor warehouses, loading docks and trailers |
| Power | |
| Battery Life | 10+ h at full charge |
| Charging Time | 4 h |
| Sensing & Compute | |
| Sensors | 3D vision cameras, 360° safety laser scanner |
| Software / AI | Gideon browser-based fleet management; WMS/WES/MES integration |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 4550 kg |
|---|---|
| Dimensions | L 4.09 m × W 1.5 m × H 2.23 m |
| Payload | 2722 kg |
| Mobility | |
| Movement Type | Wheeled |
| Environment | Indoor warehouses, loading docks and trailers |
| Power | |
| Battery Life | 10+ h at full charge |
| Charging Time | 4 h |
| Sensing & Compute | |
| Sensors | 3D vision cameras, 360° safety laser scanner |
| Software / AI | Gideon browser-based fleet management; WMS/WES/MES integration |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Gideon Trey Heavy Duty?
Trey is Gideon's autonomous forklift for the loading bay, built to load and unload palletised goods from trailers on its own, including the first pallets at the nose of the trailer that competing systems leave to a human driver.
Who makes the Gideon Trey Heavy Duty?
The Gideon Trey Heavy Duty is made by Gideon Brothers, a robotics company based in Croatia.
How much does the Gideon Trey Heavy Duty cost?
Gideon Brothers has not publicly announced pricing for the Gideon Trey Heavy Duty. You can enquire through RobotAIGeek for current pricing.
What is the Gideon Trey Heavy Duty used for?
The Gideon Trey Heavy Duty is designed for loading, material-handling, pallet-transportation, and unloading. It is used in warehouse & logistics, manufacturing, and retail settings.
What is the payload capacity of the Gideon Trey Heavy Duty?
The Gideon Trey Heavy Duty has a payload capacity of 2,722 kg.
How much does the Gideon Trey Heavy Duty weigh?
The Gideon Trey Heavy Duty weighs 4,550 kg.
What is the battery life of the Gideon Trey Heavy Duty?
The Gideon Trey Heavy Duty runs for 10+ h at full charge on a charge. It takes 4 h to charge.
