DESCRIPTION
GETA Type P is an Industrial-Robot from Yeefung. It is built for Heavy-Load-Transportation, Lifting, Transport. Key figures: 480 min runtime, 2500 kg payload.

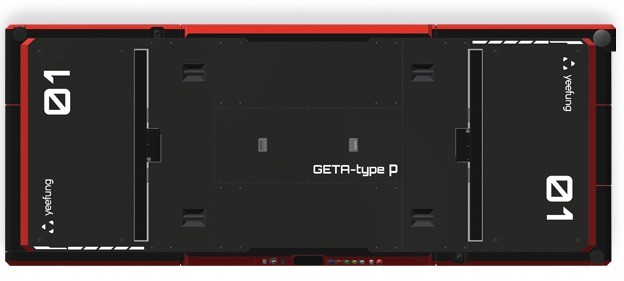

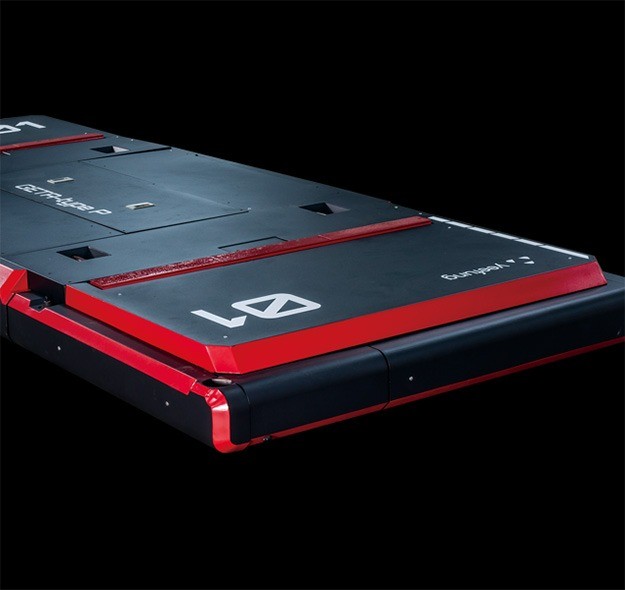

GETA Type P is the plate-style version of Yeefung's GETA robotic parking AGV: a low vehicle that drives under a car, lifts it and carries it to a parking space without cables, tracks or fixed routes. Like Type C it uses laser navigation with magnetic-spot assistance for +/-5 mm positioning at up to 1.5 m/s, retrieves cars in under 120 seconds on average and is coordinated by a fleet system that manages up to 1,000 AGVs. Type P is smaller and lower than Type C: 4,067 mm long, 1,600 mm wide and 250 mm high, with a differential drive and a 2,200 mm rotating radius. It carries cars of up to 2,500 kg and runs 8 hours on a 48 V 200 Ah lead-acid battery (lithium optional) with automatic charging.
FEATURES
- Type P: 4,067 x 1,600 x 250 mm
- differential drive
- 2,200 mm rotating radius
- Laser / magnetic-spot hybrid navigation: +/-10 mm navigation, +/-5 mm positioning
- Omnidirectional: forward, backward, turning, rotating, sideways and differential moves
- Up to 1.5 m/s
- average car retrieval under 120 s
- no cables, tracks or fixed routes
- Lifts and carries cars up to 2,500 kg
- parking bays up to 5,800 x 2,300 mm
- 48 V 200 Ah lead-acid battery (lithium optional), 8 h battery life, automatic charging
- Laser scanner (6 rps) navigation
- laser safety sensor with 200 mm auto-braking range
- Fleet management coordinates up to 1,000 AGVs
- raises car-park capacity by up to 40%
- Max power 6 kW (4 kW drive, 2 kW lift)
- WLAN
- floor slope up to 2 degrees
TECHNICAL SPECIFICATIONS
| Physical | |
| Dimensions | L 4.07 m × W 1.6 m × H 250 mm |
|---|---|
| Payload | 2500 kg |
| Repeatability | ±5 mm |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor car parks (-10 to 40 C) |
| Actuators | Differential drive |
| Power | |
| Battery Life | 480 min |
| Charging Type | Automatic charging |
| Sensing & Compute | |
| Sensors | laser navigation scanner (6 rps), laser safety sensor, magnetic spot sensor |
| Connectivity | WLAN |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Dimensions | L 4.07 m × W 1.6 m × H 250 mm |
|---|---|
| Payload | 2500 kg |
| Repeatability | ±5 mm |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor car parks (-10 to 40 C) |
| Actuators | Differential drive |
| Power | |
| Battery Life | 480 min |
| Charging Type | Automatic charging |
| Sensing & Compute | |
| Sensors | laser navigation scanner (6 rps), laser safety sensor, magnetic spot sensor |
| Connectivity | WLAN |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the GETA Type P?
GETA Type P is the plate-style version of Yeefung's GETA robotic parking AGV: a low vehicle that drives under a car, lifts it and carries it to a parking space without cables, tracks or fixed routes.
Who makes the GETA Type P?
The GETA Type P is made by Yeefung, a robotics company based in China.
How much does the GETA Type P cost?
Yeefung has not publicly announced pricing for the GETA Type P. You can enquire through RobotAIGeek for current pricing.
What is the GETA Type P used for?
The GETA Type P is designed for heavy-load-transportation, lifting, transport, and automated car parking. It is used in commercial, others, and warehouse & logistics settings.
What is the payload capacity of the GETA Type P?
The GETA Type P has a payload capacity of 2,500 kg.
How fast is the GETA Type P?
The GETA Type P can move at speeds of up to 5.4 km/h.
What is the battery life of the GETA Type P?
The GETA Type P runs for about 480 minutes on a charge.
