DESCRIPTION

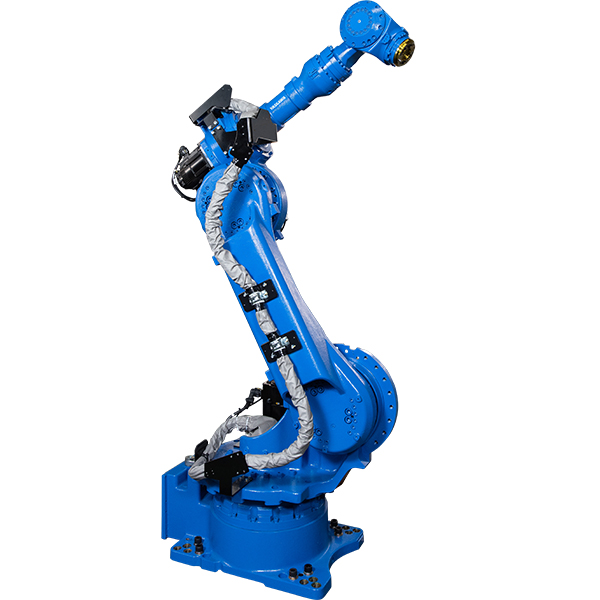

GA50 is an Industrial-Robot from YASKAWA Electric. It is built for Welding. Key figures: 855 kg, 50 kg payload, 2038 mm reach, 6 degrees of freedom, released 2022.
Yaskawa Motoman GA50 is a GA Series industrial robot with 50 kg payload and 2038 mm horizontal reach (855 kg mass, ±0.015 mm repeatability).
FEATURES
- Payload 50 kg
- Horizontal reach 2038 mm
- Vertical reach 3161 mm
- Mass 855 kg
- Repeatability ±0.015 mm
- 6 controlled axes
- Applications: Arc Welding
- Dispensing
- Material Removal
- Material Cutting
- Trimming
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 855 kg |
|---|---|
| Payload | 50 kg |
| Reach | 2.04 m |
| Repeatability | ±0.01 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Manipulation | High |
| Environment | IP67 |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 855 kg |
|---|---|
| Payload | 50 kg |
| Reach | 2.04 m |
| Repeatability | ±0.01 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Manipulation | High |
| Environment | IP67 |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the GA50?
Yaskawa Motoman GA50 is a GA Series industrial robot with 50 kg payload and 2038 mm horizontal reach (855 kg mass, ±0.015 mm repeatability).
Who makes the GA50?
The GA50 is made by YASKAWA Electric, a robotics company based in Japan.
How much does the GA50 cost?
YASKAWA Electric has not publicly announced pricing for the GA50. You can enquire through RobotAIGeek for current pricing.
What is the GA50 used for?
The GA50 is designed for welding. It is used in automotive and manufacturing settings.
What is the payload capacity of the GA50?
The GA50 has a payload capacity of 50 kg and a reach of 2.04 m.
How much does the GA50 weigh?
The GA50 weighs 855 kg.
How many degrees of freedom does the GA50 have?
The GA50 has 6 degrees of freedom.
When was the GA50 released?
The GA50 was released in 2022.
