DESCRIPTION

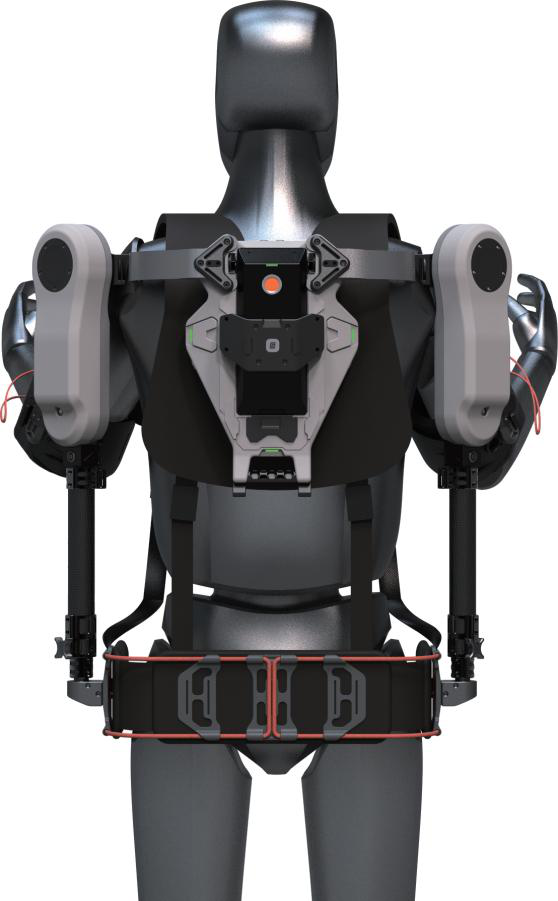

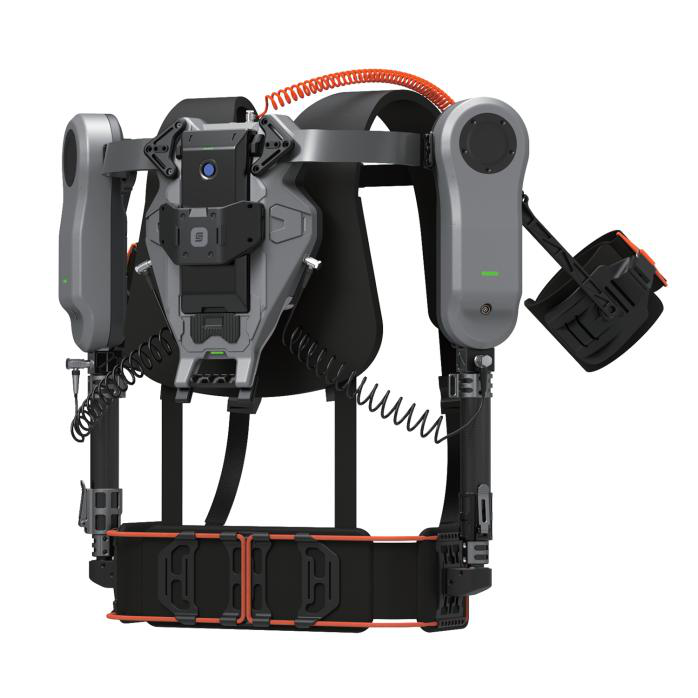

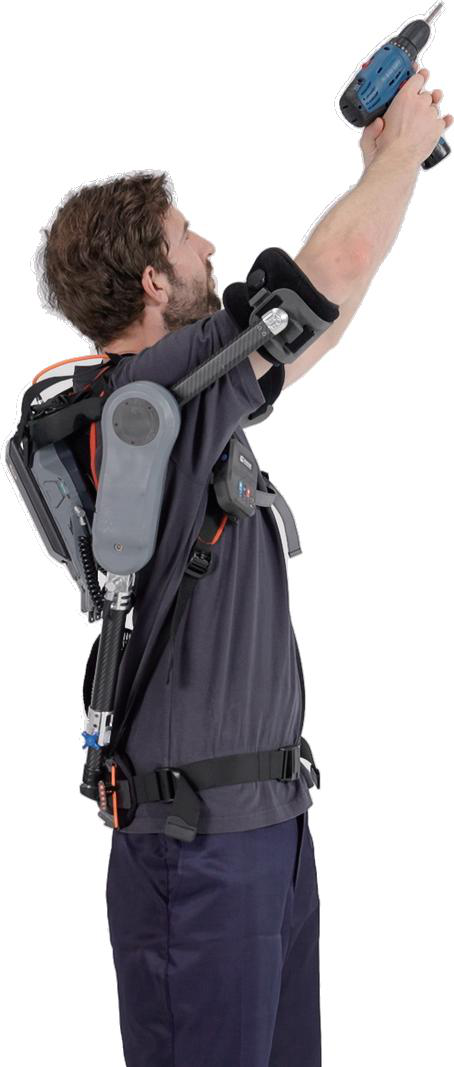

The FIT-U PRO is ULS Robotics' upper-limb exoskeleton, built for jobs done with the arms above the shoulders — the overhead work that wears out assembly and maintenance staff fastest. It splits into three co-operating systems, one for the upper limbs, one for the shoulders and an integrated controller tying them together, delivering electrical assistance to shoulders, arms and waist at once. ULS puts the reduction in labour burden at more than 50% and frames the payoff in staffing terms as much as ergonomic ones: less turnover, higher throughput. It runs on a self-developed motion control card with matching drive units, weighs 3.9 kg, and adjusts from 600 to 680 mm in length to fit different wearers. Bilateral assistance is rated at 10 to 20 kg across eight degrees of freedom, and a quick-detachable 36 V lithium battery supports three to eight hours. Nylon engineering plastic, aviation aluminium alloy and carbon fibre keep the weight down. ULS also intends the device to accumulate data, so that over time employers can analyse worker efficiency and health.
FEATURES
- Three co-operating systems — upper limb, shoulder and integrated control — assisting shoulders, arms and waist together
- reduces wearer labour burden by more than 50%
- 8 degrees of freedom with independent bilateral arm assistance rated 10-20 kg
- 3.9 kg, adjustable in length from 600 to 680 mm
- quick-detachable 36 V lithium battery for 3-8 hours of use
- self-developed motion control card with matching drive units
- impedance control with position sensors and an integrated drive unit
- nylon engineering plastic, aviation aluminium alloy and carbon fibre construction
- 20 °C to 50 °C ambient range
- data collection intended to support later efficiency and health analysis.
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 3.9 kg |
|---|---|
| Dimensions | L 680 mm × W 572 mm × H 220 mm |
| Payload | 20 kg |
| Mobility | |
| Movement Type | Hybrid |
| Degrees of Freedom | 8 |
| Manipulation | Low |
| Environment | Industrial, -20 °C to 50 °C, -20°C to 50°C |
| Actuators | Self-developed motion control card with matching drive units; integrated drive unit with impedance control and position sensors; 8 DoF with independent bilateral arm assistance |
| Power | |
| Battery Life | 3-8 h |
| Sensing & Compute | |
| Sensors | position sensors, bottom sensor, dual feedback sensors |
| Software / AI | Impedance control with adaptive intelligent motion control |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 3.9 kg |
|---|---|
| Dimensions | L 680 mm × W 572 mm × H 220 mm |
| Payload | 20 kg |
| Mobility | |
| Movement Type | Hybrid |
| Degrees of Freedom | 8 |
| Manipulation | Low |
| Environment | Industrial, -20 °C to 50 °C, -20°C to 50°C |
| Actuators | Self-developed motion control card with matching drive units; integrated drive unit with impedance control and position sensors; 8 DoF with independent bilateral arm assistance |
| Power | |
| Battery Life | 3-8 h |
| Sensing & Compute | |
| Sensors | position sensors, bottom sensor, dual feedback sensors |
| Software / AI | Impedance control with adaptive intelligent motion control |
Images
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the FIT-U PRO?
The FIT-U PRO is ULS Robotics' upper-limb exoskeleton, built for jobs done with the arms above the shoulders — the overhead work that wears out assembly and maintenance staff fastest.
Who makes the FIT-U PRO?
The FIT-U PRO is made by ULS Robotics, a robotics company based in China.
How much does the FIT-U PRO cost?
ULS Robotics has not publicly announced pricing for the FIT-U PRO. You can enquire through RobotAIGeek for current pricing.
What is the FIT-U PRO used for?
The FIT-U PRO is designed for assistance, overhead assembly and maintenance, heavy physical labour positions, and airport ground services. It is used in energy, mining, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the FIT-U PRO?
The FIT-U PRO has a payload capacity of 20 kg.
How much does the FIT-U PRO weigh?
The FIT-U PRO weighs 3.9 kg.
What is the battery life of the FIT-U PRO?
The FIT-U PRO runs for 3-8 h on a charge.
How many degrees of freedom does the FIT-U PRO have?
The FIT-U PRO has 8 degrees of freedom.
