EPL80

YASKAWA Electric

Industrial-Robot Japan

JapanDiscontinued

★Not rated yet

Compare

Sources:

web.archive.org

Industries:

Warehouse & Logistics ManufacturingChemicals, food and beverage, consumer goods packaging

Uses:

Material-Handling palletizingCase packing

Price:

Not announced

DESCRIPTION

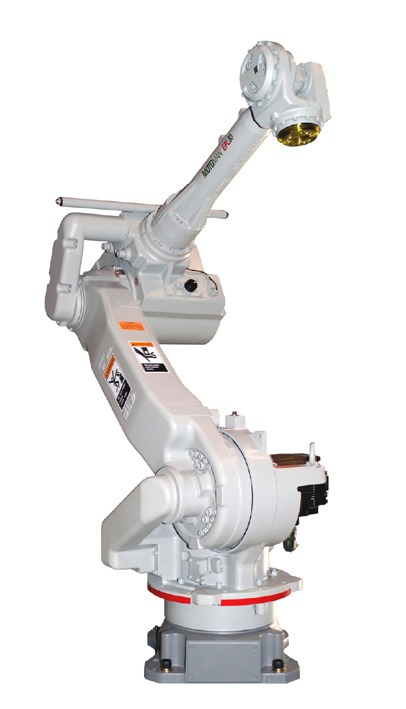

EPL80 is an Industrial-Robot from YASKAWA Electric. It is built for Material-Handling, palletizing, Case packing. Key figures: 80 kg payload, 2046 mm reach, 5 degrees of freedom.

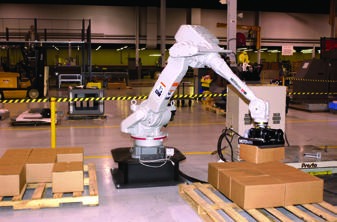

The Motoman EPL80 was Motoman's 5-axis 'Expert Palletizing' robot, a high-speed, compact arm designed specifically for palletizing with an 80 kg payload, a 2,046 mm horizontal reach and a 3,194 mm vertical reach, repeating to 0.07 mm. Its 5-axis design uses no parallel links in the upper or lower arm, which removes interference zones inside its wide 360-degree work envelope, so one robot can serve several infeed conveyors and a pallet-build position from a small footprint. It ran on Motoman's NX100 controller, with a Windows CE colour touch-screen pendant, the INFORM III programming language, control of up to four robots, dual-channel safety with enhanced E-stop and speed monitoring, and Ethernet with DeviceNet, ControlNet, Profibus-DP and EtherNet/IP options; MotoSim EG off-line programming was optional. Internal air and user cabling ran to the tool. Recochem in Edmonton installed one in 2009 to case-pack and palletize 9.46-litre bottles in a cell no larger than the manual packing lines it replaced. The EPL80 has long since been replaced by the MPL80 and then the PL80.

FEATURES

5 axes, designed specifically for palletizing
80 kg payload
2,046 mm horizontal reach
3,194 mm vertical reach
0.07 mm repeatability
No parallel links, so no interference zones in the work envelope
Wide 360-degree envelope for several infeed conveyors and a pallet
Slim wrist and compact design for small end-of-line cells
Internal user air hose and electrical cable to the tool
NX100 controller: Windows CE touch-screen pendant, INFORM III, up to four robots
Dual-channel safety, enhanced E-stop, speed monitoring
ANSI/RIA R15.06-1999
Ethernet plus DeviceNet, ControlNet, Profibus-DP and EtherNet/IP options
MotoSim EG off-line programming (optional)

TECHNICAL SPECIFICATIONS

Physical
Payload	80 kg
Reach	2.05 m
Repeatability	±0.07 mm
Mobility
Movement Type	Stationary
Degrees of Freedom	5
Environment	Industrial: end-of-line palletizing
Actuators	AC servo motors (Sigma)
Sensing & Compute
Connectivity	Ethernet; DeviceNet, ControlNet, Profibus-DP, EtherNet/IP options
Software / AI	INFORM III programming language; MotoSim EG off-line programming (optional)

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

ROBOT FORUMS

Loading forums...

TECHNICAL SPECIFICATIONS

Physical
Payload	80 kg
Reach	2.05 m
Repeatability	±0.07 mm
Mobility
Movement Type	Stationary
Degrees of Freedom	5
Environment	Industrial: end-of-line palletizing
Actuators	AC servo motors (Sigma)
Sensing & Compute
Connectivity	Ethernet; DeviceNet, ControlNet, Profibus-DP, EtherNet/IP options
Software / AI	INFORM III programming language; MotoSim EG off-line programming (optional)

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

FREQUENTLY ASKED QUESTIONS

What is the EPL80?

Who makes the EPL80?

The EPL80 is made by YASKAWA Electric, a robotics company based in Japan.

How much does the EPL80 cost?

YASKAWA Electric has not publicly announced pricing for the EPL80. You can enquire through RobotAIGeek for current pricing.

What is the EPL80 used for?

The EPL80 is designed for material-handling, palletizing, and case packing. It is used in warehouse & logistics, manufacturing, and chemicals, food and beverage, consumer goods packaging settings.
