DESCRIPTION
Elf is a Mobile-Robots from Sanbot Innovation. It is built for Display, Guidance, Information. Key figures: 19 kg, 600 min runtime.
Sanbot Elf is Sanbot's intelligent service robot for retail, hospitality, healthcare, education and public-service settings. About 902 mm tall on a three-omni-wheel base, it talks with visitors using seven microphones with 360-degree sound localisation, recognises people with two RGB cameras and a 3D sensor, shows content on a 10.1-inch 1080p touchscreen and a built-in laser projector, and moves its head and arms to gesture; an open API and Android SDK let developers build their own applications on its cloud platform. Touch sensors on head, body and hands, human-presence sensors, a gyroscope, an electronic compass and 15 infrared obstacle sensors keep it aware of its surroundings. The 19 kg robot travels at up to 0.8 m/s, climbs 1.5 cm steps, runs about 10 hours on its 20 Ah lithium battery (over 24 hours on standby) and returns to a wall-mounted charging pile from up to 5 m away; it connects over dual-band Wi-Fi, Bluetooth 4.0 and ZigBee, runs on ROS and comes in white, gold, red and blue.
FEATURES
- Three omni-wheel base
- up to 0.8 m/s
- climbs 1.5 cm
- About 902 x 421 x 331 mm
- 19 kg
- Lithium battery 20 Ah
- about 10 h runtime
- standby over 24 h
- Auto-recharge to wall-mounted charging pile from 0-5 m
- 7 mics with 360-degree sound localisation
- 2 RGB cameras + 3D sensor
- 8 MP HD camera
- 10.1-inch 1080p touchscreen
- laser projector (1920 x 720, 60 Hz)
- Head 2 DOF (180 deg horizontal, 30 deg vertical)
- arms 1 DOF each (270 deg swing)
- Touch, human-presence, gyroscope, compass and 15 infrared obstacle sensors
- Wi-Fi 2.4/5 GHz, Bluetooth 4.0, ZigBee
- ROS 1.1
- open API and SDK
- 250 customisable atmosphere-light colours

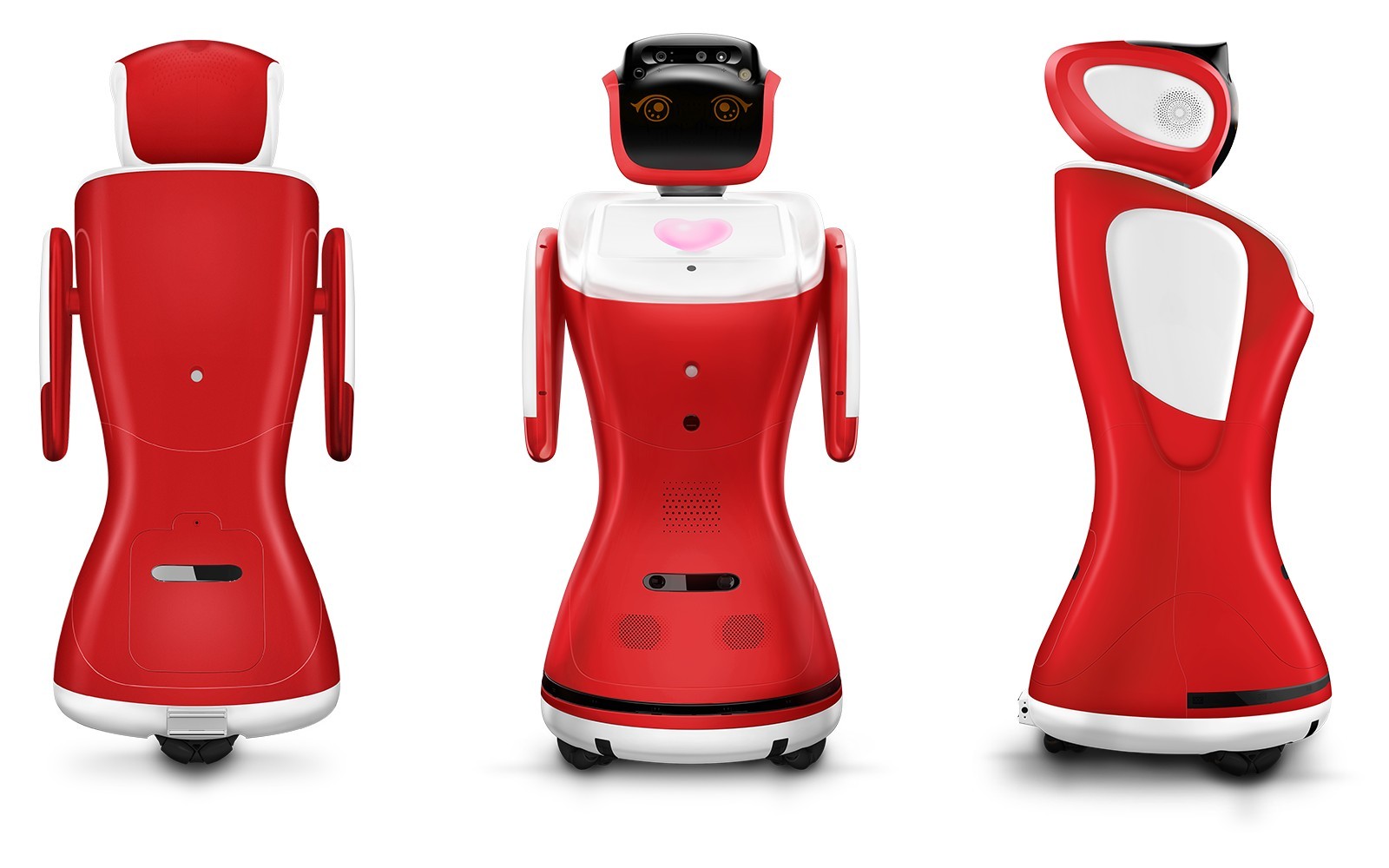

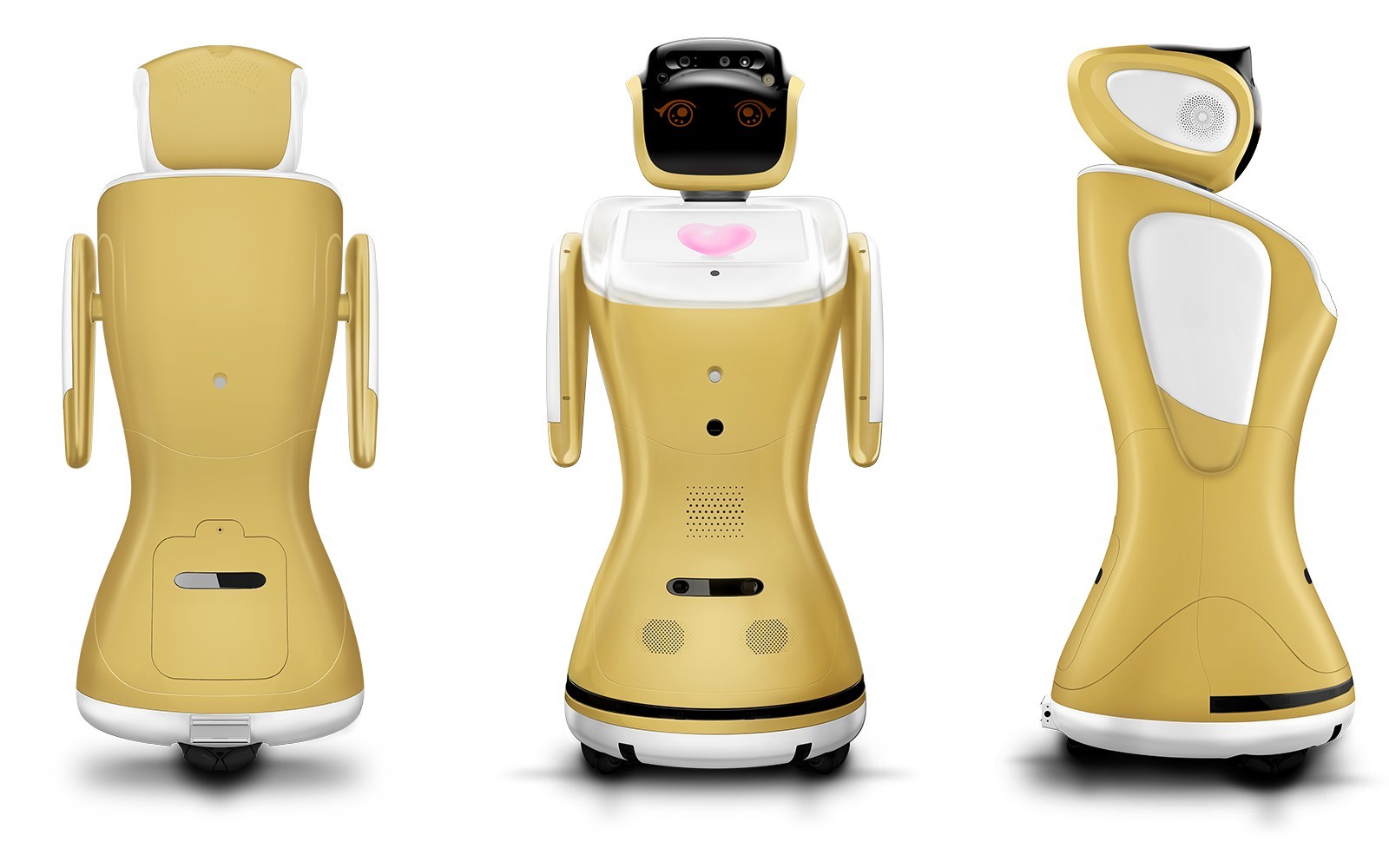

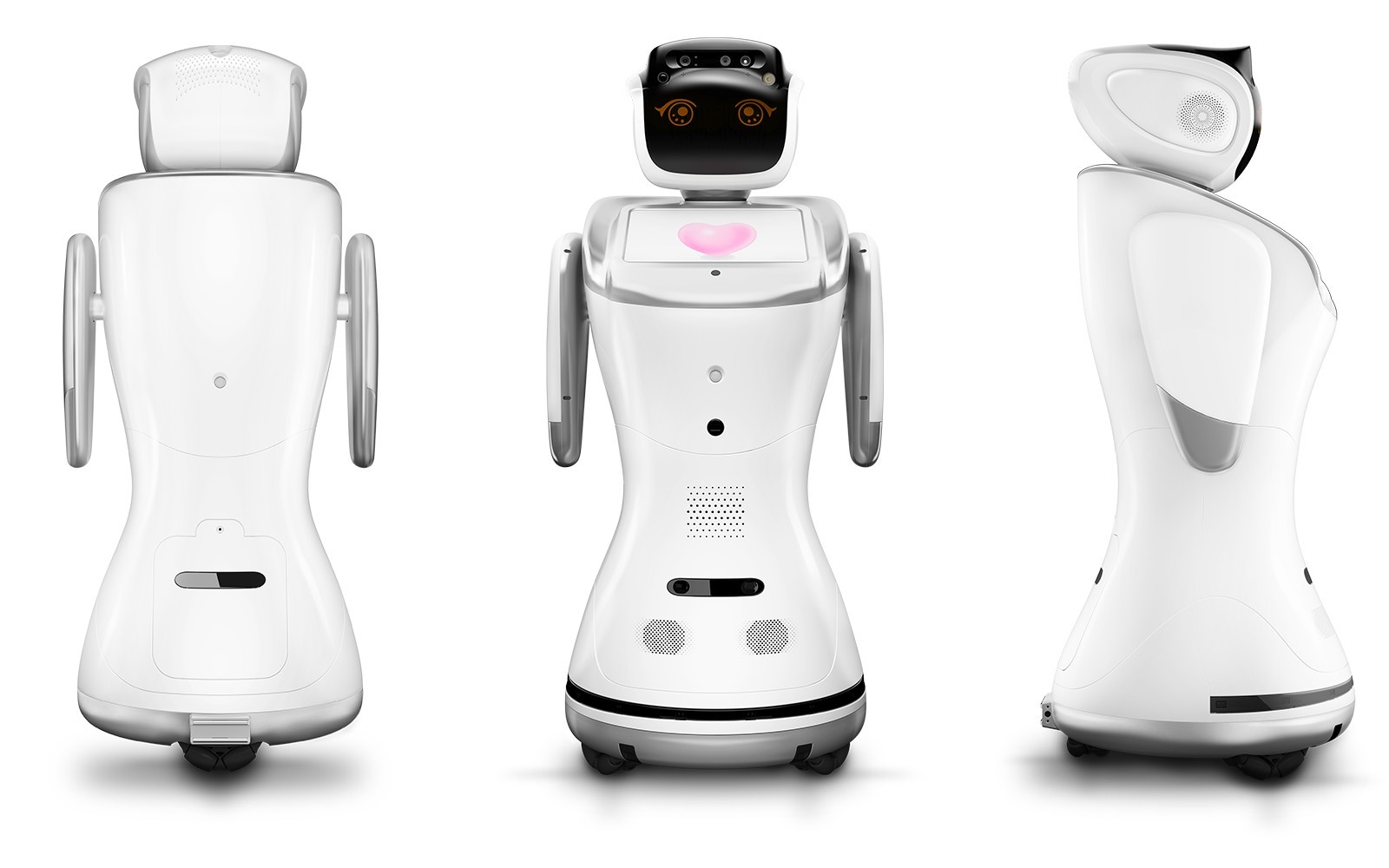

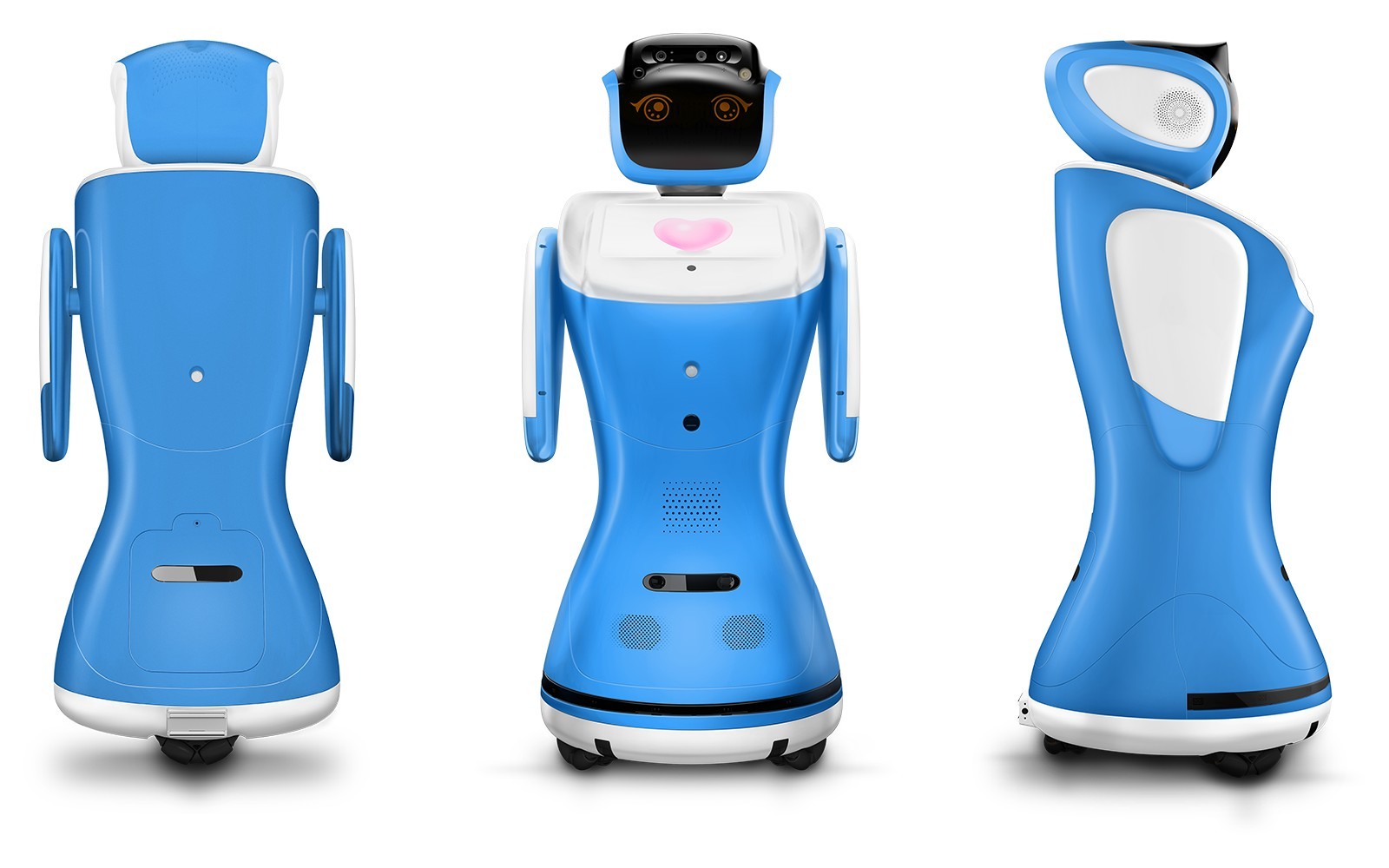

- white, gold, red or blue shells
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 19 kg |
|---|---|

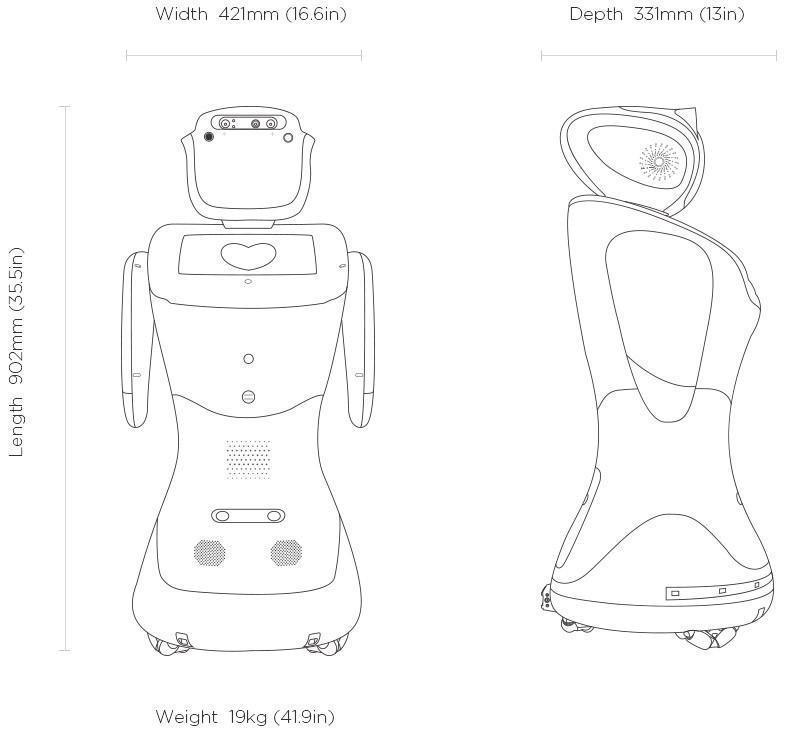

| Dimensions | L 331 mm × W 421 mm × H 902 mm |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 2.88 km/h |
| Environment | Indoor commercial spaces: hotels, banks, shops, hospitals, schools, public service halls |
| Power | |
| Battery Life | 600 min |
| Charging Type | Automatic return to wall-mounted charging pile (0-5 m range) |
| Sensing & Compute | |
| Sensors | 7 x microphone, 2 x RGB camera, 3D sensor, 8 MP HD camera, touch sensors, PIR human-presence sensors, gyroscope, electronic compass, 15 x infrared obstacle sensor |
| Connectivity | Wi-Fi 2.4/5 GHz, Bluetooth 4.0, ZigBee |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 19 kg |
|---|---|
| Dimensions | L 331 mm × W 421 mm × H 902 mm |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 2.88 km/h |
| Environment | Indoor commercial spaces: hotels, banks, shops, hospitals, schools, public service halls |
| Power | |
| Battery Life | 600 min |
| Charging Type | Automatic return to wall-mounted charging pile (0-5 m range) |
| Sensing & Compute | |
| Sensors | 7 x microphone, 2 x RGB camera, 3D sensor, 8 MP HD camera, touch sensors, PIR human-presence sensors, gyroscope, electronic compass, 15 x infrared obstacle sensor |
| Connectivity | Wi-Fi 2.4/5 GHz, Bluetooth 4.0, ZigBee |
Images
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Elf?
Sanbot Elf is Sanbot's intelligent service robot for retail, hospitality, healthcare, education and public-service settings. About 902 mm tall on a three-omni-wheel base, it talks with visitors using seven microphones with 360-degree sound localisation, recognises people with two RGB cameras and a 3D sensor, shows cont…
Who makes the Elf?
The Elf is made by Sanbot Innovation, a robotics company based in China.
How much does the Elf cost?
Sanbot Innovation has not publicly announced pricing for the Elf. You can enquire through RobotAIGeek for current pricing.
What is the Elf used for?
The Elf is designed for display, guidance, information, and marketing. It is used in commercial, government, education, and healthcare settings.
How much does the Elf weigh?
The Elf weighs 19 kg.
How fast is the Elf?
The Elf can move at speeds of up to 2.88 km/h.
What is the battery life of the Elf?
The Elf runs for about 600 minutes on a charge.
