DESCRIPTION

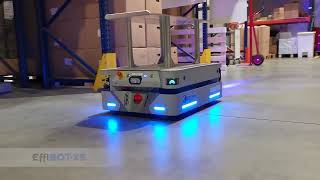

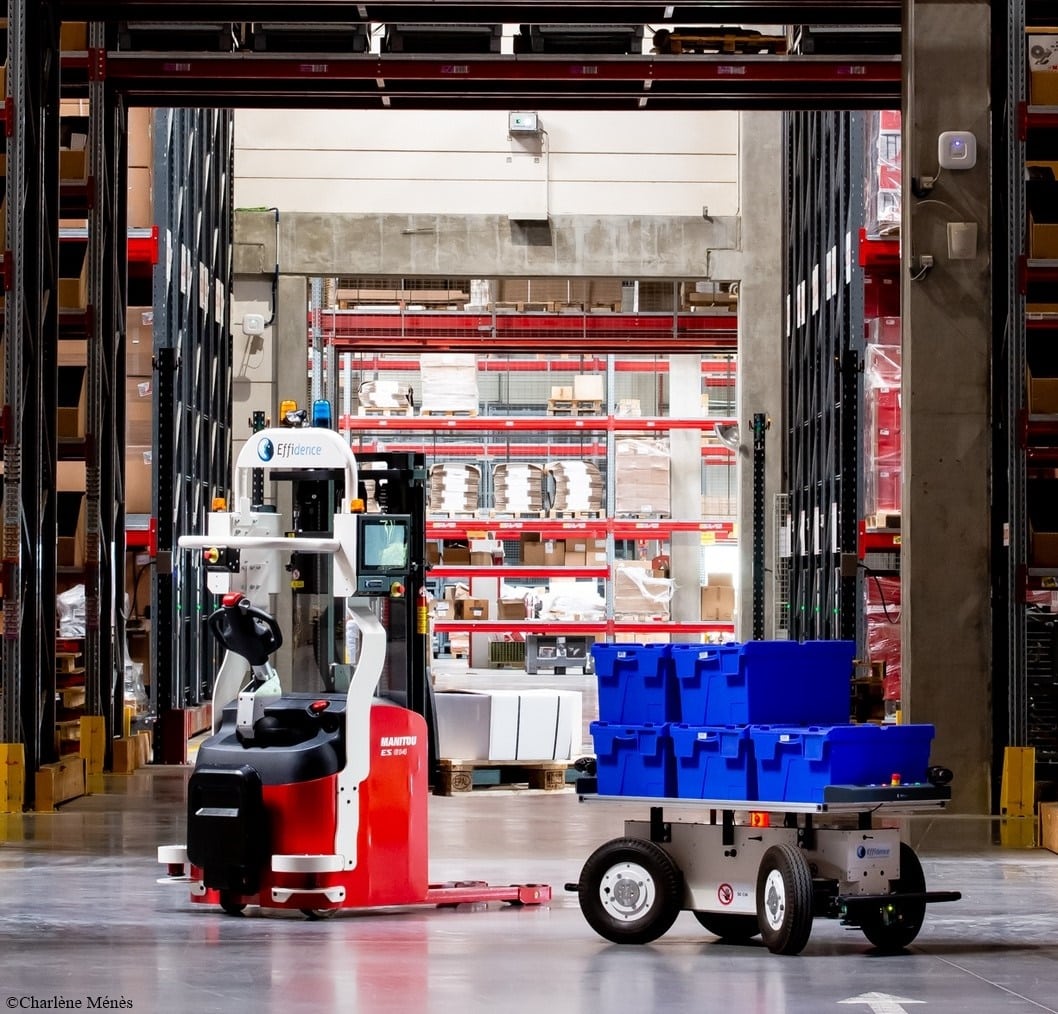

EffiBOT-XS is the compact member of Effidence's AMR range - a bi-directional hybrid robot that carries, grips or conveys a load depending on the equipment fitted. It handles up to 300 kg within an 800 x 580 x 300 mm footprint and travels at up to 7 km/h (2 m/s). Three interchangeable modules cover the main jobs: Lift-XS for carrying and lifting, 3D-CartGRIP XS for gripping, and Convey-LINK XS for conveying. As with the full-size EffiBOT, a Follow-me mode is available at the press of a console button. Outside applications that need person-following it transports loads entirely autonomously, taking destinations from the ERP. A 360-degree sensor set drives natural-environment navigation, and the robot complies with Machine Directive 2006/42/EC.
FEATURES
- Carries and lifts up to 300 kg
- Compact 800 x 580 x 300 mm footprint
- Bi-directional hybrid AMR
- Up to 7 km/h (2 m/s)
- Follow-me mode from a console button

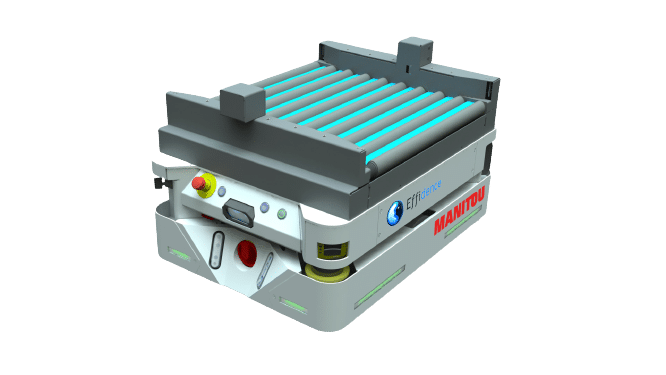

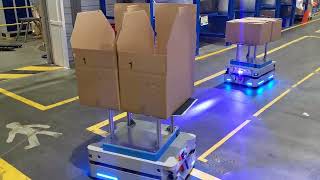

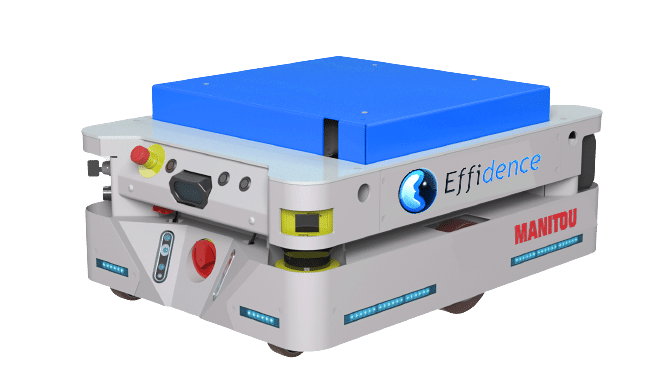

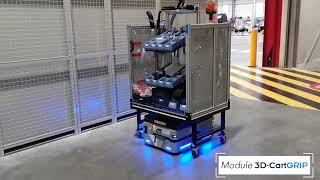

- Interchangeable modules: Lift-XS, 3D-CartGRIP XS, Convey-LINK XS
- Fully autonomous
- recovers destinations from the ERP
- 360-degree sensor coverage
- Natural-environment localisation, reinforceable in open areas
- Complies with Machine Directive 2006/42/EC
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 300 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Speed | 7 km/h |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 300 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Speed | 7 km/h |
Images
martti
martti
martti
martti
marttiImage Contributions
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the EffiBOT-XS?
EffiBOT-XS is the compact member of Effidence's AMR range - a bi-directional hybrid robot that carries, grips or conveys a load depending on the equipment fitted. It handles up to 300 kg within an 800 x 580 x 300 mm footprint and travels at up to 7 km/h (2 m/s).
Who makes the EffiBOT-XS?
The EffiBOT-XS is made by Effidence, a robotics company based in France.
How much does the EffiBOT-XS cost?
Effidence has not publicly announced pricing for the EffiBOT-XS. You can enquire through RobotAIGeek for current pricing.
What is the EffiBOT-XS used for?
The EffiBOT-XS is designed for picking and transport. It is used in warehouse & logistics settings.
What is the payload capacity of the EffiBOT-XS?
The EffiBOT-XS has a payload capacity of 300 kg.
How fast is the EffiBOT-XS?
The EffiBOT-XS can move at speeds of up to 7 km/h.
